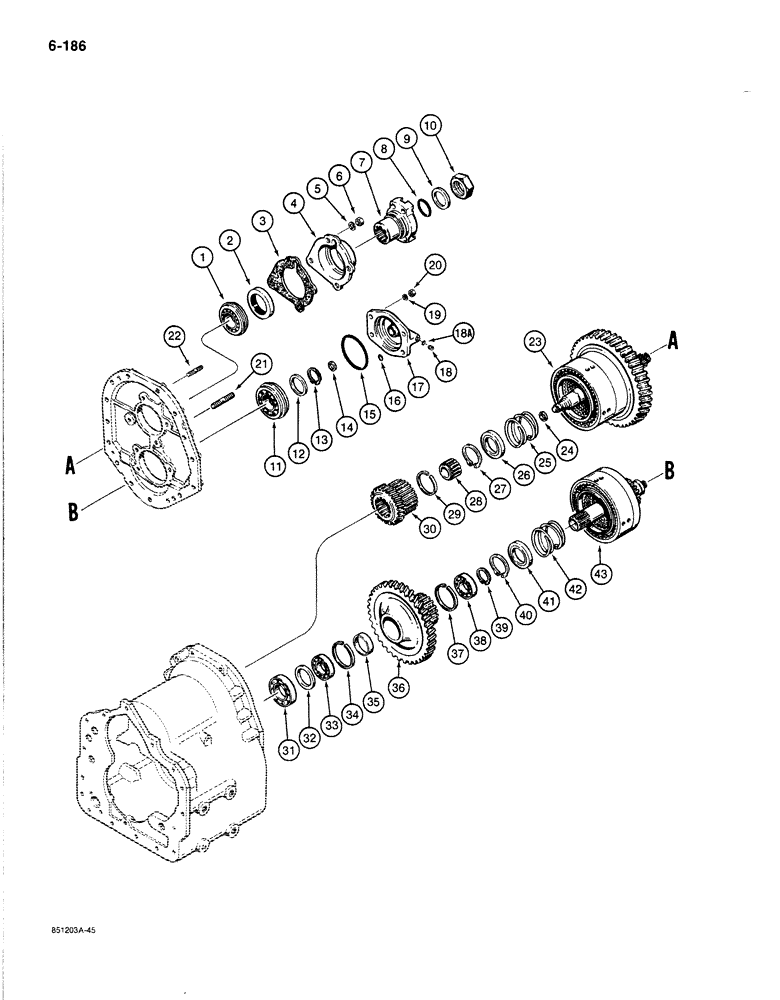

Запчасти Case 780C (6-186) - TRANSMISSION OUTPUT SHAFT, LOW, AND THIRD GEARS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - forward and reverse, see Figure 6-170 for transmission options, parts list Figures 6-170 - 6-190, Includes: Ref. 1 - 43

1шт.

1

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

rear, output shaft

1шт.

2

E114372

OIL SEAL,53.98mm ID x 79.55mm OD x 9.53mm Thk

oil, rear bearing cap

1шт.

3

N7206

GASKET

bearing cap

1шт.

4

N7207

BEARING CAP

output shaft rear bearing

1шт.

5

192-24

LOCK WASHER,9/16"

4шт.

6

129-126

NUT,9/16"-18, G8

hex, 9/16" - 12 NC, plated

4шт.

7

A19928

FLANGE

output

1шт.

8

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

flange

1шт.

9

A17938

WASHER

flange, large

1шт.

10

A55863

LOCK NUT

flange, special

1шт.

11

N7276

BALL BEARING,50mm ID x 110mm OD x 27mm W

rear, low speed shaft

1шт.

12

E114268

BEARING WASHER

rear bearing support

1шт.

13

E114334

CLIP

RING - rear bearing retainer

1шт.

14

E114360

RING,16.77mm ID x 19.47mm OD x 3.1mm Thk

piston, low shaft

1шт.

15

N8134

O-RING

rear bearing cap, large

1шт.

16

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

bearing cap, rear, small

1шт.

D142270

CAP

HOUSING ASSEMBLY - rear bearing, Includes: Ref. 17 - 18A

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - rear bearing

1шт.

18

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Includes Ref. 18A

1шт.

18a

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

Plug

1шт.

19

192-22

LOCK WASHER,7/16"

4шт.

20

425-117

NUT,7/16"-20, G5

4шт.

21

N7209

BEARING CAP

bearing cap

4шт.

22

N7210

STUD

output bearing cap, rear

4шт.

23

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - third, output shaft, parts list Figure 6-188

1шт.

24

E114360

RING,16.77mm ID x 19.47mm OD x 3.1mm Thk

piston, output shaft

1шт.

25

E114331

SPRING

piston return

1шт.

26

E114332

RETAINER

spring

1шт.

27

E114328

RING, SNAP

RING SNAP retaining, spring

1шт.

28

N7211

ROLLER CAGE BEARING,38.1mm ID x 47660mm OD x 25.4mm

pilot

1шт.

29

S117877

RING

retainer, third gear and hub

1шт.

30

N7382

HUB ASSY.

GEAR - third, 33 tooth, used on L111087 transmission, Includes: Ref. 30A

1шт.

30

N8418

GEAR WHEEL

third, 29 tooth, used on D140040 transmission, Includes: Ref. 30A

1шт.

30a

N13129

RING

oil retaining, gear, third, not shown

1шт.

The oil retaining ring is an internal part of the hub and gear and it is recommended that the ring should not be removed.

1шт.

31

E114340

BALL BEARING

front, low speed clutch shaft

1шт.

32

E114341

SPACER

front bearing

1шт.

33

S89657

BEARING

gear, low speed

1шт.

34

S89658

RING

locating, low speed gear bearing

1шт.

35

N7213

SPACER

low speed gear

1шт.

36

N7384

GEAR

HUB - low gear, 59 tooth, used on L111087 transmission, Includes: Ref. 36A

1шт.

36

N7214

GEAR

HUB - low gear, 53 tooth, used on D140040 transmission, Includes: Ref. 36A

1шт.

36a

N13129

RING

oil retaining, low gear hub, not shown

1шт.

The oil retaining ring is an internal part of the hub and gear and it is recommended that the ring should not be removed.

1шт.

37

S89658

RING

locating, bearing

1шт.

38

S89657

BEARING

low speed gear

1шт.

39

E114334

CLIP

RING - retaining, bearing

1шт.

40

E114328

RING, SNAP

RING SNAP spring retainer

1шт.

41

4114332

SPRING

RETAINER - spring

1шт.

42

E114331

SPRING

piston return

1шт.

43

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - low, parts list Figure 6-176

1шт.
