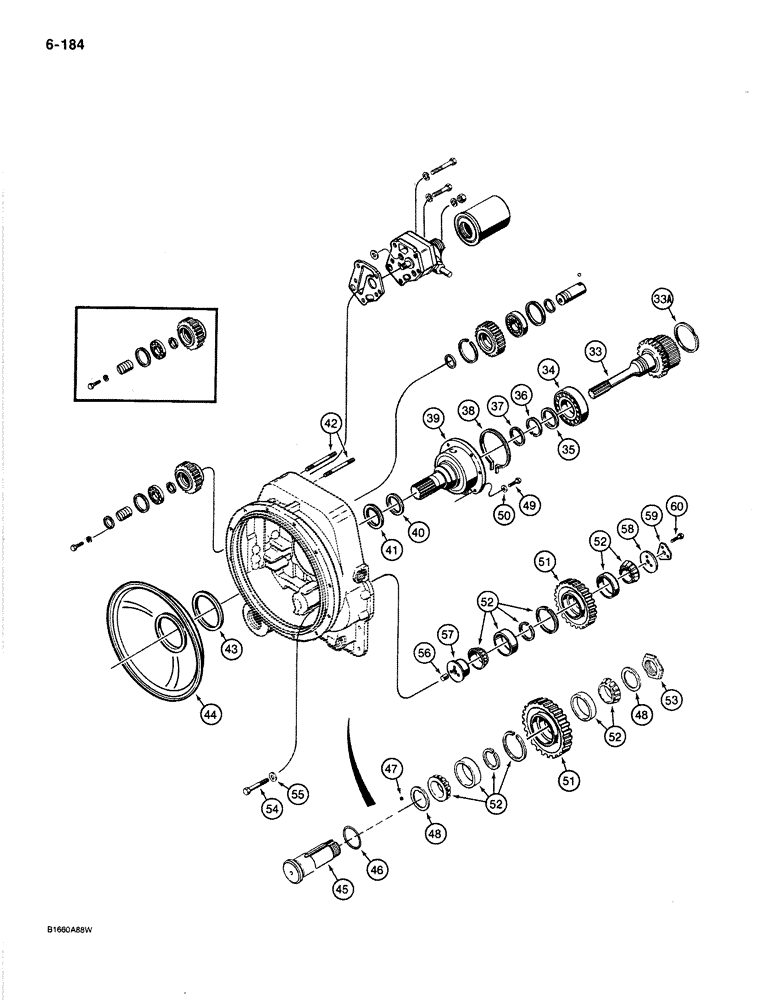

Запчасти Case 780C (6-184) - CHARGING PUMP AND REVERSE IDLER (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - forward and reverse, see Figure 6-170 for transmission options, parts list Figures 6-170 - 6-190, Includes: Ref. 33 - 59

1шт.

33

N7150

SHAFT

turbine and hub, Includes: Ref. 33A

1шт.

33a

N13129

RING

retaining, turbine and hub shaft

1шт.

The oil retaining ring is an internal part of the shaft and it is recommended that the ring should not be removed.

1шт.

34

N7486

BALL BEARING,1.9685" ID x 4.3307" OD x 1.063"

turbine shaft

1шт.

35

E114268

BEARING WASHER

bearing locating

1шт.

36

E104161

RING

bearing retaining

1шт.

37

A17901

SEAL

RING - piston

1шт.

38

E114266

RING

locating, bearing

1шт.

39

N8545

SUPPORT

stator

1шт.

40

D87245

RING

SPRING - piston ring expander

1шт.

41

N7152

RING

piston

1шт.

42

N7153

STUD

pump mounting

3шт.

43

D87224

OIL SEAL,101.6mm ID x 127.2mm OD x 7.92mm Thk

oil, baffle

1шт.

44

E114272

BAFFLE

housing

1шт.

45

D142275

SHAFT

reverse idler, if used

1шт.

46

D27878

O-RING,1.609" ID x 1.887" OD

idler shaft, if used

1шт.

47

211-208

BALL,5/16" Dia

5/16", grade 25, chrome alloy steel, if used

1шт.

48

D142277

PLATE ASSY.

thrust, if used

2шт.

49

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

50

192-21

LOCK WASHER,3/8"

6шт.

51

N7155

GEAR

reverse idler

1шт.

52

N7190

BEARING ASSY,45.24mm ID x 77.81mm OD x 44.67mm W

reverse idler gear, matched parts not serviced separately

1шт.

53

D142278

BEARING LOCK NUT

special, if used

1шт.

54

28-744

BOLT,Hex, 7/16" - 20 x 2-3/4", Gr 8

hex head, 7/16" - 20 NF x 2-3/4", grade 8, if used

3шт.

55

192-22

LOCK WASHER,7/16"

If used

3шт.

56

E114275

PIN

shaft, reverse idler, if used

1шт.

57

N7154

SHAFT

reverse idler, if used

1шт.

58

E114278

PLATE

retaining, reverse idler gear, if used

1шт.

59

E114279

PLATE ASSY.

BOLT - hex head, 7/16" - 20 NF x 1", grade 8, if used

3шт.
