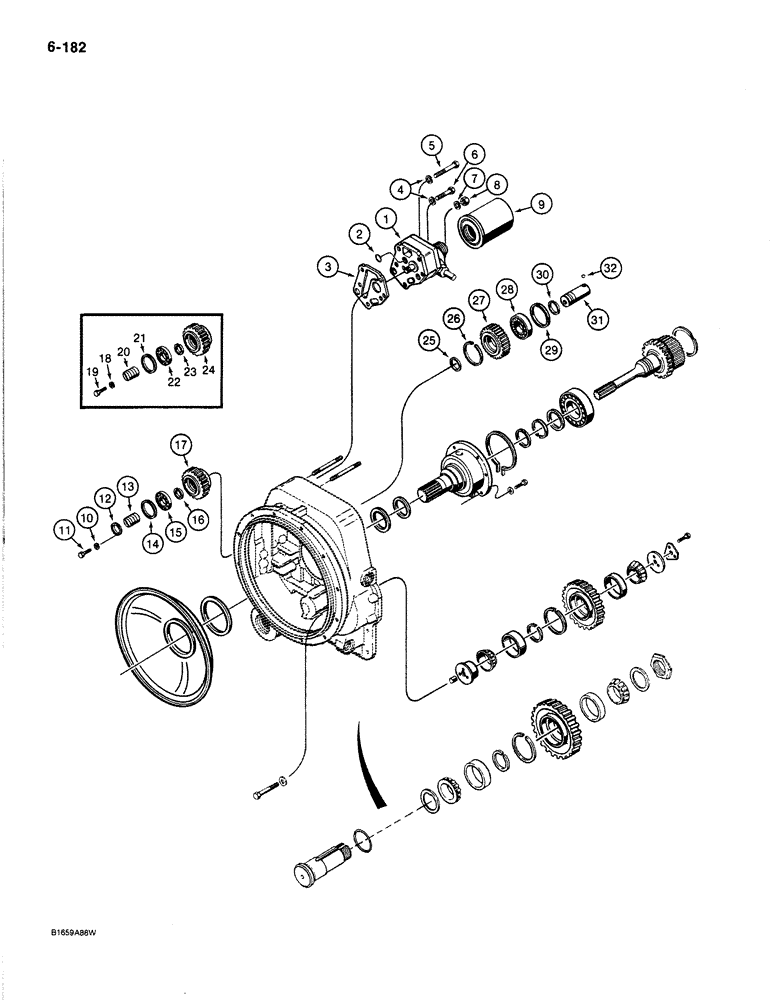

Запчасти Case 780C (6-182) - CHARGING PUMP AND REVERSE IDLER (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - forward and reverse, see Figure 6-170 for transmission options, parts list Figures 6-170 - 6-190, Includes: Ref. 1 - 32

1шт.

1

D87252

PUMP

charging, transmission

1шт.

2

E114251

O-RING

charging pump

1шт.

3

E114250

GASKET

charging pump to converter housing

1шт.

4

192-22

LOCK WASHER,7/16"

2шт.

5

113-352

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

1шт.

6

113-321

BOLT,Hex, 7/16" - 14 x 4", Gr 5

2шт.

7

192-22

LOCK WASHER,7/16"

Pump mounting stud

3шт.

8

425-117

NUT,7/16"-20, G5

Pump mounting stud, plated

3шт.

9

D87214

FILTER

charging pump

1шт.

10

192-21

LOCK WASHER,3/8"

2шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12

E114258

RING

bearing locating

1шт.

13

E114259

SUPPORT

pump drive bearing

1шт.

14

L30725

RING

bearing retaining

1шт.

15

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

pump drive gear

1шт.

16

E114258

RING

bearing locating

1шт.

17

N7147

GEAR

pump drive

1шт.

18

192-21

LOCK WASHER,3/8"

2шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

20

E114259

SUPPORT

auxiliary pump drive bearing

1шт.

21

E114261

RING

bearing retaining

1шт.

22

N7254

BALL BEARING,35 mm ID x 71.998 mm OD x 17 mm

pump drive gear

1шт.

23

E114258

RING

bearing locating

1шт.

24

N7203

GEAR

auxiliary pump drive

1шт.

25

E114258

RING

bearing locating, idler gear, small

1шт.

26

S89658

RING

bearing locating, idler gear, large

1шт.

27

N7148

GEAR

pump drive idler

1шт.

28

A26537

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

idler stub shaft

1шт.

29

S89658

RING

bearing retaining

1шт.

30

E114258

RING

bearing locating

1шт.

31

N7149

SHAFT

stub, idler gear

1шт.

32

211-206

BALL,1/4" Dia

1/4", grade 25, chromer alloy, lock, stub shaft

1шт.
