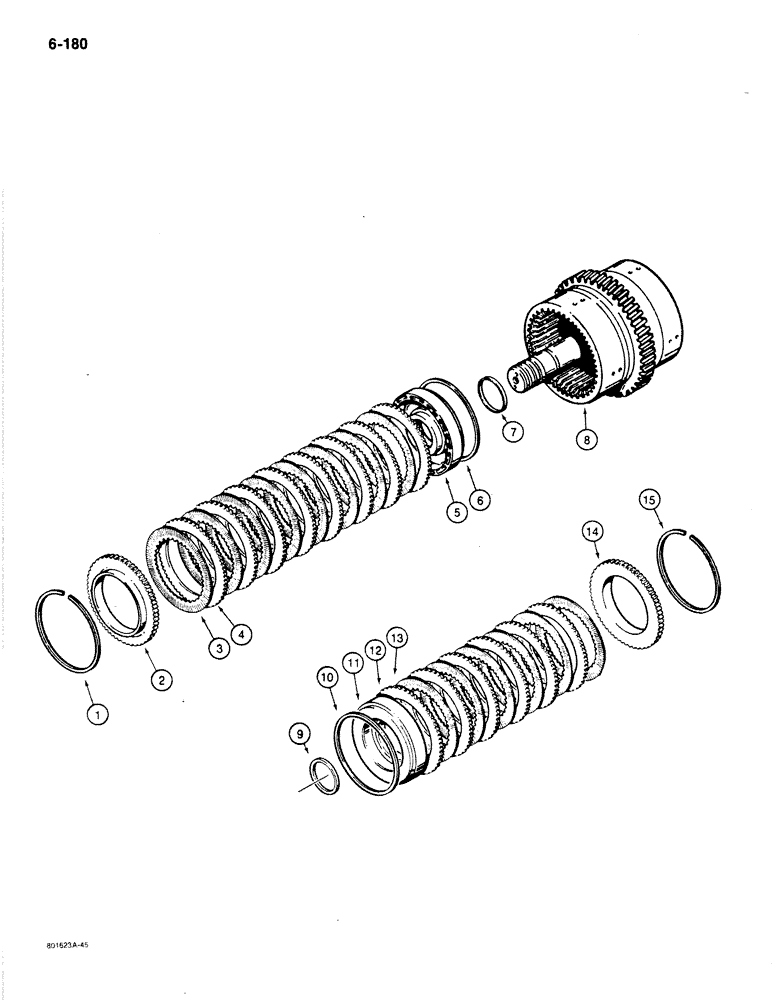

Запчасти Case 780C (6-180) - TRANSMISSION REVERSE AND SECOND CLUTCH ASSEMBLY (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - forward and reverse, see Figure 6-170 for transmission options, parts list Figures 6-170 - 6-190, Includes: Ref. 1 - 15

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - reverse and second, Includes: Ref. 1 - 15

1шт.

1

E114380

RING, SNAP

RING SNAP backing plate

1шт.

2

E114381

PLATE

GEAR - backing, clutch disc

1шт.

3

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

clutch, friction, inner teeth

8шт.

4

E114383

CLUTCH DISC

CLUTCH DISK DISC - metal, outer teeth

8шт.

5

E114384

PISTON

clutch

1шт.

6

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch

1шт.

7

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

piston, inner clutch

1шт.

8

N13638

DRUM

includes shaft, reverse and second

1шт.

9

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

piston, inner clutch

1шт.

10

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch

1шт.

11

E114392

PISTON

clutch

1шт.

12

E114383

CLUTCH DISC

CLUTCH DISK DISC - metal, outer teeth

6шт.

13

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

clutch, friction, inner teeth

6шт.

14

E114381

PLATE

GEAR - backing, clutch disc

1шт.

15

E114380

RING, SNAP

RING SNAP backing plate

1шт.
