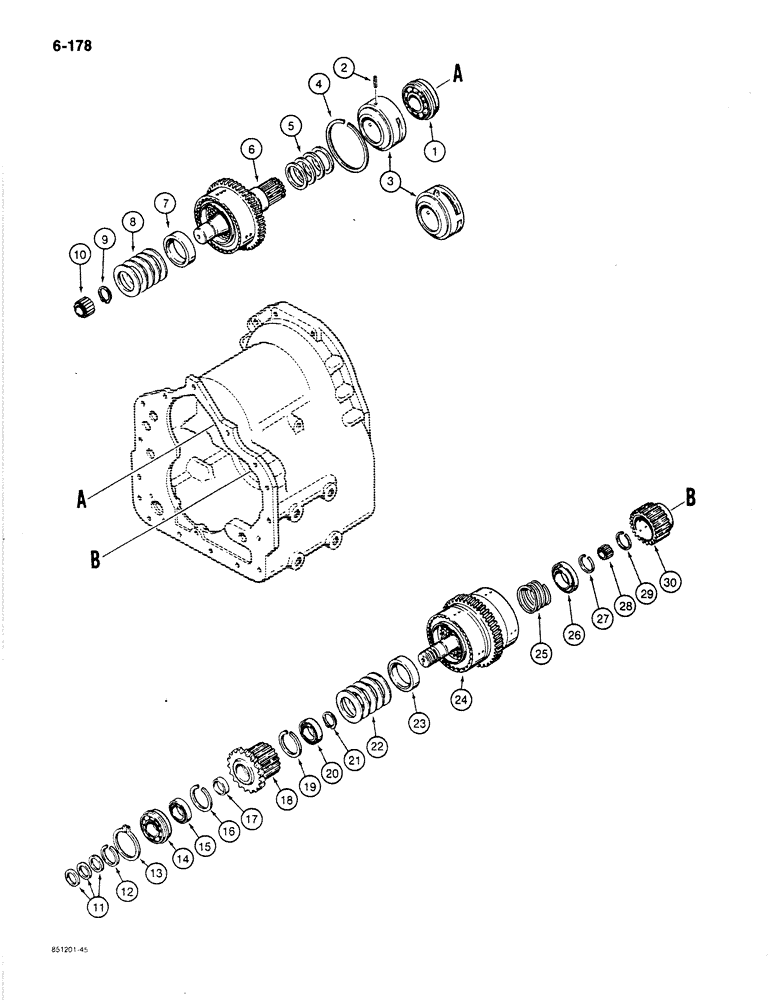

Запчасти Case 780C (6-178) - TRANSMISSION FORWARD, REVERSE, AND SECOND GEARS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - forward and reverse, see Figure 6-170 for transmission options, parts list Figures 6-170 - 6-190, Includes: Ref. 1 - 31

1шт.

1

N9442

BALL BEARING

rear, forward shaft

1шт.

2

E114357

AXLE PIN

roll, sleeve, if used

1шт.

3

E114356

BUSHING

SLEEVE - piston ring, may be a sleeve with a hole for use with Ref. 2 roll pin or a formed sleeve with a tab in place of the roll pin setup

1шт.

4

E114355

RING

retainer, piston ring sleeve

1шт.

5

A55824

SEAL

RING - piston, forward shaft

4шт.

6

NSS

NOT SOLD SEPARAT

DRUM ASSEMBLY - includes shaft, forward, parts list Figure 6-176

1шт.

7

N7215

SPACER

piston return spring

1шт.

8

D87249

SPRING

Belleville, piston return

5шт.

9

D87257

RING

snap, spring retainer

1шт.

10

E114339

NEEDLE BEARING,44.44mm ID x 54.02mm OD x 19.05mm W

forward pilot shaft

1шт.

11

A17925

SPRING

RING - piston, reverse and second shaft

3шт.

12

L33518

RING

retainer, front bearing

1шт.

13

S89652

RING

snap, front bearing

1шт.

14

S89654

BALL BEARING,40mm ID x 90mm OD x 23mm W

front, shaft, reverse and second

1шт.

15

A28236

BALL BEARING,1.5743" ID x 2.6772" OD x 0.5906"

gear, clutch driven

1шт.

16

E114325

RING, SNAP

RING SNAP retainer, bearing

1шт.

17

E114326

SPACER

bearing, clutch driven gear

1шт.

18

N7270

GEAR

reverse clutch, Includes: Ref. 18A

1шт.

18a

N13129

RING

oil retaining, reverse clutch gear, not shown

1шт.

The oil retaining ring is an internal part of the gear and it is recommended that the ring should not be removed.

1шт.

19

E114325

RING, SNAP

RING SNAP retainer, bearing

1шт.

20

L33513

BALL BEARING,1.6748" ID x 2.6772" OD x 0.5906"

gear, clutch driven

1шт.

21

D87257

RING

snap, spring retainer

1шт.

22

D87249

SPRING

Belleville, piston return

5шт.

23

N7215

SPACER

spring, piston return

1шт.

24

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - reverse and second, parts list Figure 6-180

1шт.

25

E114331

SPRING

piston return

1шт.

26

E114332

RETAINER

spring

1шт.

27

E114328

RING, SNAP

RING SNAP spring retainer

1шт.

28

N7216

NEEDLE BEARING,1.125" ID x 1.5012" OD x 1"

rear, shaft, reverse and second

1шт.

29

E114334

CLIP

RING - retainer, second clutch disc hub

1шт.

30

N8749

GEAR

second clutch disc hub, Includes: Ref. 31

1шт.

31

N13129

RING

oil retaining, second clutch disc hub gear, not shown

1шт.

The oil retaining ring is an internal part of the gear and it is recommended that the ring should not be removed.

1шт.
