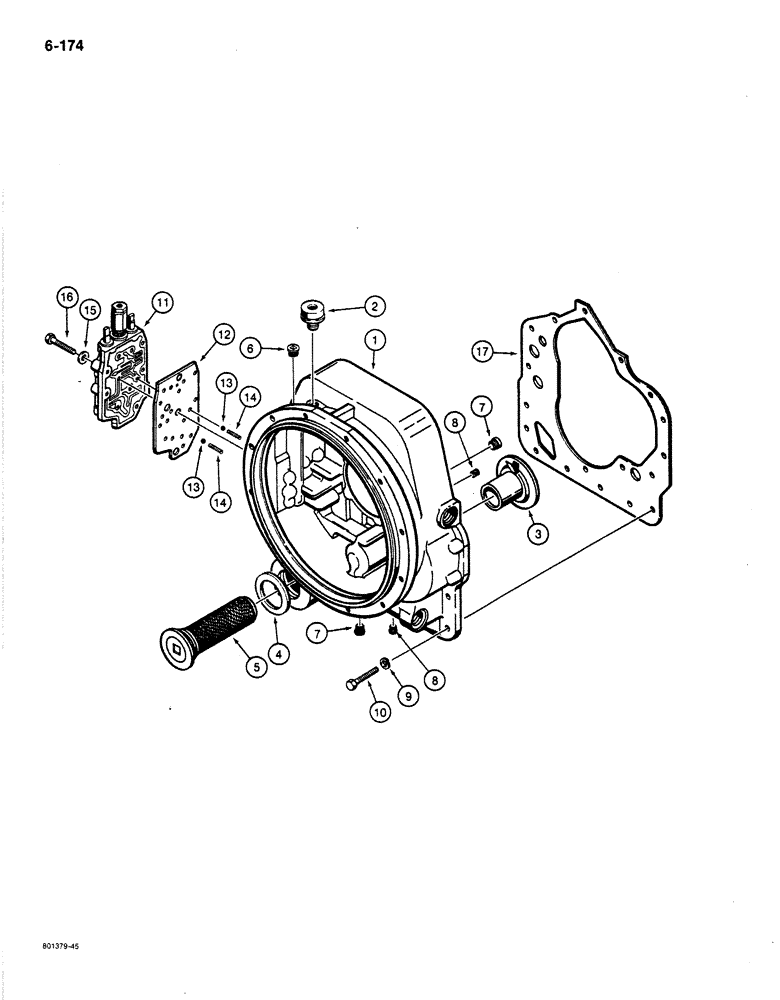

Запчасти Case 780C (6-174) - TORQUE CONVERTER HOUSING AND CONTROL VALVE (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - forward and reverse, see Figure 6-170 for transmission options, parts list Figures 6-170 - 6-190, Includes: Ref. 1 - 17

1шт.

1

N7135

HOUSING

SPARE PART torque converter, used with N7154 reverse idler shaft, order D142269 housing and reference numbers 45 - 48 and 53 in Figure 6-184

1шт.

1

D142269

HOUSING

SPARE PART torque converter, used with D142275 reverse idler shaft, see Figure 6-184

1шт.

2

N7134

BREATHER

air, torque converter

1шт.

3

E114312

SLEEVE

torque converter housing

1шт.

4

L30039

GASKET,46.83mm ID x 58.74mm OD x 3.17mm Thk

screen

1шт.

5

L33482

FILTER SCREEN

1шт.

6

S117872

PLUG

1/4", special, torque converter housing

1шт.

7

221-844

PLUG,Hex Soc, 1/2"-14

2шт.

8

221-849

PLUG,Hex Soc, 1/8"-27

hex socket head, 1/8" NPT

2шт.

9

192-22

LOCK WASHER,7/16"

16шт.

10

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

16шт.

11

N8879

LOCK VALVE

ASSEMBLY - forward and reverse, parts list Figure 6-191

1шт.

12

E114308

GASKET

control valve

1шт.

13

211-210

BALL,3/8" Dia

3/8", grade 25, chrome alloy, steel

2шт.

14

E114309

SPRING

detent

2шт.

15

192-21

LOCK WASHER,3/8"

9шт.

16

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

9шт.

17

D87221

GASKET

torque converter, Serial Range: housing-transmission

1шт.
