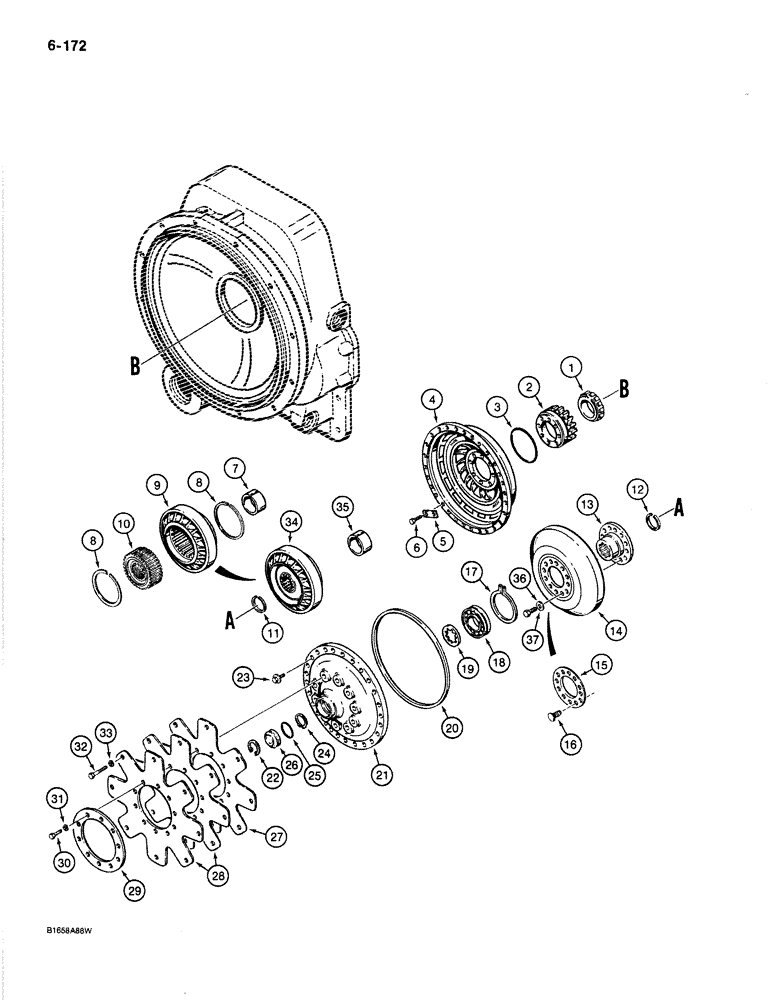

Запчасти Case 780C (6-172) - TRANSMISSION IMPELLER, TURBINE, AND FLEX PLATE (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - forward and reverse, see Figure 6-170 for transmission options, parts list Figures 6-170 - 6-190, Includes: Ref. 1 - 31

1шт.

1

N7257

BEARING, ROLLER, CYL,45mm ID x 74.94mm OD x 18.99mm

impeller hub gear

1шт.

2

N7191

GEAR

impeller hub

1шт.

3

E114281

O-RING,3.63mm Thk x 92.89mm ID, 75 Duro

impeller hub

1шт.

4

N7192

IMPELLER

torque converter

1шт.

5

E114283

LOCK

TAB -, Serial Range: impeller-hub

4шт.

6

28-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 8

hex head, 3/8" - 24 NF x 3/4", grade 8

8шт.

7

N14257

SPACER

vane, used with N7686 clutch, 1-1/16" long

1шт.

8

N7262

RING, SNAP

RING SNAP freewheel outer race, used with N7686 clutch

2шт.

9

N7377

MEMBER

STATOR - converter, used with N7686 clutch

1шт.

10

N7686

CLUTCH ASSEMBLY

freewheel

1шт.

11

E114286

CIRCLIP

retaining, bearing, small

1шт.

12

E114288

RING

ASSEMBLY - forward and reverse, parts list Figure 6-191

1шт.

13

N7378

BRACKET

HUB - turbine

1шт.

14

N7379

TURBINE

shift

1шт.

15

D142273

WASHER

retainer, turbine to hub, if used

1шт.

16

D142272

LOCK BOLT,Locking, Hex, 3/8" - 24 x 3/4", Gr 8

special, turbine to hub, if used

12шт.

17

E114290

RING

locating, hub bearing

1шт.

18

E114291

BALL BEARING

turbine hub

1шт.

19

E114291

BALL BEARING

bearing retaining

1шт.

20

T42352

SEALING RING,Square, 2.69mm Thk x 64.52mm ID

impeller to cover

1шт.

N14131

COVER

ASSEMBLY - impeller, Includes: Ref. 21 - 22

1шт.

21

NSS

NOT SOLD SEPARAT

COVER - impeller

1шт.

22

K621779

SNAP RING,1.688, Int, #168

1.688", Int, #168, bore plug

1шт.

23

D58177

CAPTIVE WASHER SCREW,3/8" - 16 x 1"

hex head, 3/8" - 16 NC x 1", special

24шт.

24

E114288

RING

snap, turbine retaining

1шт.

25

A62193

O-RING,1.424" ID x 1.63" OD

impeller cover, bore plug

1шт.

26

E114296

PLUG

bore

1шт.

D142271

KIT

flex plate, drive, Includes: Ref. 27 - 31

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - flex, drive, threaded bolt holes

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - flex, drive

2шт.

29

E114300

PLATE

RING - flex

1шт.

30

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

31

192-21

LOCK WASHER,3/8"

10шт.

32

114-204

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

8шт.

33

192-21

LOCK WASHER,3/8"

8шт.

34

N7688

STATOR

HUB - impeller, with fixed stator, may be converted to free wheeling stator by ordering reference numbers 7 - 10 above

1шт.

35

N7687

SPACER

vane, used with N7688 hub, 1-3/8" long

1шт.

36

A18033

SCREW

hex head, 3/8" - 24 NF x 1-3/4", if used

12шт.

37

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, 3/8", hardened, plated, if used

12шт.
