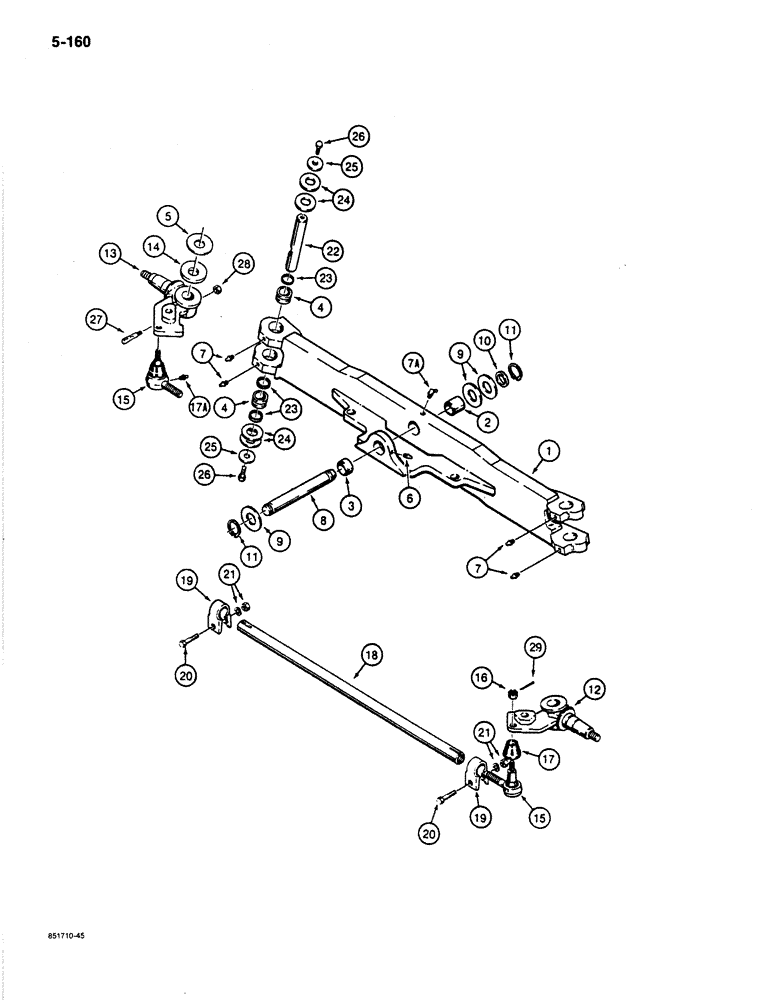

Запчасти Case 780C (5-160) - FRONT AXLE, SPINDLES, AND TIE ROD (05) - STEERING

1

L109624

AXLE

ASSEMBLY - front steering, Includes: Ref. 2 - 5

1шт.

2

L109416

BUSHING

axle to chassis, front

1шт.

3

L109415

BUSHING

axle to chassis, rear

1шт.

4

L109617

BUSHING

steering arm pin

4шт.

5

L109621

SHIM,.25" Thk

Thrust washer

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

Special short

4шт.

7a

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Special short

1шт.

8

L101397

SHAFT

PIN - pivot, Serial Range: axle-chassis

1шт.

9

D37449

SHIM,.0747" Thk

Axle to chassis

1шт.

10

195-2168

WASHER,2 1/16" x 3" x .109"

flat, 2", special, plated

1шт.

11

D26919

SNAP RING,#200, Ext

2шт.

12

L109622

SPINDLE

ARM - steering, right-hand, Includes: Ref. 14 - 21

1шт.

13

L109623

SPINDLE

ARM - steering, left-hand, Includes: Ref. 14 - 21

1шт.

14

L109621

SHIM,.25" Thk

Thrust washer, Used with L109622 and L109623 steering arms

1шт.

L101306

ROD

ASSEMBLY - tie, front steering

1шт.

N7373

END

JOINT ASSEMBLY - ball, tie rod to spindle, left-hand, Includes: Ref. 15 - 17

1шт.

N7376

END ASSY.

JOINT ASSEMBLY - ball, tie rod to spindle, right-hand, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

JOINT - ball, tie rod

1шт.

16

129-610

SLOTTED NUT,5/8"-18, G5

1шт.

17

A31186

BOOT

SEAL - dust cover

1шт.

17a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

N7374

TUBE

tie rod

1шт.

N7375

CLAMP

ASSEMBLY, Includes: Ref. 19 - 21

2шт.

19

NSS

NOT SOLD SEPARAT

CLAMP - ball joint retaining

1шт.

20

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

21

230-41110

LOCK NUT,5/8"-11, GA

Includes lock washer

1шт.

22

L109616

PIN

steering arm

2шт.

23

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

SEAL - steering arm pin

6шт.

24

195-2178

WASHER,2 5/16" x 3" x .134"

flat, 2-1/4", plated, used as a spacer

1шт.

25

195-2270

WASHER,13/16" x 3" x .238", HDN

flat, 3/4", special, steering arm pin

4шт.

26

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

4шт.

27

L101420

PIN

lock, steering arm

2шт.

28

131-1330

JAM NUT,Jam, 5/8"-18

hex, jam, self-locking, 5/8" - 18 NF, plated

2шт.

29

132-310

COTTER PIN,1/8" x 1"

2шт.
