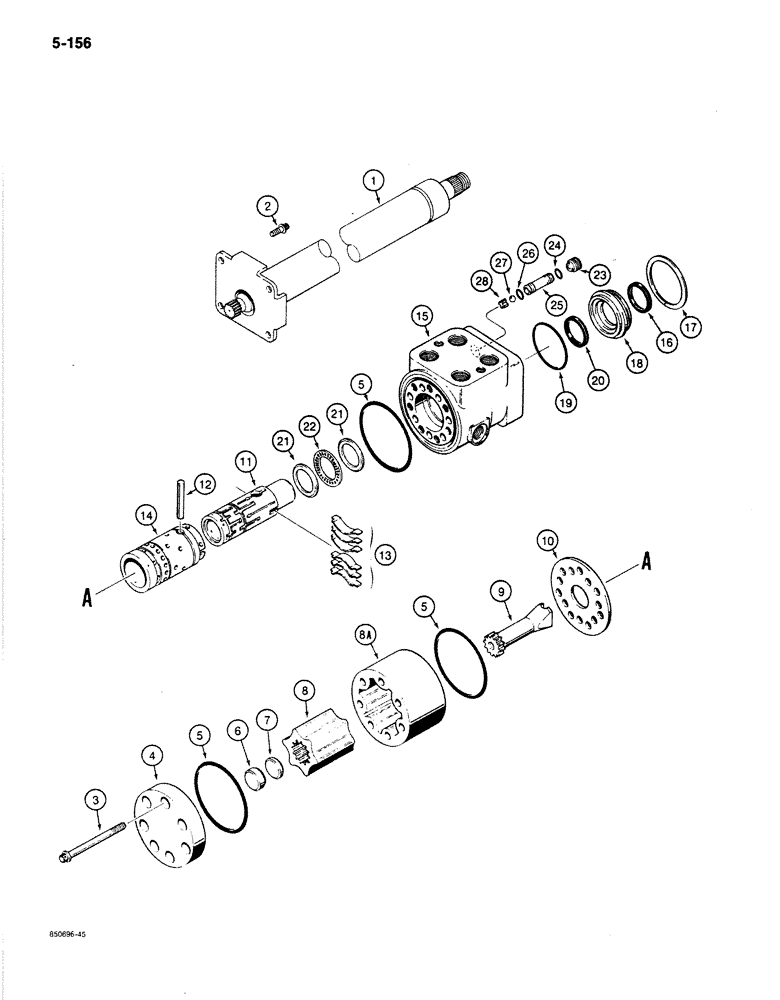

Запчасти Case 780C (5-156) - L102601 STEERING COLUMN AND CONTROL VALVE (05) - STEERING

L102601

LOCK VALVE

ASSEMBLY - steering column and control valve, complete, Includes: Ref. 1 - 28

1шт.

1

D80622

STEERING COLUMN

COLUMN-STEERING ASSEMBLY - steering, component parts not serviced separately

1шт.

2

166-42

12 PT SCREW,Flg, 3/8" - 16 x 5/8", Gr 8

Ferry head, 3/8" - 16 NC x 5/8", grade 8

2шт.

N7160

GEAR

SPARE PART VALVE ASSEMBLY - steering control, Includes: Ref. 3 - 28

1шт.

3

166-529

12 PT SCREW,Flg, 5/16" - 24 x 2", Gr 8

Ferry head, 5/16" - 24 NF x 2", grade 8

7шт.

4

D82809

COVER

end

1шт.

5

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

body

3шт.

Part of Seal Kit, P/N D82802.

1шт.

6

S110168

SPACER

large

1шт.

7

N7162

SPACER

small

1шт.

N7161

ROTOR

SPARE PART GEROTER SET - steering control valve, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

ROTOR - steering control valve

1шт.

8a

NSS

NOT SOLD SEPARAT

STATOR - steering control valve

1шт.

9

L30878

DRIVE SHAFT

geroter set

1шт.

10

S113037

PLATE

spacer

1шт.

S115563

BODY

SPOOL ASSEMBLY - control valve, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - sleeve

1шт.

12

L30888

PIN

sleeve

1шт.

13

L30889

SPRING

spool

6шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE - spacer plate

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - steering control valve

1шт.

16

A28211

OIL SEAL

bushing

1шт.

Part of Seal Kit, P/N D82802.

1шт.

17

S110169

WASHER

retaining, bushing

1шт.

18

S110170

BUSHING

seal

1шт.

19

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

body

1шт.

Part of Seal Kit, P/N D82802.

1шт.

20

A72029

RING

SEAL

1шт.

Part of Seal Kit, P/N D82802.

1шт.

21

D82804

RACE

WASHER - thrust, control valve

2шт.

22

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

Control valve

1шт.

23

D82805

SET SCREW

SCREW - set, housing

1шт.

24

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

spool

1шт.

Part of Seal Kit, P/N D82802.

1шт.

25

D82806

VALVE SEAT

SPOOL - ball retainer

1шт.

26

L30893

O-RING,1/16" Thk x 5/16" ID

spool, 7/16 x 5/16 x 1/16 in

1шт.

Part of Seal Kit, P/N D82802.

1шт.

27

211-9

BALL,5/16" Dia

5/16", grade 200, chrome alloy steel

1шт.

28

L35368

RETAINER

ball

1шт.

D82802

SEAL PACKAGE

Includes: Ref. 5, 16, 19, 20, 24, and 26

1шт.
