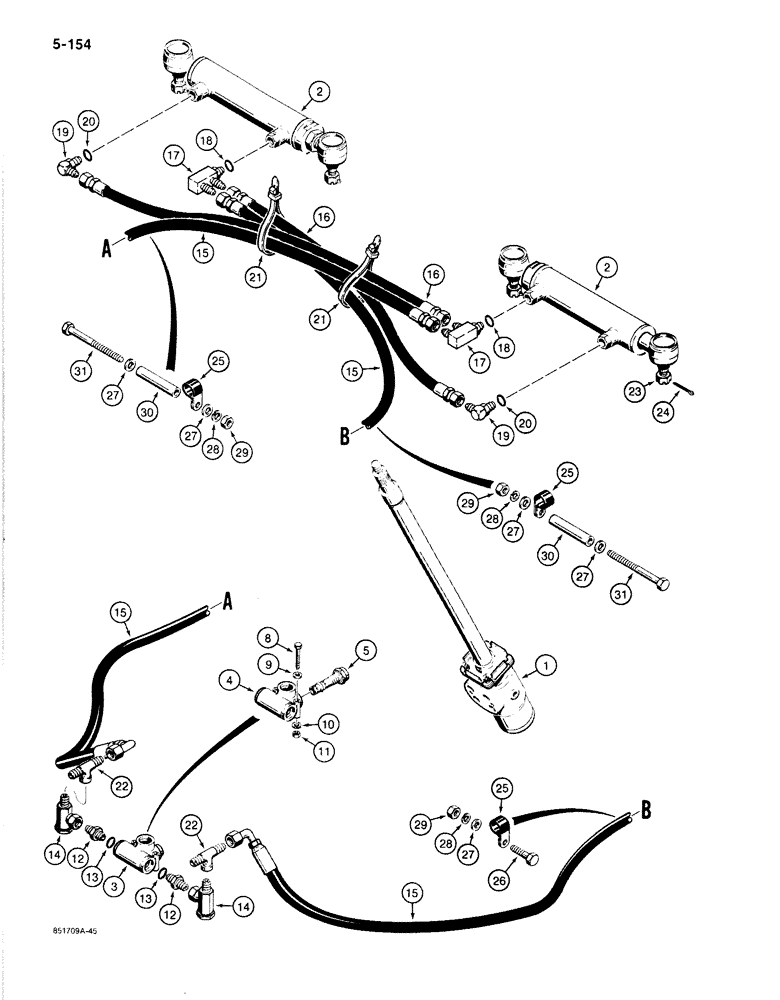

Запчасти Case 780C (5-154) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (05) - STEERING

1

L102601

LOCK VALVE

ASSEMBLY - steering control, parts list Figure 5-156, Includes: Ref. 4 - 7

1шт.

2

G102602

CYLINDER

ASSEMBLY - steering, parts list Figure 5-158

2шт.

3

L59037

LOCK VALVE

ASSEMBLY - circuit relief, steering, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

5

L36080

CARTRIDGE

ASSEMBLY - relief, Includes: Ref. 6 - 7

1шт.

6

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief, non-adjustable, not shown

1шт.

7

R31000

SEAL KIT

KIT - repair, not shown, includes (4) O-rings and (2) backup washers

1шт.

8

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

9

195-102

WASHER,1/4"

flat, plated

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

12

218-5442

HYD CONNECTOR,3/4"-16 O-Ring x 3/8" NPTF

ADAPTER - straight, check valve to relief valve, Includes: Ref. 13

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Adapter

1шт.

14

L59038

LOCK VALVE

check, steering control valve

2шт.

15

L108303

HOSE

85" (2159 mm) long, Serial Range: valve-cylinders

2шт.

16

L103800

HOSE,0.38" ID x 40.00", SAE 100R1 Type A

Right Hand to Left Hand, Cylinders

2шт.

17

L57911

FITTING

special, closed end of cylinder, Includes: Ref. 18

2шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adjustable, rod end of cylinder, Includes: Ref. 20

2шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

22

218-573

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Fem Br

at check valve

2шт.

23

425-1314

SLOTTED NUT,7/8"-14, G5

hex, slotted, 7/8" - 14 NF, plated

4шт.

25

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

hose

3шт.

26

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

27

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat, 3/8", plated

5шт.

28

192-21

LOCK WASHER,3/8"

3шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

3шт.

30

T32627

SPACER,5/8" Tube x 2"

2" long, hose clamp

2шт.

31

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

24

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

4шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Fitting

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Elbow

2шт.
