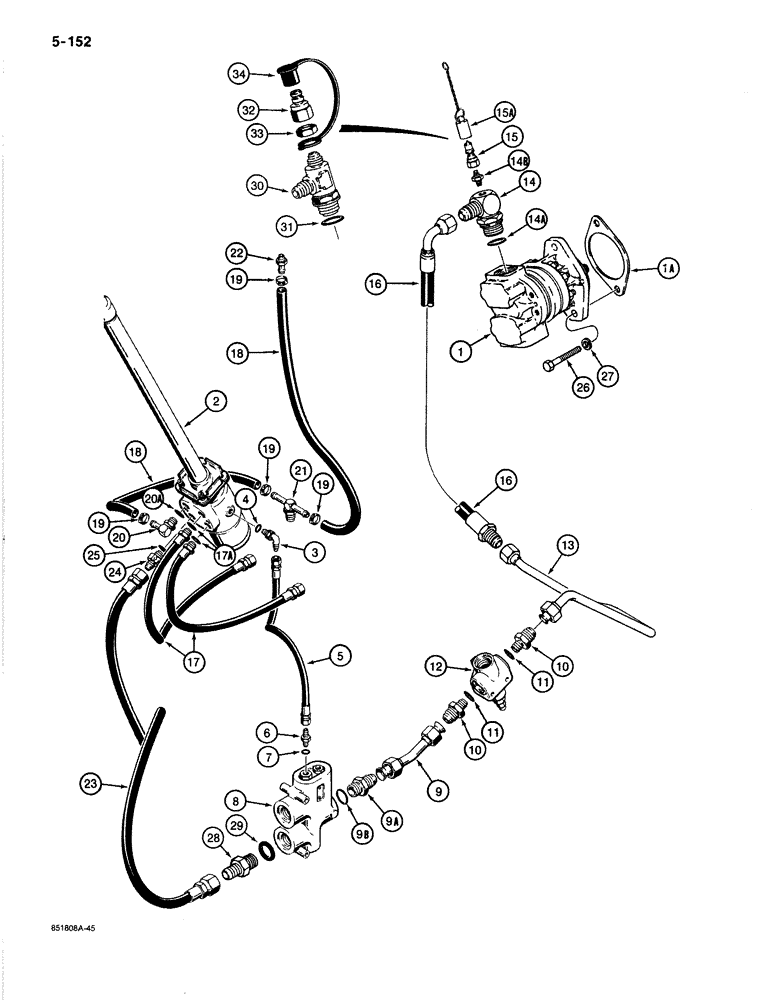

Запчасти Case 780C (5-152) - STEERING HYDRAULIC CIRCUIT, STEERING PUMP TO STEERING CONTROL VALVE (05) - STEERING

1

D127917

PUMP

ASSEMBLY - steering hydraulic, parts list Figure 8-282

1шт.

1a

A77441

GASKET

hydraulic pump

1шт.

2

L102601

LOCK VALVE

ASSEMBLY - steering control, parts list Figure 5-156

1шт.

3

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90 degree, adjustable, Includes: Ref. 4

1шт.

4

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Elbow

1шт.

5

D52712

HOSE ASSY.

27" (686 mm) long, flow control valve to steering control valve

1шт.

6

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref. 7

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Adapter

1шт.

8

L102602

LOCK VALVE

ASSEMBLY - flow control, parts list Figure 8-318

1шт.

9

L103972

TUBE,0.75" OD x 6.4, 1.85" L

relief to flow control

1шт.

9a

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Straight, male, Incl. Ref. 9B

1шт.

9b

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Adapter

1шт.

10

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

straight, male, Includes: Ref. 11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Adapter

1шт.

12

D131348

LOCK VALVE

ASSEMBLY - relief, parts list Figure 8-320

1шт.

13

L110972

TUBE,0.75" OD

supply to relief

1шт.

14

H289058

ADAPTER

90 degree, special, if used, Includes: Ref. 14A

1шт.

14a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow, if used

1шт.

14b

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

Straight, if used

1шт.

15

S206607

DISC

COUPLING - pressure check, if used

1шт.

15a

S206608

CAP

dust, if used

1шт.

16

L1100999

HOSE - 23" (584 mm) long, pump to relief valve

1шт.

17

L103395

HOSE,0.38" ID x 18.00", SAE 100R1

18" (457 mm) long, steering cylinder tee, Includes: Ref. 17A

2шт.

17a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Hose

1шт.

18

L55952

HOSE,0.50" ID x 16.00", SAE 100R3

16" (406 mm) long, return

2шт.

19

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

hose

4шт.

20

217-348

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB

stem, 90 degree, adjustable, Includes: Ref. 20A

1шт.

20a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Stem fitting

1шт.

21

L100139

TEE

SPARE PART hose, mounts in upper port of L59037 relief valve, Ref. 3 in Figure 5-154

1шт.

22

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

Straight

1шт.

23

H262048

HOSE ASSY.

SPARE PART 39" (991 mm) long, steering supply

1шт.

24

L104449

LOCK VALVE

check, steering, Includes: Ref. 25

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Check valve

1шт.

26

814-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8

hex head, 12 mm - 1.75 mm, plated

2шт.

27

892-1112

LOCK WASHER,M12

2шт.

28

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Straight, male, Incl. Ref 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Adapter

1шт.

30

218-5585

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

adjustable, male, if used, Includes: Ref. 31

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

tee

1шт.

32

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Assy - Quick disconnect, component parts not serviced separately, if used, Includes Ref. 33

1шт.

33

129-132

NUT,1 1/4"-12, G5

1шт.

34

H434163

DUST CAP

Coupling, if used

1шт.
