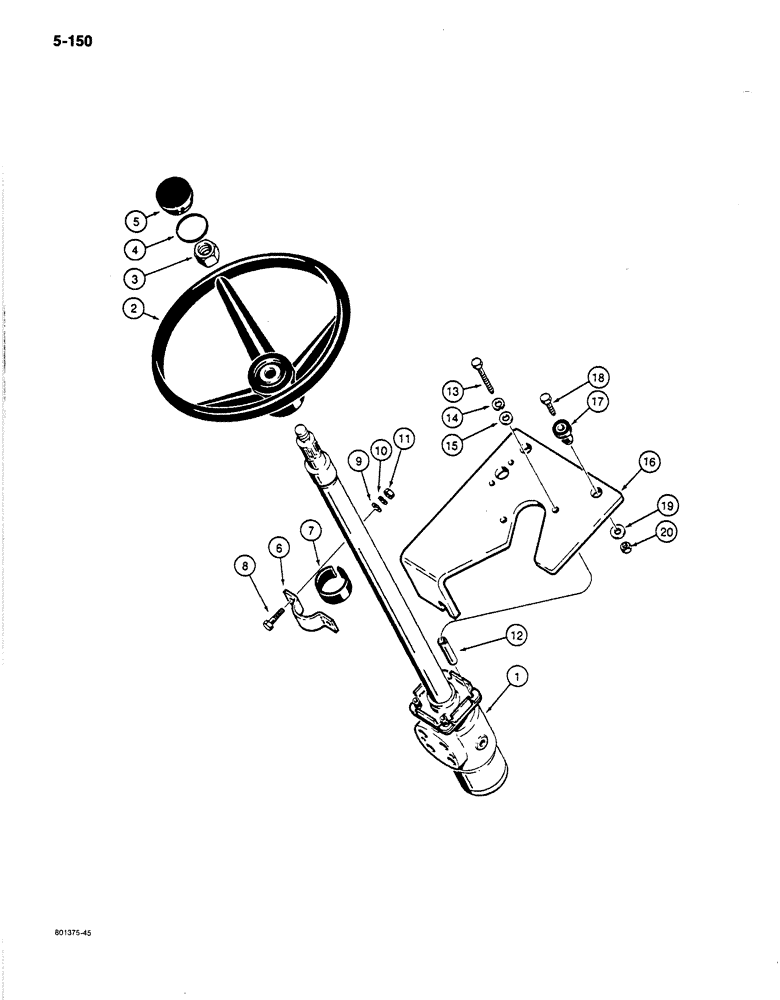

Запчасти Case 780C (5-150) - STEERING WHEEL AND COLUMN (05) - STEERING

1

L102601

LOCK VALVE

ASSEMBLY - steering control, parts list Figure 5-156

1шт.

2

A65544

STEERING WHEEL

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

special, steering wheel mounting

1шт.

4

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

cap

1шт.

5

A62210

PLUG

CAP - steering wheel

1шт.

6

D66049

CLAMP

steering column

1шт.

7

L102644

COLLAR CLAMP

steering column

1шт.

8

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

9

195-103

WASHER,5/16"

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

D95745

BUSHING

plate mounting

2шт.

13

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

14

192-21

LOCK WASHER,3/8"

2шт.

15

195-104

WASHER,3/8"

flat, , plated 3/8"

2шт.

16

L108626

PLATE ASSY.

steering mounting

1шт.

17

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNT - steering

2шт.

18

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

19

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

hardened

2шт.

20

131-217

LOCK NUT

hex, self-locking, 3/8" - 16 NC, plated

2шт.
