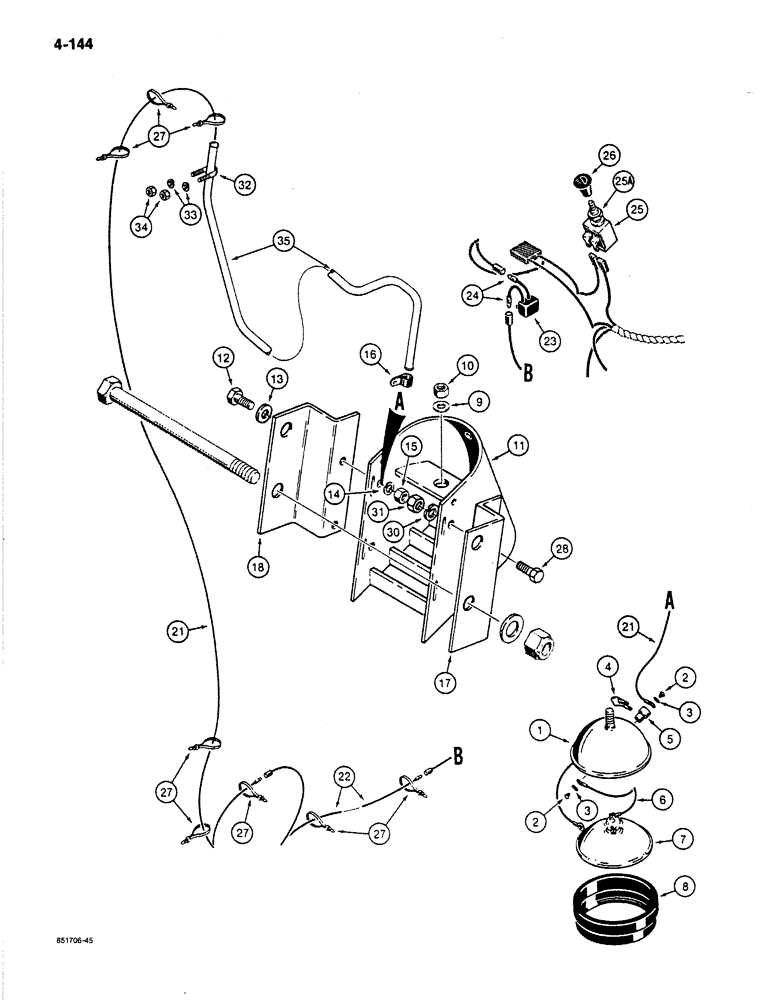

Запчасти Case 780C (4-144) - 24 VOLT DIPPER LAMP, USED WITH EXTENDABLE DIPPER (04) - ELECTRICAL SYSTEMS

L45149

HEADLIGHT

ASSEMBLY - dipper arm, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

2

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

2шт.

3

193-91

LOCK WASHER,Int Tooth, #8

2шт.

4

10927

SPRING

SPARE PART lamp

1шт.

5

B50293

TERMINAL CONNECTOR

lamp

1шт.

6

A40033

ELECTRICAL WIRE

WIRE lamp

1шт.

7

L10499

LAMP

sealed beam, 24 volt, No. 4589

1шт.

8

D31441

RETAINER

lamp

1шт.

9

195-533

WASHER,1/2", SAE

1шт.

10

131-354

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2" - 13 NC

1шт.

11

D41427

SHIELD

dipper lamp

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

13

195-104

WASHER,3/8"

flat, , plated 3/8"

1шт.

14

192-21

LOCK WASHER,3/8"

1шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

16

49838

CLAMP

wire

1шт.

17

L109156

BRACKET

SPARE PART shield, dipper lamp, right-hand, not shown

1шт.

18

L109157

BRACKET

SPARE PART shield, dipper lamp, left-hand

1шт.

21

L100002

ELECTRICAL WIRE

WIRE 254" (6452 mm) long, lamp to switch wire

1шт.

22

L104338

ELECTRICAL WIRE

WIRE 70" (1778 mm) long, dipper lamp

1шт.

23

H335976

CIRCUIT-BREAKER

10 ampere

1шт.

24

L10051

TERMINAL CONNECTOR,Male

Male

2шт.

25

D74330

SWITCH

dipper lamp, Includes: Ref. 25A

1шт.

25a

N7557

NUT

special, 3/8" - 24 NF, switch retaining

1шт.

26

D70448

KNOB

dipper lamp

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

28

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

30

192-23

LOCK WASHER,1/2"

3шт.

31

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

32

L78949

U-BOLT

U-BOLT - 5/16" - 18 NC

1шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

34

9635082

NUT,5/16" - 18, Gr 5

2шт.

35

L109071

TUBE,0.5" OD

lamp wire guard

1шт.
