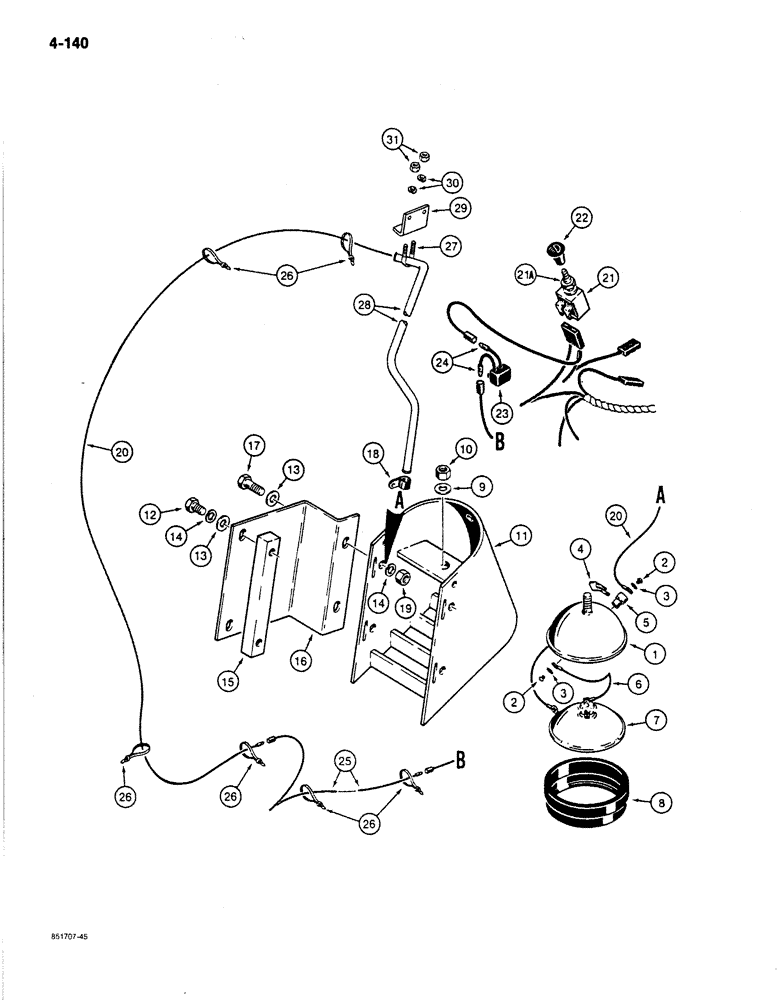

Запчасти Case 780C (4-140) - 24 VOLT DIPPER LAMP, USED WITH NON-EXTENDABLE DIPPER (04) - ELECTRICAL SYSTEMS

L45149

HEADLIGHT

ASSEMBLY - dipper arm, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

2

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

2шт.

3

193-91

LOCK WASHER,Int Tooth, #8

2шт.

4

10927

SPRING

SPARE PART lamp

1шт.

5

B50293

TERMINAL CONNECTOR

lamp

1шт.

6

A40033

ELECTRICAL WIRE

WIRE lamp

1шт.

7

L10499

LAMP

sealed beam, 24 volt, No. 4589

1шт.

8

D31441

RETAINER

lamp

1шт.

9

195-533

WASHER,1/2", SAE

1шт.

10

131-354

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2" - 13 NC

1шт.

11

D41427

SHIELD

dipper lamp

1шт.

12

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

4шт.

13

195-106

WASHER,1/2"

flat, plated

8шт.

14

192-23

LOCK WASHER,1/2"

8шт.

15

L50502

BLOCK

tapped, welded on

2шт.

16

L108508

BRACKET

shield mounting, dipper lamp

2шт.

17

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

18

49836

CLAMP

wire

1шт.

19

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

20

L79986

ELECTRICAL WIRE

WIRE to dipper lamp, 209" (5308 mm) long

1шт.

21

D74330

SWITCH

dipper lamp, Includes: Ref. 21A

1шт.

21a

N7557

NUT

special, 3/8" - 24 NF, switch retaining

1шт.

22

D70448

KNOB

dipper lamp

1шт.

22

H335976

CIRCUIT-BREAKER

10 ampere

1шт.

24

L10051

TERMINAL CONNECTOR,Male

bullet

2шт.

25

L104338

ELECTRICAL WIRE

WIRE 70" (1778 mm) long, dipper lamp

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

27

L78949

U-BOLT

U-BOLT - 5/16" - 18 NC

1шт.

28

L109035

TUBE,0.5" OD

SPARE PART lamp wire guard

1шт.

29

L108493

BRACKET

SPARE PART tube mounting

1шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

31

9635082

NUT,5/16" - 18, Gr 5

2шт.
