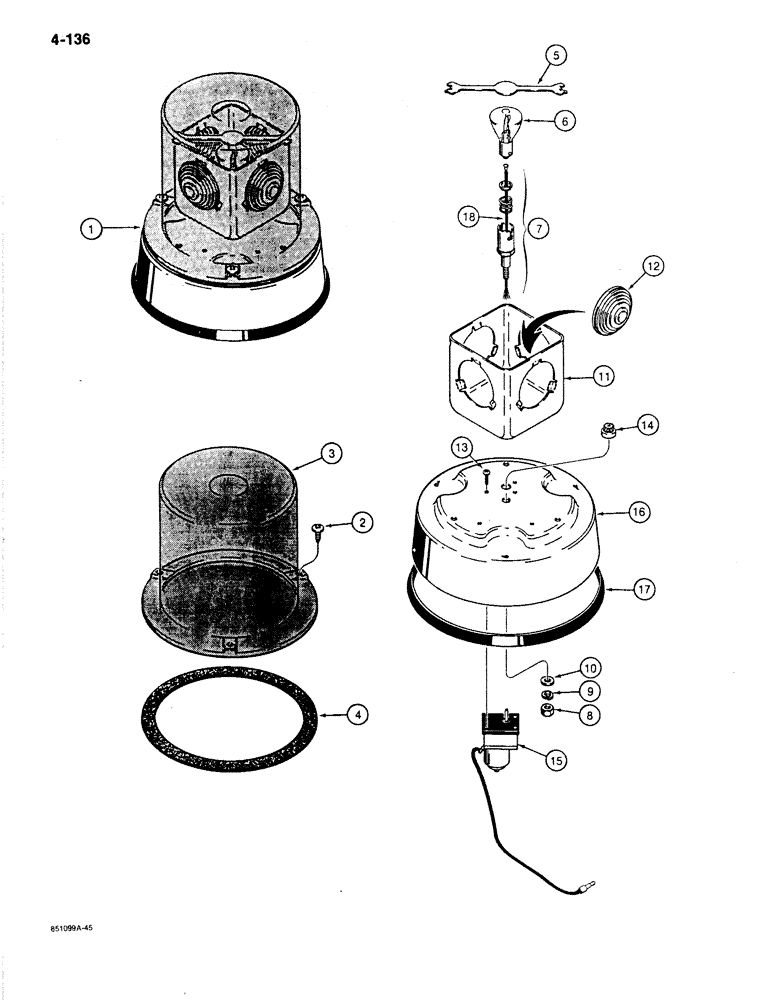

Запчасти Case 780C (4-136) - 24 VOLT ROTATING BEACON (04) - ELECTRICAL SYSTEMS

1

L110648

LAMP

BEACON ASSEMBLY - rotating, 24 volt, Includes: Ref. 2 - 18

1шт.

2

187-39

SELF-TAP SCREW,Rd Hd, #12 x 5/8"

round head, self-tapping, Np. 12-14 NC x 5/8"

3шт.

3

N8426

LENS

DOME - rotating beacon

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - dome

1шт.

5

NSS

NOT SOLD SEPARAT

STRAP - housing

1шт.

6

N8424

BULB

24 volt

1шт.

7

N8430

SOCKET

SPARE PART beacon

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

10

195-103

WASHER,5/16"

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - less lenses

1шт.

12

N8423

GASKET

LENS - beacon

4шт.

13

182-47

SCREW,Sl Pan Hd, #6 - 32 x 5/8"

machine, pan head slotted, No. 6-32 NC x 5/8"

3шт.

14

NSS

NOT SOLD SEPARAT

GEAR - beacon

1шт.

15

N8425

MOTOR, ELECTRIC

beacon

1шт.

16

NSS

NOT SOLD SEPARAT

BASE - beacon

1шт.

17

N8422

GASKET

SPARE PART base

1шт.

18

NSS

NOT SOLD SEPARAT

WIRE - jumper, Serial Range: bulb-motor

1шт.
