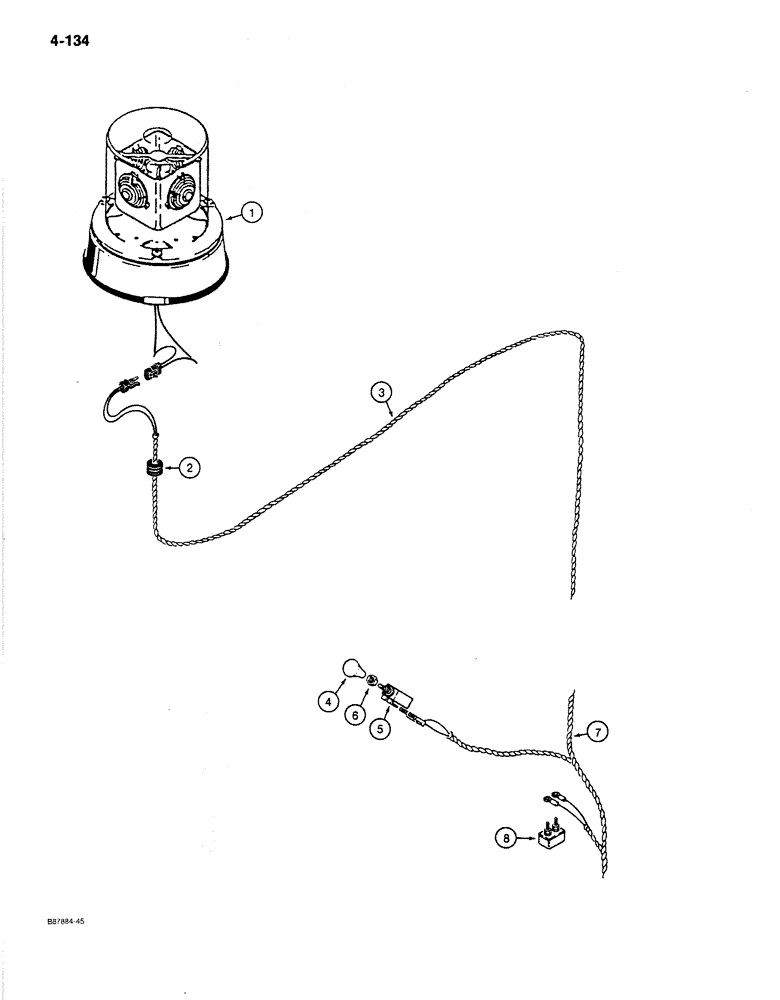

Запчасти Case 780C (4-134) - 12 VOLT ROTATING BEACON AND CIRCUIT, CAB OR CANOPY (04) - ELECTRICAL SYSTEMS

1

D137275

LIGHT, WARNING

BEACON ASSEMBLY - rotating, Signal Stat, 12 volt, amber lens, parts list Figure 4-138

1шт.

2

L77821

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

wire

1шт.

3

REF

INSTRUCTION

HARNESS - cab or canopy, see Figure 4-114 for canopy harness and Figure 4-118 or 9-468 for cab harness

1шт.

4

D92573

BUTTON

switch

1шт.

5

D74330

SWITCH

rotating beacon, Includes: Ref. 6

1шт.

6

N7557

NUT

special, 3/8" - 24 NF, switch retaining

1шт.

7

REF

INSTRUCTION

HARNESS - instrument, see Figure 4-104 for instrument panel harness

1шт.

8

D137004

BREAKER

circuit, 10 amperes

1шт.
