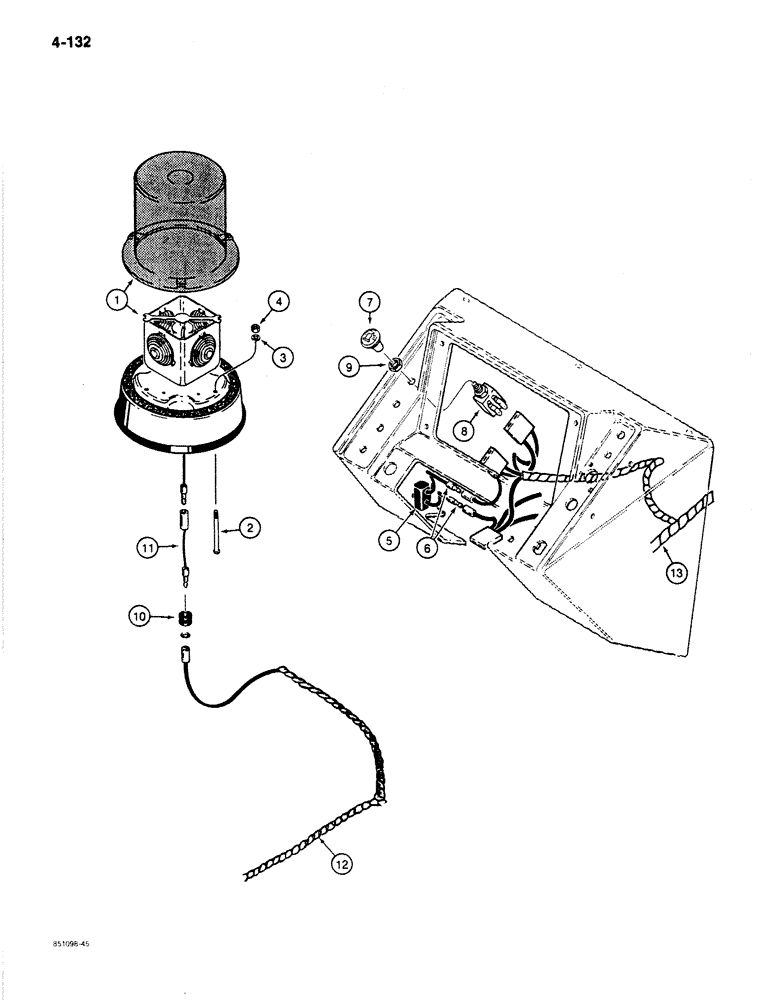

Запчасти Case 780C (4-132) - 24 VOLT ROTATING BEACON AND CIRCUIT, CAB OR CANOPY (04) - ELECTRICAL SYSTEMS

1

L110648

LAMP

BEACON ASSEMBLY - rotating, Signal Stat, 24 volt, amber lens, parts list Figure 4-136

1шт.

2

169-111

SCREW,Sl Fil Hd, #10 - 24 x 3"

machine, Fillister head, No. 10-24 NC x 3"

3шт.

3

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

3шт.

4

129-17

NUT,Hex, #10 - 24

3шт.

5

H335976

CIRCUIT-BREAKER

10 amperes

1шт.

6

L10051

TERMINAL CONNECTOR,Male

circuit breaker to harness Male

2шт.

7

D92573

BUTTON

switch

1шт.

8

D74330

SWITCH

rotating beacon, Includes: Ref. 9

1шт.

9

N7557

NUT

special, 3/8" - 24 NF, switch retaining

1шт.

10

A23870

GROMMET

wire

1шт.

11

D129852

ELECTRICAL WIRE

WIRE jumper

1шт.

12

REF

INSTRUCTION

HARNESS - cab or canopy, see Figure 4-112 for canopy harness or Figure 4-116 for cab harness

1шт.

13

REF

INSTRUCTION

HARNESS - instrument, see Figure 4-102 for instrument panel harness

1шт.
