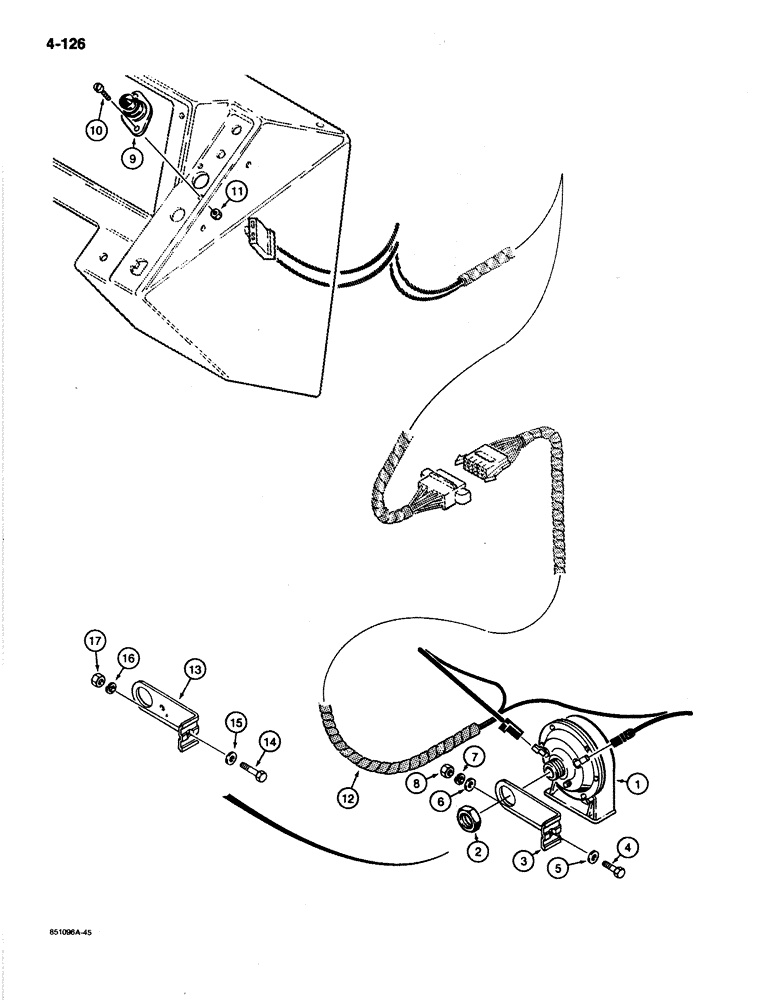

Запчасти Case 780C (4-126) - 24 VOLT HORN (04) - ELECTRICAL SYSTEMS

1

D77650

HORN

24 volt

1шт.

2

L30866

LOCK NUT

horn mounting

1шт.

3

L73799

BRACKET

horn mounting, used existing 5/16" coolant recovery bottle mounting hardware, if used

1шт.

4

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

If used

1шт.

5

195-521

WASHER,5/16", SAE

If Used

1шт.

6

195-103

WASHER,5/16"

If used

1шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

If used

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

If used

1шт.

9

D67872

SWITCH

push button, horn

1шт.

10

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

machine, pan head slotted, No. 10-32 NF x 1/2", plated

2шт.

11

193-1000

NUT,Keps, w/LW,#10-32

ASSEMBLY - includes lock washer, No. 10-32 NF, plated

2шт.

12

REF

INSTRUCTION

HARNESS - front, see Figure 4-92 for front harness and clamps

1шт.

13

D136410

BRACKET

horn mounting, at heater hose P-clamp on chassis, uses 3/8" hardware, if used

1шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

If used

1шт.

15

195-104

WASHER,3/8"

flat, , plated, if used 3/8"

1шт.

16

192-21

LOCK WASHER,3/8"

If used

1шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

If used

1шт.
