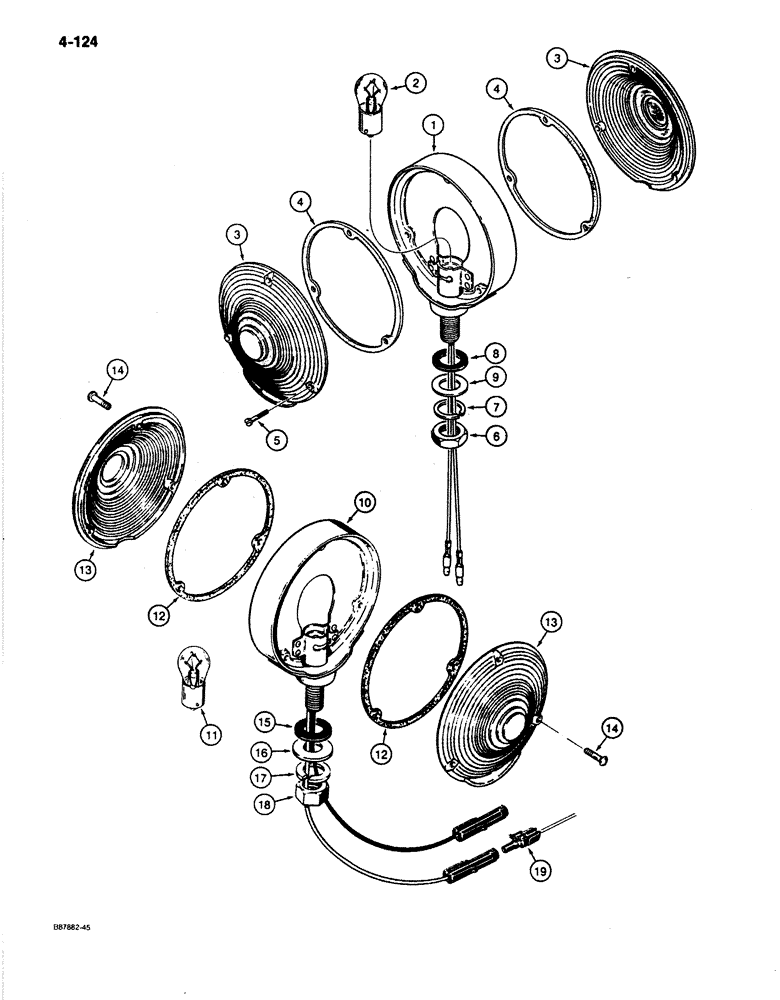

Запчасти Case 780C (4-124) - TRACTOR LAMPS, TURN SIGNAL AND FLASHER, USED ON MODELS WITH 24 VOLT ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

D126642

LAMP BASE

ASSEMBLY - turn signal and flasher, Includes: Ref. 1 - 9

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

2

A15084

LAMP

No. 1683

1шт.

L32214

LENS

KIT - replacement, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

LENS - signal lamp

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

5

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

machine, round head slotted, No. 6-32 NC x 5/8", plated

3шт.

6

129-125

NUT,1/2"-20, G5

1шт.

7

192-23

LOCK WASHER,1/2"

1шт.

8

L32256

WASHER

rubber, special

1шт.

9

195-106

WASHER,1/2"

flat, plated

1шт.

D137290

LAMP

ASSEMBLY - turn signal and flasher, used on models with 12 volt electrical circuit, Includes: Ref. 10 - 19

2шт.

10

NSS

NOT SOLD SEPARAT

BODY - signal and flasher lamp, used on models with 12 volt electrical circuit

1шт.

L32214

LENS

KIT - replacement, used on models with 12 volt electrical circuit, Includes: Ref. 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

GASKET - lens, used on models with 12 volt electrical circuit

1шт.

13

NSS

NOT SOLD SEPARAT

LENS - amber, used on models with 12 volt electrical circuit

1шт.

14

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

machine, round head slotted, No. 6-32 NC x 5/8", plated, used on models with 12 volt electrical circuit

3шт.

15

L32256

WASHER

BUSHING - rubber, used on models with 12 volt electrical circuit

1шт.

16

195-106

WASHER,1/2"

flat, plated, used on models with 12 volt electrical circuit

1шт.

17

192-23

LOCK WASHER,1/2"

Used on models with 12 volt electrical circuit

1шт.

18

129-125

NUT,1/2"-20, G5

Used on models with 12 volt electrical circuit

1шт.

19

NSS

NOT SOLD SEPARAT

CONNECTOR - body, connects to white ground wire, used on models with 12 volt electrical circuit

1шт.
