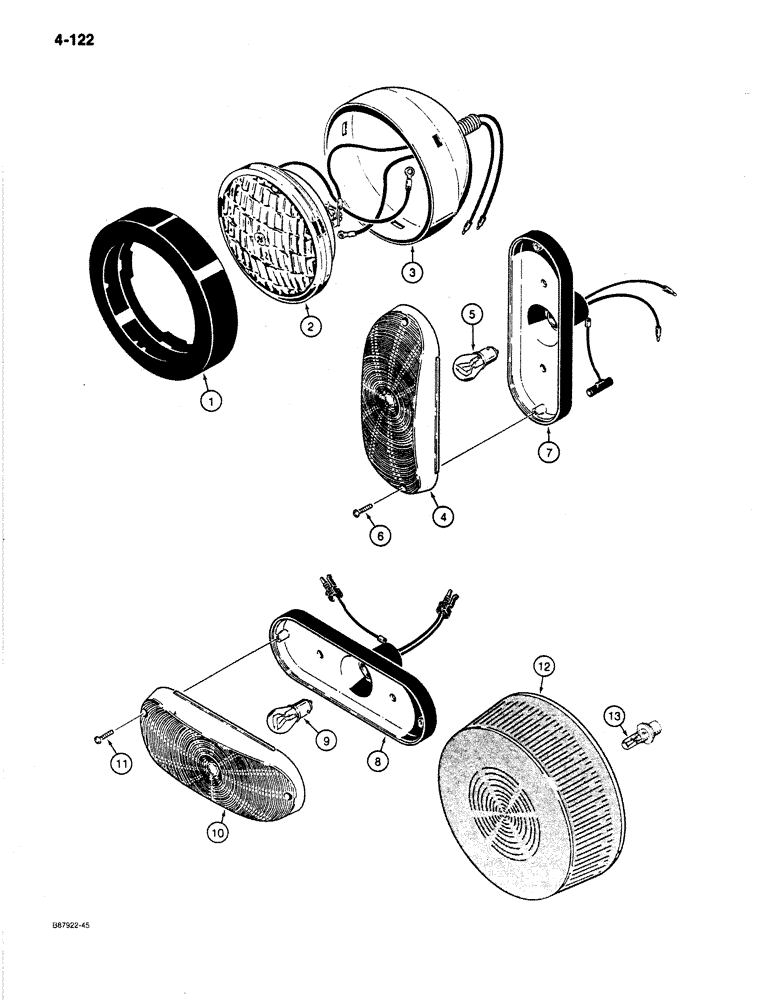

Запчасти Case 780C (4-122) - TRACTOR LAMPS, STOP AND TAIL LAMPS, USED ON MODELS WITH 24 VOLT ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

L104605

LAMP

ASSEMBLY - stop and tail, used on canopy models without flashers, if used, Includes: Ref. 1 - 3

1шт.

1

A25213

RETAINER

lamp

1шт.

2

N7125

LAMP

SPARE PART No. 4237

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

D126641

LAMP

ASSEMBLY - stop and tail, used on cab or canopy models, Includes: Ref. 4 - 7

2шт.

4

N6836

LENS

lamp

1шт.

5

L33194

BULB

No. 1662

1шт.

6

187-1005

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

round head, self-tapping, No. 6-32 NC x 5/8", plated

2шт.

7

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

D137293

LAMP

ASSEMBLY - stop and tail, used on cab or canopy models, used on models with 12 volt electrical circuit, Includes: Ref. 8 - 11

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - lamp, complete, used on models with 12 volt electrical circuit

1шт.

9

T34857

BULB,C6, #1157, 12.8V

Stop and tail, Used on models with 12 volt electrical circuit

1шт.

10

N6836

LENS

red, lamp, used on models with 12 volt electrical circuit

1шт.

11

187-1005

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

round head, self-tapping, No. 6-32 NC x 5/8", plated, used on models with 12 volt electrical circuit

2шт.

A187704

LAMP

ASSEMBLY - tail, used on canopy models without flashers, if used, used on models with 12 volt electrical circuit, Includes: Ref. 12 - 13

1шт.

12

NSS

NOT SOLD SEPARAT

LENS - includes body, lamp, complete, used on models with 12 volt electrical circuit

1шт.

13

D71346

TAIL LAMP,12V

No. 168, used on models with 12 volt electrical circuit

1шт.
