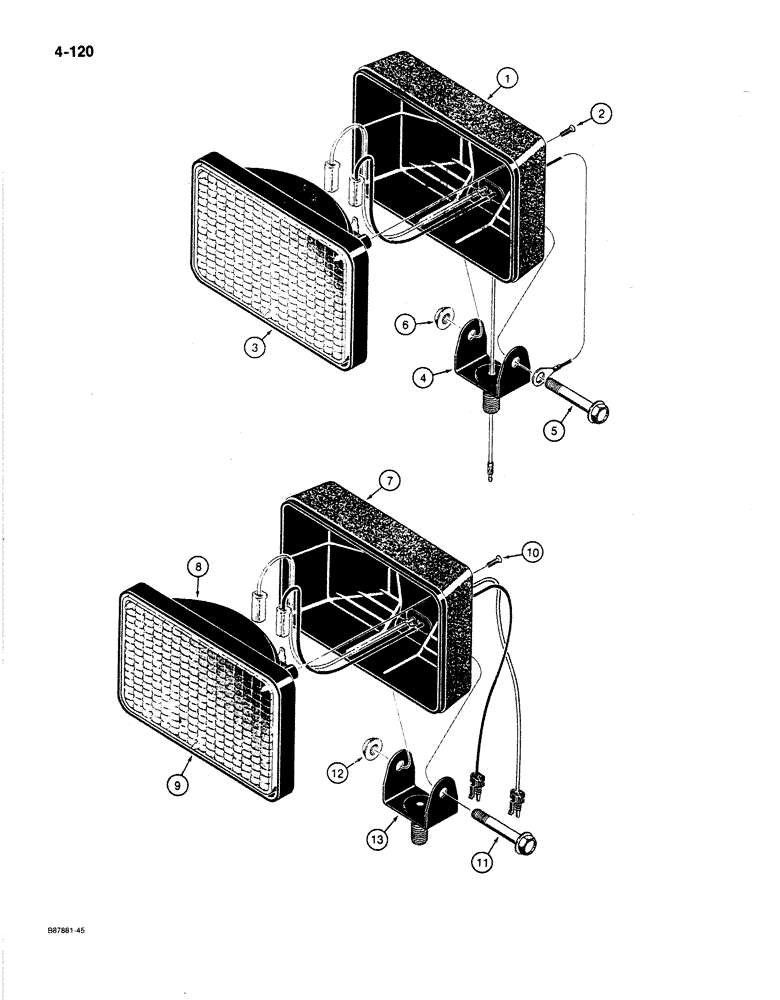

Запчасти Case 780C (4-120) - TRACTOR LAMPS (HALOGEN), FRONT DRIVING AND REAR FLOOD LAMPS, USED ON MODELS W/ CAB OR CANOPY (04) - ELECTRICAL SYSTEMS

F96875

LAMP BASE

ASSEMBLY - front driving, cab models only, without bracket (Ref. 4), for service order F96876 lamp and remove Ref. 4 bracket, Includes: Ref. 1 - 6

2шт.

F96876

LAMP

ASSEMBLY - front driving and rear flood, with bracket (Ref. 4), Includes: Ref. 1 - 6

3-4шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

2

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

pan head, self-tapping, No. 8-18 NC x 1/2"

2шт.

3

F45305

HEADLIGHT

sealed beam

1шт.

4

N8347

SUPPORT

lamp, used with rear flood lamps

1шт.

5

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

131-937

FLANGE NUT,Flg, 5/16"-18

Special

1шт.

D137294

LIGHT ASSY.

front driving and rear flood, on cab models Ref. 13 bracket is not used on front lamps, used on models with 12 volt electrical circuit, Includes: Ref. 7 - 13

3-4шт.

7

NSS

NOT SOLD SEPARAT

SHELL - lamp, used on models with 12 volt electrical circuit

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - shell, used on models with 12 volt electrical circuit

1шт.

9

F45230

HEADLIGHT

halogen, used on models with 12 volt electrical circuit

1шт.

10

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

pan head, self-tapping, No. 8 x 1/2", used on models with 12 volt electrical circuit

2шт.

11

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

Used on models with 12 volt electrical circuit

1шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Hex, used on models with 12 volt electrical circuit

1шт.

13

N14626

SUPPORT

lamp, used on models with 12 volt electrical circuit

1шт.
