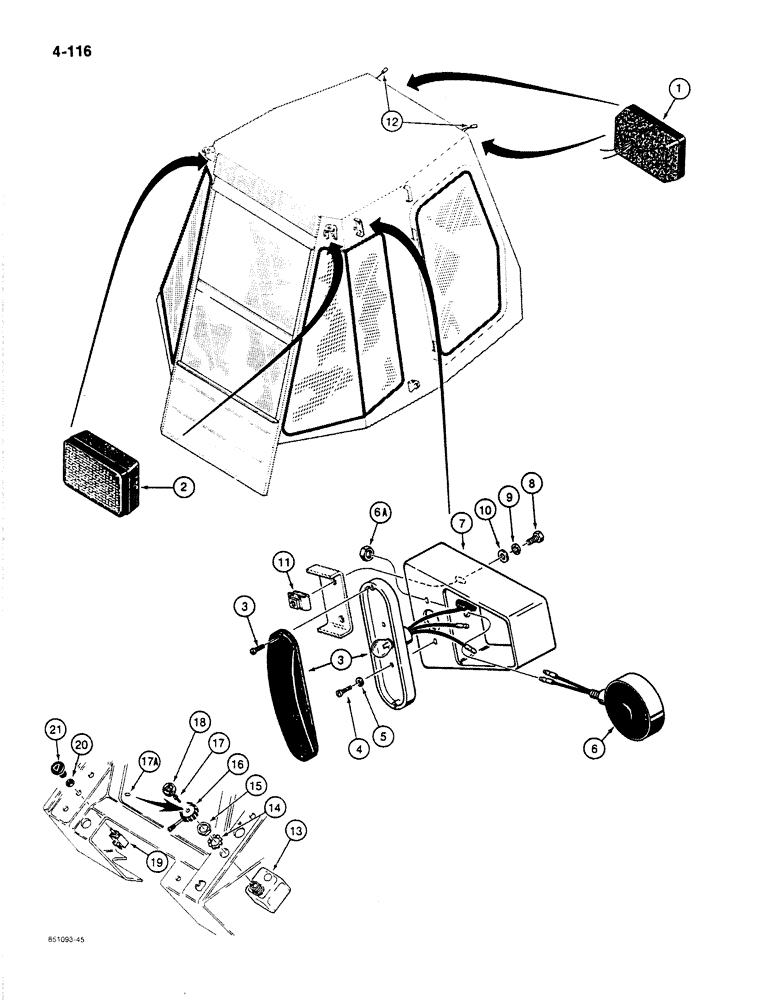

Запчасти Case 780C (4-116) - 24 VOLT TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CAB (04) - ELECTRICAL SYSTEMS

1

F96875

LAMP BASE

ASSEMBLY - front driving, halogen, used without hinge bracket, parts list Figure 4-120, for lamp mounting see Figure 9-450 for cab harness, see Figure 9-466

2шт.

2

F96876

LAMP

ASSEMBLY - rear flood, halogen, used with hinge bracket, parts list Figure 4-120, for lamp mounting see Figure 9-450, for cab harness, see Figure 9-466

2шт.

3

D126641

LAMP

ASSEMBLY - stop and tail, parts list Figure 4-122

2шт.

4

187-1917

SELF-TAP SCREW,Pan Hd, #8-16 x 5/8"

pan head, self-tapping, No. 8 x 5/8", plated

4шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

4шт.

6

D126642

LAMP BASE

ASSEMBLY - flasher and turn signal, parts list Figure 4-124

2шт.

6a

129-165

JAM NUT,Jam, 1/2"-20, G5

2шт.

7

D120124

BRACKET

side lamps

2шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

10

195-103

WASHER,5/16"

4шт.

11

131-636

SPRING NUT,J, Ret, 5/16"-18

J-type, 5/16" - 18 NC

4шт.

12

F45224

HARNESS

cab, see Figure 9-466 for cab harness and control panel

1шт.

13

L101702

INDICATOR LIGHT

SWITCH - turn signal

1шт.

14

193-98

LOCK WASHER,Ext Tooth, 3/4"

1шт.

15

D91352

JAM NUT

special

1шт.

16

A141736

KNOB

turn signal switch

1шт.

17

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

machine, pan head slotted, No. 5-40 NC x 1/2", plated

1шт.

17a

193-3

LOCK WASHER,Int Tooth, #5

external tooth lock, No. 5, plated

1шт.

18

A160035

PLATE

knob, turn signal switch insert

1шт.

19

D74330

SWITCH

flasher, see Figure 4-102 for front and rear lamp switches, Includes: Ref. 20

1шт.

20

N7557

NUT

special, 38" - 24 NF, switch retaining

1шт.

21

D88134

KNOB

flasher switch

1шт.
