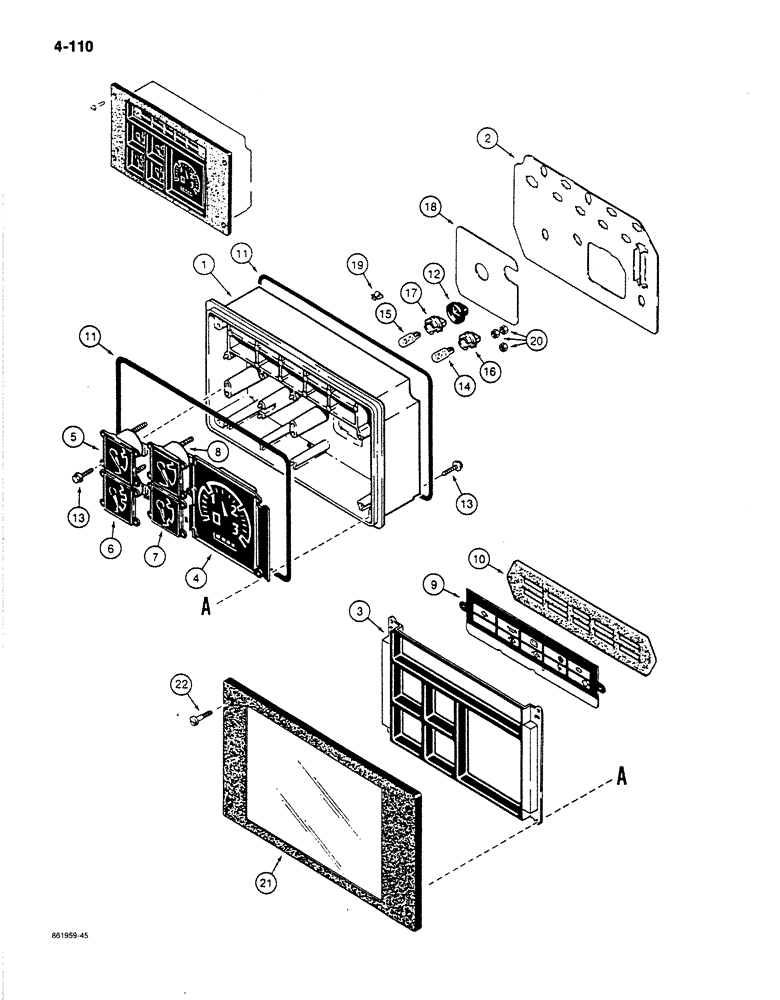

Запчасти Case 780C (4-110) - INSTRUMENT CLUSTER, USED ON MODELS WITH 12 VOLT ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

D136683

CLUSTER

ASSEMBLY - instrument, 12 volt electrical, Includes: Ref. 1 - 21

1шт.

1

N13545

INSTRUMENT PANEL

instrument cluster

1шт.

2

H422774

BOARD, PRINTED CIRCU

IT instrument cluster, not shown

1шт.

3

N14227

COVER

instrument cluster

1шт.

4

N13543

TACHOMETER

GAUGE - includes hourmeter

1шт.

5

N13542

GAUGE

water temperature

1шт.

6

A47688

ELECTRICAL GAUGE

fuel level

1шт.

7

N14633

GAUGE

SPARE PART air pressure

1шт.

8

N13546

GAUGE

oil temperature

1шт.

9

N13538

BAND

LENS - identification, warning lamps

1шт.

10

D71342

GASKET,3.05mm Thk

lens

1шт.

11

D71343

GASKET,4.45mm Thk x 249.68mm ID

instrument cluster

2шт.

12

D71344

COVER

BOOT - rubber

3шт.

13

A45093

SCREW,Hex Slotted, 12.70"

special

12шт.

14

D71346

TAIL LAMP,12V

warning, No. 168

8шт.

15

W10478

LAMP

illumination, No. 194

3шт.

16

A47123

SOCKET/RECEPTACLE

lamp

8шт.

17

A47125

PEDESTAL

SOCKET - lamp, green

3шт.

18

H422758

GASKET,1.52mm Thk

housing

1шт.

19

H422766

CLIP, SPRING

gauges

12шт.

20

129-15

NUT,#6-32

3шт.

21

N14225

SHIELD

instrument cluster

1шт.

22

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

Machine

4шт.
