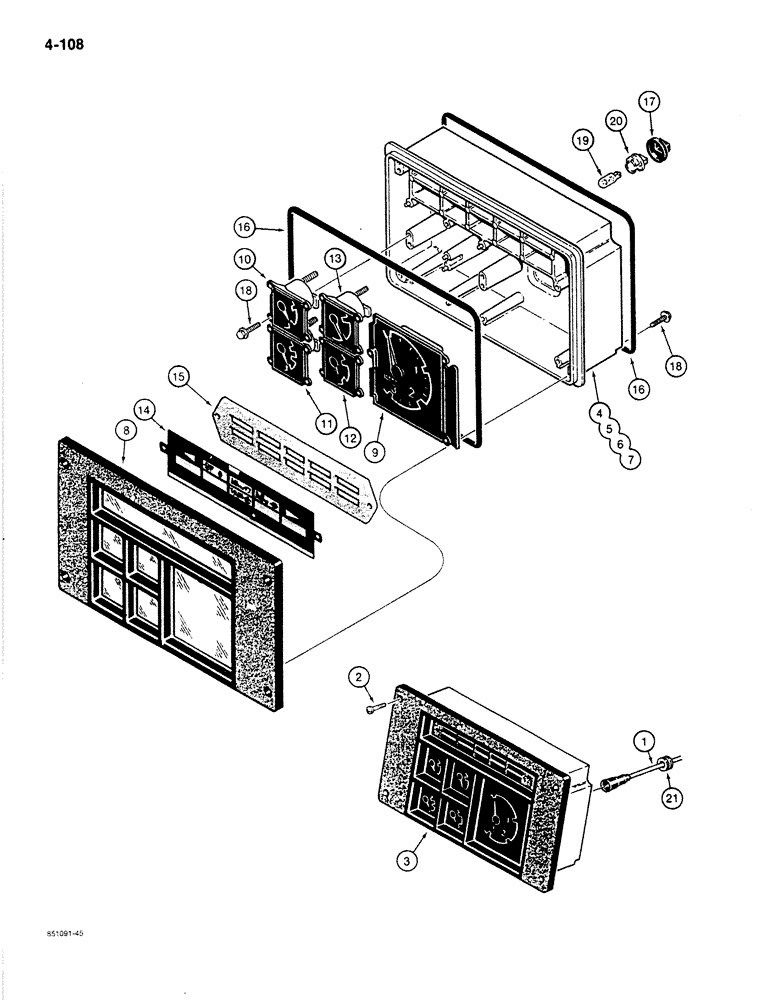

Запчасти Case 780C (4-108) - INSTRUMENT CLUSTER, USED ON MODELS WITH 24 VOLT ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

L111569

CABLE

tachometer flex drive

1шт.

2

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

Machine

4шт.

3

L60702

COIL

CLUSTER ASSEMBLY - instrument, 24 volt electrical, Includes: Ref. 4 - 20

1шт.

D71335

CASE ASSY.

instrument cluster, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

CASE - instument cluster

1шт.

5

H422774

BOARD, PRINTED CIRCU

IT instrument cluster

1шт.

6

NSS

NOT SOLD SEPARAT

CLIP - gauges

12шт.

7

NSS

NOT SOLD SEPARAT

GASKET - case

1шт.

8

D71334

LENS

COVER - instrument cluster

1шт.

9

N6805

TACHOMETER

GAUGE - includes hourmeter

1шт.

10

N7179

ELECTRICAL GAUGE

water temperature

1шт.

11

N7180

FUEL GAUGE

level

1шт.

12

N7181

ELECTRICAL GAUGE

air pressure

1шт.

13

N7182

ELECTRICAL GAUGE

oil temperature

1шт.

14

N6809

INDICATOR

LENS - identification, warning lamps

1шт.

15

D71342

GASKET,3.05mm Thk

lens

1шт.

16

D71343

GASKET,4.45mm Thk x 249.68mm ID

instrument cluster

2шт.

17

D71344

COVER

BOOT - lamp socket, rubber

3шт.

18

A45093

SCREW,Hex Slotted, 12.70"

special

12шт.

19

N8330

LAMP

illumination

11шт.

20

N8481

HOLDER

SOCKET - lamp

11шт.

21

248-21110

GROMMET,1" ID x 1 3/8" Groove Dia

tach cable

1шт.
