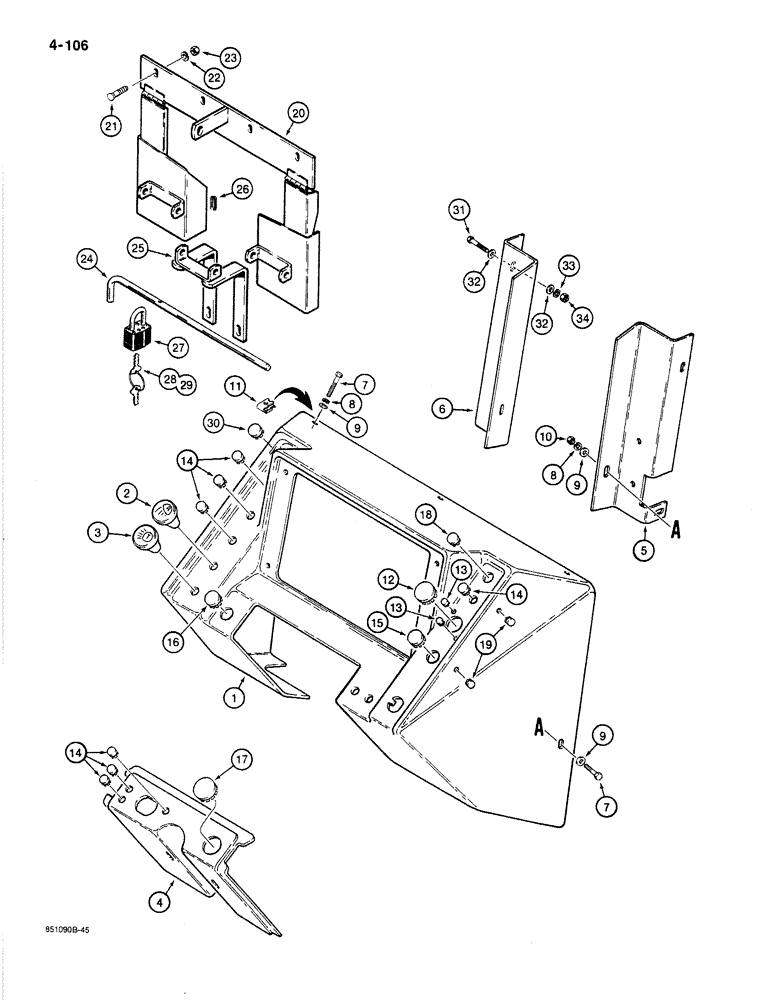

Запчасти Case 780C (4-106) - INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS

1

D123199

PANEL

instrument, tractor

1шт.

2

D70448

KNOB

switch, flood lamp

1шт.

3

D70446

KNOB

switch, lamp

1шт.

4

D123198

PANEL, INSTRUMENTS

PANEL, INSTRUMENT BRACKET

1шт.

5

L101678

BRACKET

SPARE PART instrument panel mounting, right-hand

1шт.

6

L108800

BRACKET

instrument panel mounting, left-hand

1шт.

7

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

5шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

5шт.

9

195-102

WASHER,1/4"

flat, plated

7шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

11

131-630

SPRING NUT,Tinn, U, 1/4"-20

U-type, 1/4" - 20 NC

3шт.

12

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

13

353-400

PLUG,Dome, .250" hole, Nylon

2шт.

14

353-402

PLUG,Dome, .375" hole, Nylon

7шт.

15

353-408

PLUG,Dome, .750" hole, Nylon

1шт.

16

353-407

PLUG,Dome, .687" hole, Nylon

nylon, 11/16"

1шт.

17

353-412

PLUG,Dome, 1.093" hole, Nylon

nylon, 1-3/32"

1шт.

18

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

19

353-401

PLUG,Dome, .312" hole, Nylon

nylon, 5/16", both sides

4шт.

20

L106333

COVER ASSY

SPARE PART instrument panel, anti-vandalism, if used

1шт.

21

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

4шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

4шт.

24

L106334

HANDLE

SPARE PART instrument panel cover, anti-vandalism

1шт.

25

L106905

BRACKET

SPARE PART instument panel cover lock, uses existing steering column clamp and hardware

1шт.

26

REF

INSTRUCTION

TRIM - edge, 2-2/4" (57 mm) long, cut to required length from D52812, see below

2шт.

27

D93753

PADLOCK

includes keys, Includes: Ref. 28 - 29

1шт.

28

R29555

KEY

for Master padlock only

2шт.

29

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

30

353-404

PLUG,Dome, .500" hole, Nylon

Used on models with 12 volt electrical circuit only

1шт.

31

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

32

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat, 3/8", hardened, plated

8шт.

33

192-21

LOCK WASHER,3/8"

4шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long, bulk

1шт.
