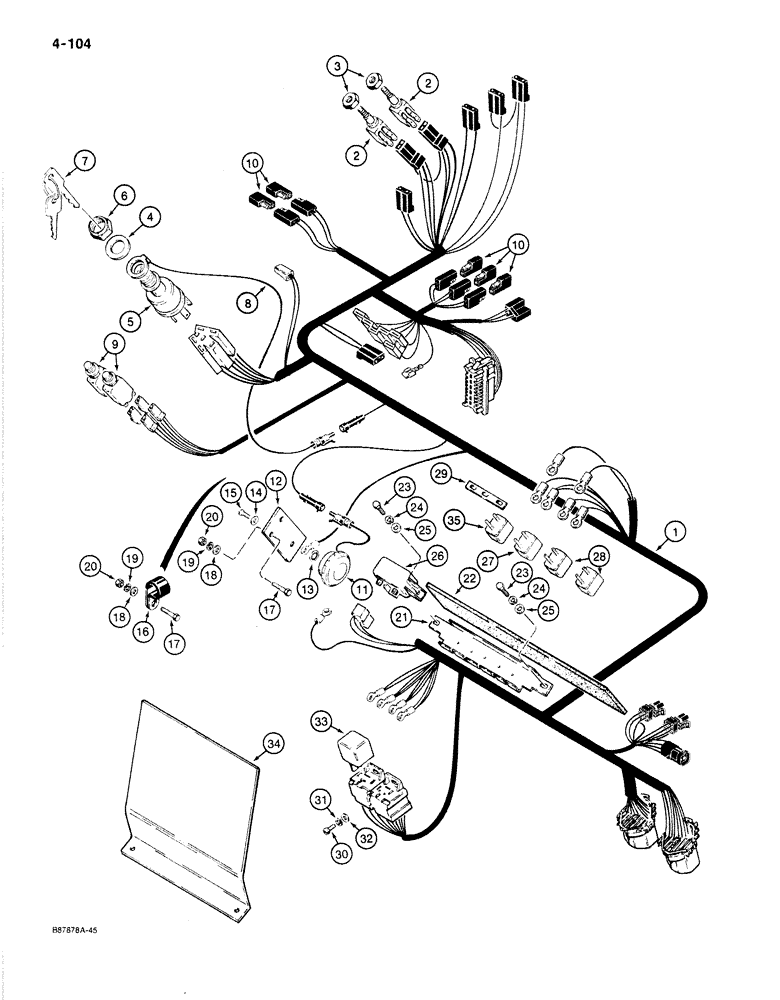

Запчасти Case 780C (4-104) - 12 VOLT ELECTRICAL CIRCUIT, INSTRUMENT HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D137811
HARNESS
instrument
1шт.
2
D74330
SWITCH
lamp, Includes: Ref. 3
2шт.
3
N7557
NUT
special, 3/8" - 24 NF, switch retaining
1шт.
4
L31557
WASHER
special, if used
1шт.
D134737
IGNITION SWITCH
SWITCH ASSEMBLY - key, includes keys, Includes: Ref. 5 - 7
1шт.
5
NSS
NOT SOLD SEPARAT
SWITCH - key, without keys
1шт.
6
A77314
NUT
key switch mounting
1шт.
7
A77313
SET OF 2 KEYS
set of two; metal without padding
1шт.
8
D137820
HARNESS
WIRE - ignition, Serial Range: switch-ground
1шт.
9
D141170
BREAKER
circuit, 12 ampere
2шт.
10
L71879
DIODE ELEMENT,400V, 3A
isolation
5шт.
11
D137308
ALARM
warning, buzzer
1шт.
12
L105849
BRACKET
insulating
1шт.
13
193-91
LOCK WASHER,Int Tooth, #8
1шт.
14
195-510
WASHER,#8
flat, No. 8, plated
1шт.
15
182-510
SCREW,Sl Pan Hd, #8 - 32 x 1/2"
machine, pan head slotted, No. 8-32 NC x 1/2", plated
1шт.
16
R14668
CLAMP
harness
1шт.
17
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
3шт.
18
195-102
WASHER,1/4"
flat, plated
3шт.
19
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
3шт.
20
7770
NUT,Hex, 1/4 - 20, Cl 5
3шт.
21
D75355
BRACKET
circuit breaker mounting
1шт.
22
K303176
FOAM
SPARE PART STRIP - 1-29/32" (49 mm) wide x 14-23/32" (374 mm) long x 5/32" (4 mm) thick, adhesive back
1шт.
23
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
3шт.
24
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
3шт.
25
195-102
WASHER,1/4"
flat, plated
3шт.
26
L115882
RELAY
starter
1шт.
27
D137003
BREAKER
circuit, 20 amperes
1шт.
28
D137002
BREAKER
circuit, 30 amperes
2шт.
29
D137652
BAR
PLATE - circuit breaker
1шт.
30
182-516
SCREW,Sl Pan Hd, #10 - 24 x 1/2"
Machine
2шт.
31
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
2шт.
32
195-516
WASHER,#12
Flat
2шт.
33
D128310
RELAY
30 amperes, cab and main
2шт.
34
D138725
GUARD
SPARE PART PLATE - harness
1шт.
35
D137004
BREAKER
circuit, 15 amperes
1шт.
