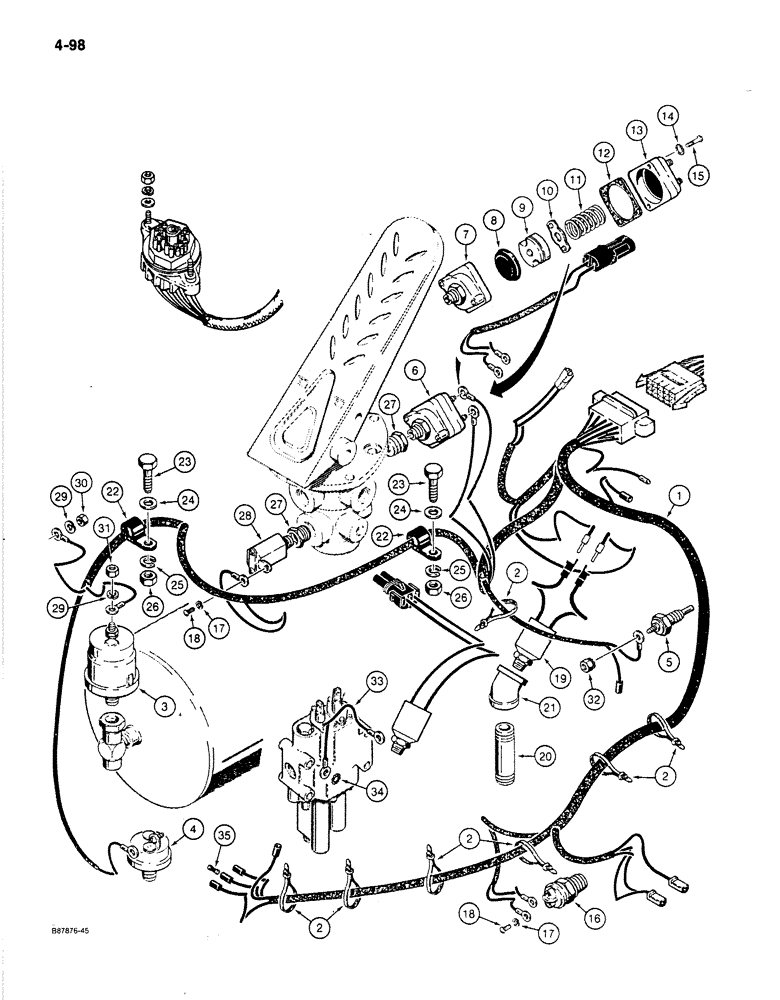

Запчасти Case 780C (4-098) - ELECTRICAL CIRCUIT, REAR HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

D129700

HARNESS

SPARE PART rear, used on models with 24 volt electrical circuit

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

3

L109945

TRANSMITTER

air pressure

1шт.

4

D65457

SWITCH

air parking brake

1шт.

5

L104249

SWITCH

SENDER - converter oil temperature, used on models with 24 volt electrical circuit

1шт.

6

L47989

SWITCH

stop lamp, Includes: Ref. 7 - 15

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

8

L33201

DIAPHRAGM

piston

1шт.

9

L33202

PISTON

switch

1шт.

10

L33203

TERMINAL STRIP

STRIP

1шт.

11

L33204

SPRING

piston return

1шт.

12

L33205

GASKET

cover

1шт.

13

L33206

COVER

switch

1шт.

14

193-6

LOCK WASHER,Ext Tooth, #10

2шт.

15

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

machine, pan head slotted, No. 10-24 NC x 3/4"

2шт.

16

E114399

SWITCH

neutral start

1шт.

17

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

3шт.

18

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

3шт.

19

L109377

SWITCH

clutch pressure, used on models with 24 volt electrical circuit

1шт.

20

221-138

NIPPLE, LUBE,Nipple, 1/4" NPT x 2 1/2"

SPARE PART 1/4" NPT x 2-1/2", clutch pressure switch

1шт.

21

221-1366

ELBOW

45 degree, 1/4" NPT

1шт.

22

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5/16", harness, if used

2шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

If used

2шт.

24

195-104

WASHER,3/8"

flat, , plated, if used 3/8"

2шт.

25

192-21

LOCK WASHER,3/8"

If used

2шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

If used

2шт.

27

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

REDUCER - 1/2" x 1/4" NPT

2шт.

28

L70507

SWITCH

low air pressure

1шт.

29

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

30

129-17

NUT,Hex, #10 - 24

1шт.

31

129-37

NUT,#10-32

1шт.

32

193-1000

NUT,Keps, w/LW,#10-32

ASSEMBLY - includes lock washer, No. 10-32 NF, plated oil temperature sender

1шт.

33

L108391

ELECTRICAL WIRE

WIRE ground, loader control valve, uses valve mounting bolt, used on models with 24 volt electrical circuit

1шт.

34

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

1шт.

35

223-38

FUSE,3 Amp, Type 3AG

3 amperes, 3 AG, hydraulic boom lock, used on models with 24 volt electrical circuit

1шт.
