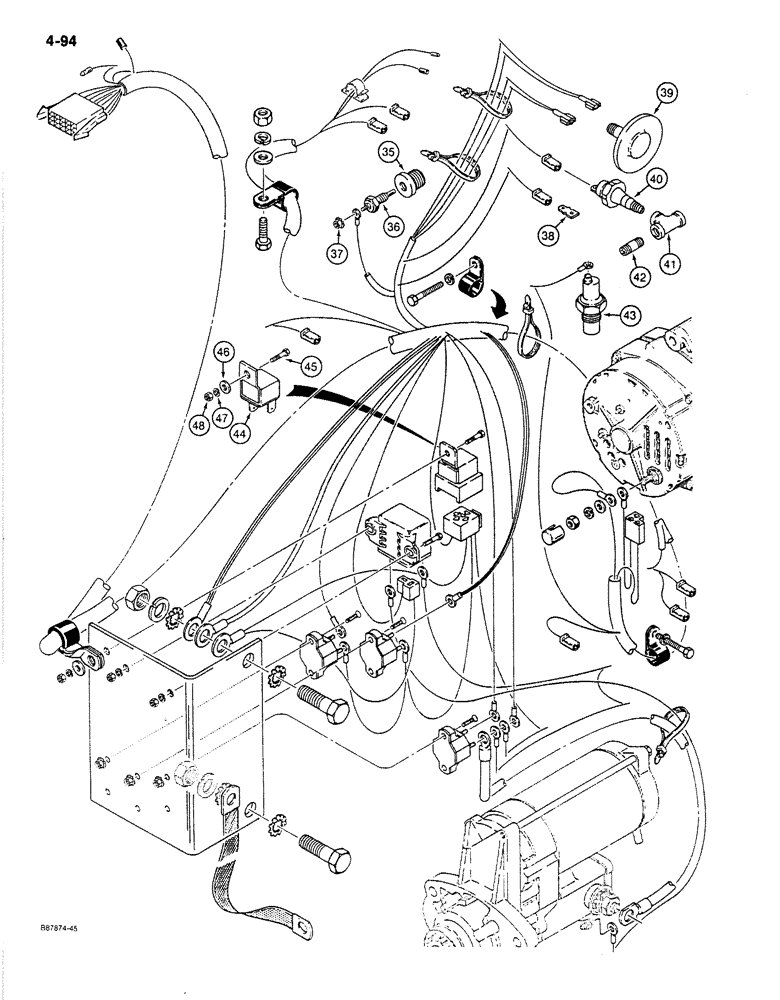

Запчасти Case 780C (4-094) - 24 VOLT ELECTRICAL CIRCUIT, FRONT HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

35

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

3/4" x 1/2" NPT, water temperature sender

1шт.

36

L104249

SWITCH

SENDER - water temperature

1шт.

37

193-1000

NUT,Keps, w/LW,#10-32

ASSEMBLY - includes lock washer, No. 10-32 NF, plated

1шт.

38

D131876

TERMINAL STRIP

straight tab, at fuel shutoff solenoid, included on engine

1шт.

39

L103131

INDICATOR

air cleaner restriction indicator, see Figure 2-16 for air cleaner and connecting parts

1шт.

40

A162297

SWITCH

SENDER - oil pressure

1шт.

41

221-1421

TEE,Pipe, 1/8" NPT

1/8" NPT

1шт.

42

115118

PIPE,Nipple, 1/8" NPT x 1"

1/8" NPT x 1"

1шт.

43

L107257

SWITCH

SENDER - temperature

1шт.

44

L118429

RELAY

cab, used with Refs. 45-48

1шт.

45

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

machine, pan head slotted, No. 10-24 NC x 3/4"

1шт.

46

95-3

WASHER,#12

flat, 3/16"

1шт.

47

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

1шт.

48

129-17

NUT,Hex, #10 - 24

1шт.

D137516

ELECTRICAL WIRE

WIRE KIT - harness, includes instruction sheet, Includes: Ref. 49 - 52

1шт.

49

D137515

HARNESS

front, used with Bosch or Delco-Remy alternator, not shown

1шт.

50

D136499

ELECTRICAL WIRE

WIRE jumper, used on models with Delco-Remy alternator only, not shown

1шт.

51

245428C1

CONNECTOR,ELECTRIC

harness to alternator, used with Ref. 50 wire on models with Delco-Remy alternator only, not shown

1шт.

52

877291R1

ELEC CONNECTOR,Female

harness to alternator, used on models with Bosch alternator only, not shown

1шт.
