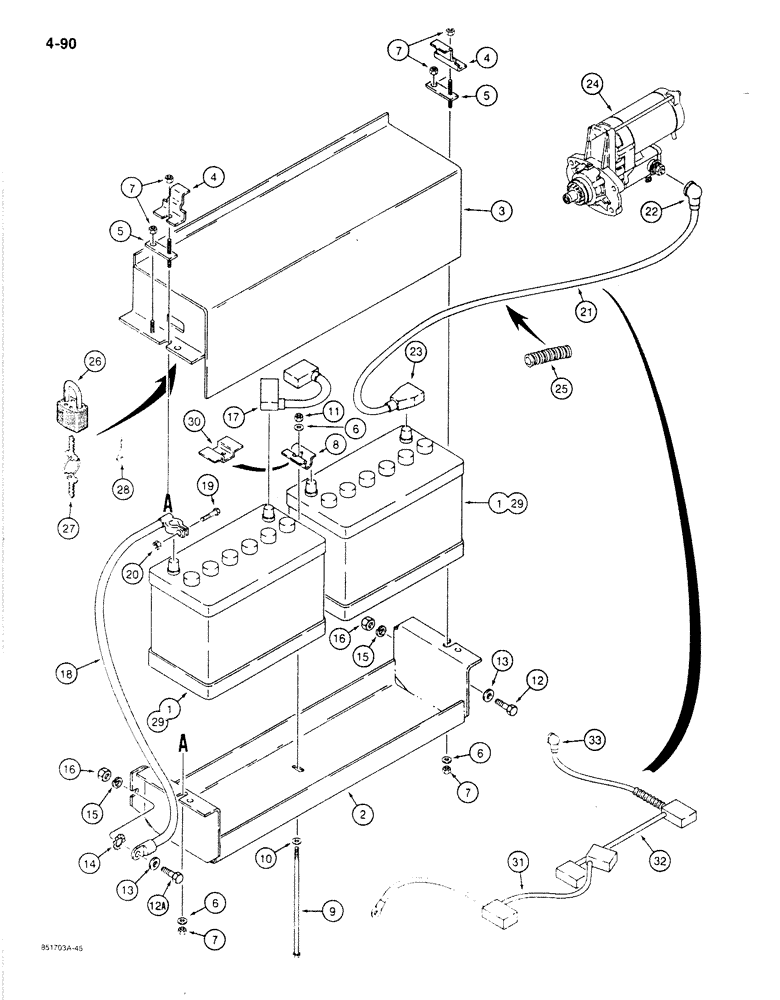

Запчасти Case 780C (4-090) - BATTERY CABLES AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

12 volt, service replacement (order BHC 30), used on models with 24 volt electrical circuit

2шт.

2

D132293

BOX

battery, lower

1шт.

3

D132294

COVER ASSY

battery box

1шт.

4

D132300

BRACKET

battery hold down, Serial Range: box-cover

2шт.

5

D132298

LATCH ASSY.

battery box

2шт.

6

195-104

WASHER,3/8"

flat, , plated 3/8"

3шт.

7

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, 5/16" - 18 NC

6шт.

8

D132310

BRACKET

battery hold down, battery to box, used on models with 24 volt electrical circuit

1шт.

9

113-261

BOLT,Hex, 3/8" - 16 x 9", Gr 5

1шт.

10

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8"

1шт.

11

131-217

LOCK NUT

hex, self-locking, 3/8" - 16 NC, plated, grade 8

1шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

12a

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

13

195-533

WASHER,1/2", SAE

2шт.

14

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

Used with battery to ground cable

1шт.

15

192-23

LOCK WASHER,1/2"

2шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

17

L116155

CABLE PULLING GRIP

jumper, battery to battery, used on models with 24 volt electrical circuit

1шт.

18

A165027

CABLE

battery to ground, used on models with 24 volt electrical circuit

1шт.

19

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

hex head, 5/16" - 18 NC x 1-3/8", used with A165027 cable only

1шт.

20

129-516

NUT

SPARE PART hex, 5/16" - 18 NC, used with A165027 cable only

1шт.

21

D132216

ELECTRICAL WIRE

WIRE CABLE - battery to starter, used on models with 24 volt electrical circuit, Includes: Ref. 22 - 23

1шт.

22

D128016

BOOT

COVER - cable, starter end

1шт.

23

A27072

COVER

cable, battery end

1шт.

24

REF

INSTRUCTION

STARTER ASSEMBLY - engine, for correct assembly and components, see parts list Figures 4-84 or 4-86

1шт.

25

D134323

GUARD

SPARE PART SLEEVE - cable

1шт.

26

D93753

PADLOCK

includes keys, battery box, Includes: Ref. 27 - 28

2шт.

27

R29555

KEY

for Master padlock only

2шт.

28

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

29

A180406

BATTERY

12 volt, service replacement (order BMF 31E), special parts used on models w/ 12 V. elec. circuit

2шт.

30

D140115

CLIP

BRACKET - battery hold down, battery to box, special parts used on models w/ 12 V. elec. circuit

1шт.

31

D136709

CABLE

negative, battery to ground, includes hardware, must be grounded to chassis boss, special parts used on models w/ 12 V. elec. circuit, Includes: Ref. 33

1шт.

32

D136708

CABLE

positive, battery to starter, includes hardware, special parts used on models w/ 12 V. elec. circuit, Includes: Ref. 33

1шт.

33

D128016

BOOT

COVER - cable, starter end, special parts used on models w/ 12 V. elec. circuit

1шт.
