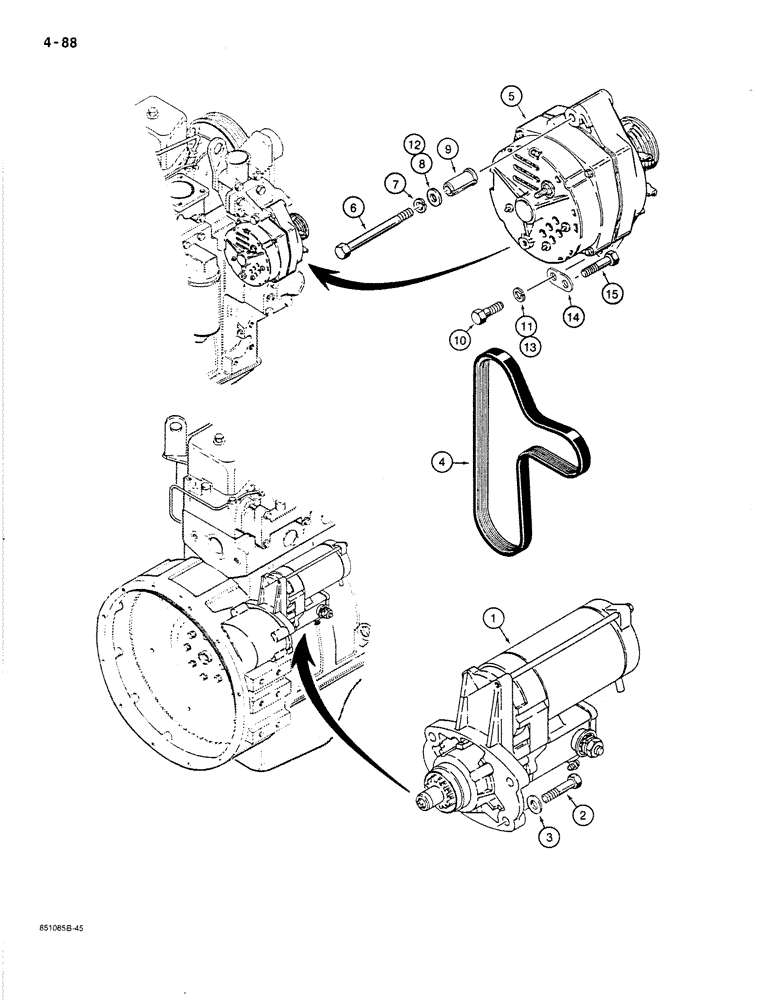

Запчасти Case 780C (4-088) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine, for correct assembly and components, see parts list Figure 4-84 or 4-86

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

3шт.

3

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, 3/8", hardened, plated

3шт.

4

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Drive, Alternator and Fan

1шт.

5

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - electrical, for correct assembly and components, see parts list Figures 4-78 - 4-82

1шт.

6

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

7

892-1110

LOCK WASHER,M10

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Used with 24 volt electrical circuit

1шт.

9

J902469

SPACER

alternator

1шт.

10

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

11

892-1108

LOCK WASHER,M8

plated, used with 24 volt electrical circuit

1шт.

12

195-525

WASHER,3/8", SAE

Used with 12 volt electrical circuit

1шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

Used with 12 volt electrical circuit

1шт.

14

J903089

SUPPORT

alternator mounting

1шт.

15

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.
