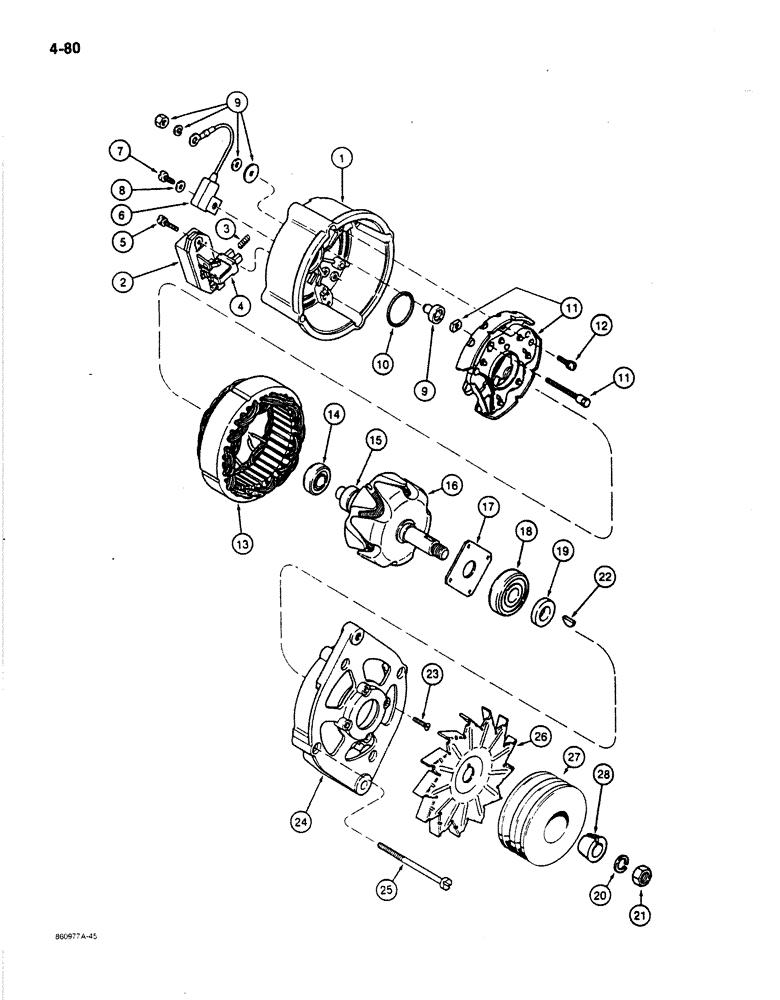

Запчасти Case 780C (4-080) - A186124 ALTERNATOR, USED ON MODELS WITH 24 VOLT ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

A186124

ALTERNATOR

ASSEMBLY - engine, for 24 volt system, Bosch No. B120402296, type K1-28V 3/45A, Includes: Ref. 1 - 25

1шт.

AR186124

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC186124

CORE-ALTERNATOR

Return Number

1шт.

104021A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 35 Amp Alternator

1шт.

104021A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 35 Amp Alternator

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 40 Amp Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 40 Amp Alternator

1шт.

A187916

ALTERNATOR,24V, 45A

Alternator, 24V, 65 Amp

1шт.

A187916GV

ALTERNATOR

Value

1шт.

AR187916

REMAN-ALTERNATOR

Remanufactured Alternator; 45A 24V

1шт.

AC187916

CORE-ALTERNATOR

Return Number

1шт.

1

A187509

HOUSING

collector ring end

1шт.

2

A187505

REGULATOR

voltage, Includes: Ref. 3 - 4

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - compression

2шт.

4

NSS

NOT SOLD SEPARAT

BRUSH ASSEMBLY - alternator

1шт.

5

A186194

SCREW,M4 x 18mm

Voltage regulator retaining

2шт.

6

A186195

CAPACITOR

alternator

1шт.

7

625589C1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8

Fillister head, capacitor retaining

1шт.

8

A186196

WASHER

flat, capacitor screw

1шт.

9

3079135R1

TERMINAL CONNECTOR

HARDWARE - terminal

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - ball bearing seal, housing, order 3079386R1

1шт.

11

A187507

RECTIFIER

BRIDGE - alternator, includes hardware

1шт.

12

A187504

SCREW

with washer, rectifier bridge retaining

3шт.

13

A187506

STATOR

ASSEMBLY - alternator

1шт.

14

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BALL - rotor, collector ring end

1шт.

15

A187503

RING

collector

1шт.

16

A187502

ROTOR ASSY.

alternator

1шт.

17

3078379R1

COVER

PLATE - bearing retaining, drive end cover

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BALL - rotor, drive end

1шт.

3078897R1

SET OF PARTS

KIT - rotor retaining, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

RING - spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - lock, rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - rotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY - pulley retainer

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - bearing retaining plate

4шт.

24

A187501

COVER

drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

cover retaining

4шт.

26

221425R1

FAN

alternator

1шт.

A77414

KIT

alternator pulley, Includes: Ref. 27 - 28

1шт.

27

NSS

NOT SOLD SEPARAT

PULLEY - drive, order A77414 kit

1шт.

28

NSS

NOT SOLD SEPARAT

RETAINER - pulley, order A77414 kit

1шт.
