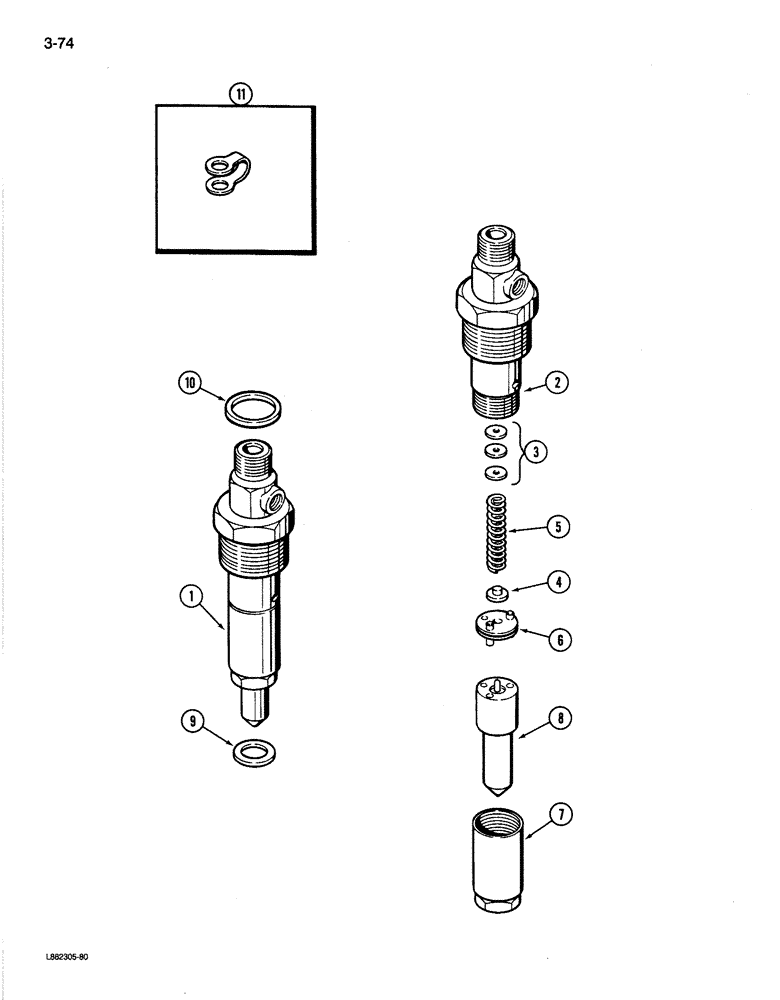

Запчасти Case 780C (3-74) - FUEL INJECTION NOZZLE, 6T-590 ENGINE (03) - FUEL SYSTEM

A48186

KIT

shim, nozzle opening pressure (One kit will repair four nozzles), Includes: Ref. 3

1шт.

1

J909476

NOZZLE CAP

ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 8

6шт.

Part of Injection Nozzle Kit, P/N A77554

1шт.

1

JR909476

REMAN-FUEL INJECTOR

Assembly - remanufactured Includes: Ref. 2 - 8

6шт.

1

JC909476

CORE-FUEL INJECTOR

Return Part Number - use this part number to return nozzle for credit

6шт.

1

JR919343

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

6шт.

1

JC919343

CORE-FUEL INJECTOR

Return Number Nozzle

6шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - injector

1шт.

3

1806233C1

SHIM,1.00mm Thk

Nozzle (5 in kit)

1шт.

3

1806234C1

SHIM,1.04mm Thk

Nozzle (5 in kit)

1шт.

3

1806235C1

SHIM,1.08mm Thk

Nozzle (5 in kit)

1шт.

3

1806236C1

SHIM,1.10mm Thk

Nozzle (5 in kit)

1шт.

3

1806237C1

SHIM,1.14mm Thk

Nozzle (5 in kit)

1шт.

3

1806238C1

SHIM,1.18mm Thk

Nozzle (5 in kit)

1шт.

3

1806239C1

SHIM,1.20mm Thk

Nozzle (5 in kit)

1шт.

3

1806240C1

SHIM,1.24mm Thk

Nozzle (5 in kit)

1шт.

3

1806241C1

SHIM,1.28mm Thk

Nozzle (5 in kit)

1шт.

3

1806242C1

SHIM,1.30mm Thk

Nozzle (5 in kit)

1шт.

3

1806243C1

SHIM,1.34mm Thk

Nozzle (5 in kit)

1шт.

3

1806244C1

SHIM,1.38mm Thk

Nozzle (5 in kit)

1шт.

3

1806245C1

SHIM,1.40mm Thk

Nozzle (5 in kit)

1шт.

3

1806246C1

SHIM,1.44mm Thk

Nozzle (5 in kit)

1шт.

3

1806247C1

SHIM,1.48mm Thk

Nozzle (5 in kit)

1шт.

3

1806248C1

SHIM,1.50mm Thk

Nozzle (5 in kit)

1шт.

3

1806249C1

SHIM,1.54mm Thk

Nozzle (5 in kit)

1шт.

3

1806250C1

SHIM,1.58mm Thk

Nozzle (5 in kit)

1шт.

3

1806251C1

SHIM,1.60mm Thk

Nozzle (5 in kit)

1шт.

3

1806252C1

SHIM,1.64mm Thk

Nozzle (5 in kit)

1шт.

3

1806253C1

SHIM,1.68mm Thk

Nozzle (5 in kit)

1шт.

3

1806254C1

SHIM,1.70mm Thk

Nozzle (5 in kit)

1шт.

3

1806255C1

SHIM,1.74mm Thk

Nozzle (5 in kit)

1шт.

3

1806256C1

SHIM,1.78mm Thk

Nozzle (5 in kit)

1шт.

3

1806257C1

SHIM,1.80mm Thk

Nozzle (5 in kit)

1шт.

3

1806258C1

SHIM,1.84mm Thk

Nozzle (5 in kit)

1шт.

3

1806259C1

SHIM,1.88mm Thk

Nozzle (5 in kit)

1шт.

3

1806260C1

SHIM,1.90mm Thk

Nozzle (5 in kit)

1шт.

3

1806261C1

SHIM,1.94mm Thk

Nozzle (5 in kit)

1шт.

3

1806262C1

SHIM,1.98mm Thk

Nozzle (5 in kit)

1шт.

4

J905153

SPINDLE

SEAT - nozzle pressure spring

1шт.

5

J905152

SPRING

nozzle pressure

1шт.

6

J905154

PLATE

STOP ASSEMBLY - nozzle valve

1шт.

7

A48201

NUT

cap, nozzle tip

1шт.

8

NSS

NOT SOLD SEPARAT

TIP ASSEMBLY - injector nozzle

1шт.

9

J900808

SEAL

nozzle

6шт.

Whenever a nozzle is removed from cylinder head, J900808 gasket must be replaced before nozzle is installed.

1шт.

Part of Injection Nozzle Kit, P/N A77554

1шт.

10

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

injector

6шт.

A77554

NOZZLE INJECTION

KIT - new, Includes: Ref. 1, 2, 8 and 9

1шт.
