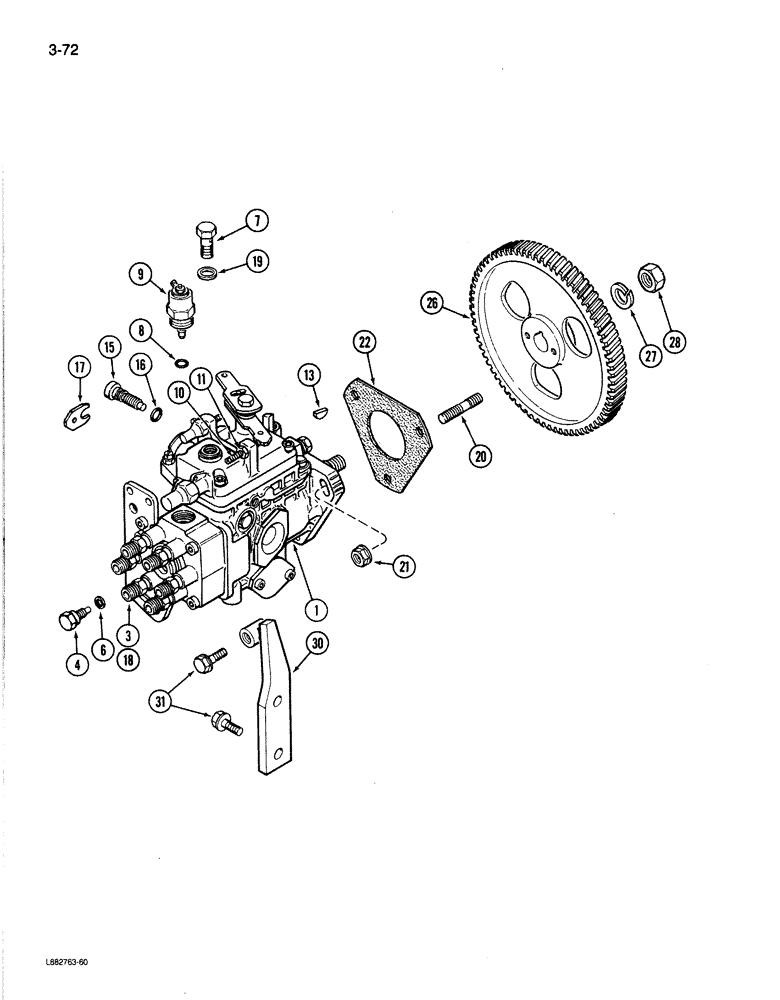

Запчасти Case 780C (3-72) - FUEL INJECTION PUMP AND DRIVE, 6T-590 ENGINE (03) - FUEL SYSTEM

JR916969

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP - NA Only

1шт.

JC916969

CORE-INJECTION PUMP

Return number - For N.A. only

1шт.

JR908207

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - remanufactured (North America Only), Includes: Ref. 3 - 19

1шт.

JC908207

CORE-HYDRAULIC PUMP

RETURN NUMBER - injection pump (Use this number to return pump core for credit)

1шт.

1

J908207

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - new, Includes: Ref. 3 - 19

1шт.

3

J903571

ADAPTER

delivery valve

6шт.

4

J903572

BLEED SCREW,M8 x 1 x 23.10mm

vent

1шт.

6

3053133R1

SEALING RING,M8 x 11.5 x 1

vent screw

1шт.

7

J905465

BANJO BOLT

overflow

1шт.

8

J903577

SEAL

solenoid

1шт.

9

J903575

SOLENOID

ASSEMBLY - shut down, 12 volt

1шт.

9

J903576

SOLENOID

ASSEMBLY - shut down, 24 volt

1шт.

10

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

low idle stop

1шт.

11

J904783

NUT

idle screw

1шт.

13

J902332

KEY

pump gear retainer

1шт.

15

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

timing lock

1шт.

16

J904785

O-RING,8 mm ID x 2.5 mm

timing lock screw

1шт.

17

J904786

PLATE

timing lock

1шт.

18

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

delivery valve

6шт.

19

NSS

NOT SOLD SEPARAT

WASHER - overflow screw

1шт.

20

J902501

STUD

STUD - pump mounting, M8 x 49 mm

3шт.

21

J900589

NUT

hex flange, M8

3шт.

22

J914389

GASKET

pump mounting (Replaces J905685)

1шт.

26

J911331

GEAR

pump drive (Replaces J902236)

1шт.

27

192-24

LOCK WASHER,9/16"

1шт.

28

A77444

JAM NUT

hex jam, 9/16 inch NF

1шт.

30

J905313

LEVER

BRACE - fuel pump

1шт.

31

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

hex, M8 x 1.25 x 20 mm

3шт.
