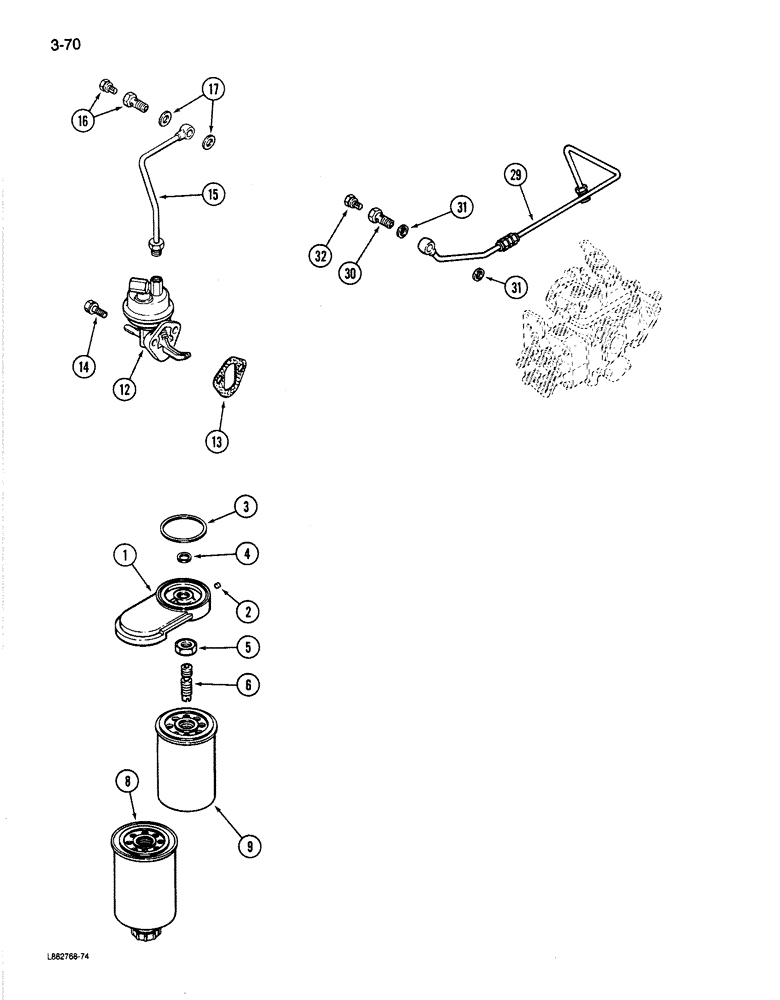

Запчасти Case 780C (3-70) - FUEL FILTER AND LIFT PUMP, 6T-590 ENGINE (03) - FUEL SYSTEM

1

J904362

HEAD

ASSEMBLY - fuel filter, Includes: Ref. 2

1шт.

2

A77432

PLUG

expansion, 0.26 mm OD

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING fuel filter head, 70 mm ID (Replaces J903546)

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING fuel filter stud, 14 mm ID (Replaces J903846)

1шт.

5

J903293

JAM NUT

hex, M16 x 2 mm

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel

1шт.

A77470

SEPARATOR

KIT - fuel, Includes: Ref. 8 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

FILTER - fuel, primary

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER - fuel, secondary

1шт.

12

J904374

PUMP

ASSEMBLY - lift, fuel

1шт.

13

J914304

GASKET

fuel lift pump (Replaces J904044)

1шт.

14

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

hex, M8 x 20 mm

2шт.

15

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

ASSEMBLY - fuel supply

1шт.

16

J905860

BANJO BOLT

banjo hex, M12 x 1.5 x 24 mm

1шт.

17

J903037

PACKING RING

sealing, 12 x 18 x 1 mm

2шт.

29

J912783

FUEL TUBE,363.9, 84 mm L

ASSEMBLY - fuel supply (Replaces J908986)

1шт.

30

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex special (Order J905860)

1шт.

31

J903037

PACKING RING

sealing, 12 x 18 x 1 x mm

2шт.

32

NSS

NOT SOLD SEPARAT

SCREW - hex special, vent (Order J905860)

1шт.
