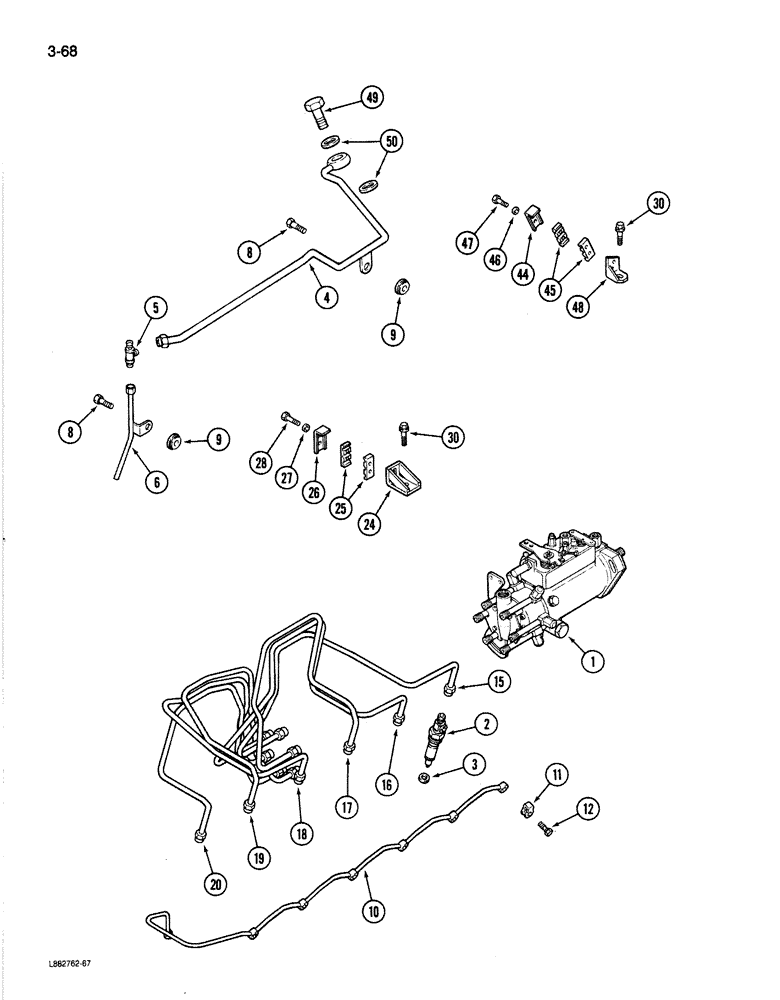

Запчасти Case 780C (3-68) - FUEL INJECTION SYSTEM, 6T-590 ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, See Figure 3-72

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, See Figure 3-74

6шт.

3

J900808

SEAL

injector

6шт.

4

J905705

FUEL TUBE,4.76 mm OD

ASSEMBLY - fuel drain

1шт.

5

222-121

TEE,3/16", Flex Tubing

Union (Remove and discard hex nuts and sleeves at assembly)

1шт.

6

J905692

FUEL TUBE

ASSEMBLY - fuel return, tee to fuel tank

1шт.

8

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

9

J900267

SEAL

ASSEMBLY - cover bolt

2шт.

10

J909696

TUBE

ASSEMBLY - manifold, fuel drain (Replaces J905691)

1шт.

11

J903380

SEAL

connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

6шт.

15

J909438

FUEL TUBE,2 mm ID x 6.4 mm OD x 746 mm L

ASSEMBLY - fuel injector, No. 1 cylinder

1шт.

16

J903486

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.5 mm L

ASSEMBLY - fuel injector, No. 2 cylinder

1шт.

17

J903487

FUEL TUBE,2 mm ID x 6.4 mm OD x 741.8 mm L

ASSEMBLY - fuel injector, No. 3 cylinder

1шт.

18

J903488

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.3 mm L

ASSEMBLY - fuel injector, No. 4 cylinder

1шт.

19

J903489

FUEL TUBE,2 mm ID x 6.4 mm OD x 748.1 mm L

ASSEMBLY - fuel injector, No. 5 cylinder

1шт.

20

J903490

FUEL TUBE,2 mm ID x 6.4 mm OD x 745.3 mm L

ASSEMBLY - fuel injector, No. 6 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube, Includes: Ref. 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube

1шт.

25

NSS

NOT SOLD SEPARAT

ISOLATOR - fuel tube

2шт.

26

NSS

NOT SOLD SEPARAT

PLATE - clamp

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - flat, 5 mm

2шт.

28

NSS

NOT SOLD SEPARAT

BOLT - hex

2шт.

30

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

flange hex, bracket retaining

2шт.

A77529

BRACKET

ASSEMBLY - fuel tube, Includes: Ref. 44 - 48

1шт.

44

NSS

NOT SOLD SEPARAT

BRACE - fuel tube retaining

1шт.

45

NSS

NOT SOLD SEPARAT

ISOLATOR - fuel tube

2шт.

46

NSS

NOT SOLD SEPARAT

WASHER - flat, 5 mm

2шт.

47

NSS

NOT SOLD SEPARAT

SCREW - hex, M5 x 20 mm

2шт.

48

NSS

NOT SOLD SEPARAT

BRACE - fuel tube

1шт.

49

NSS

NOT SOLD SEPARAT

BOLT - banjo connector, See Figure 3-70

1шт.

50

NSS

NOT SOLD SEPARAT

WASHER - sealing, See Figure 3-70

1шт.
