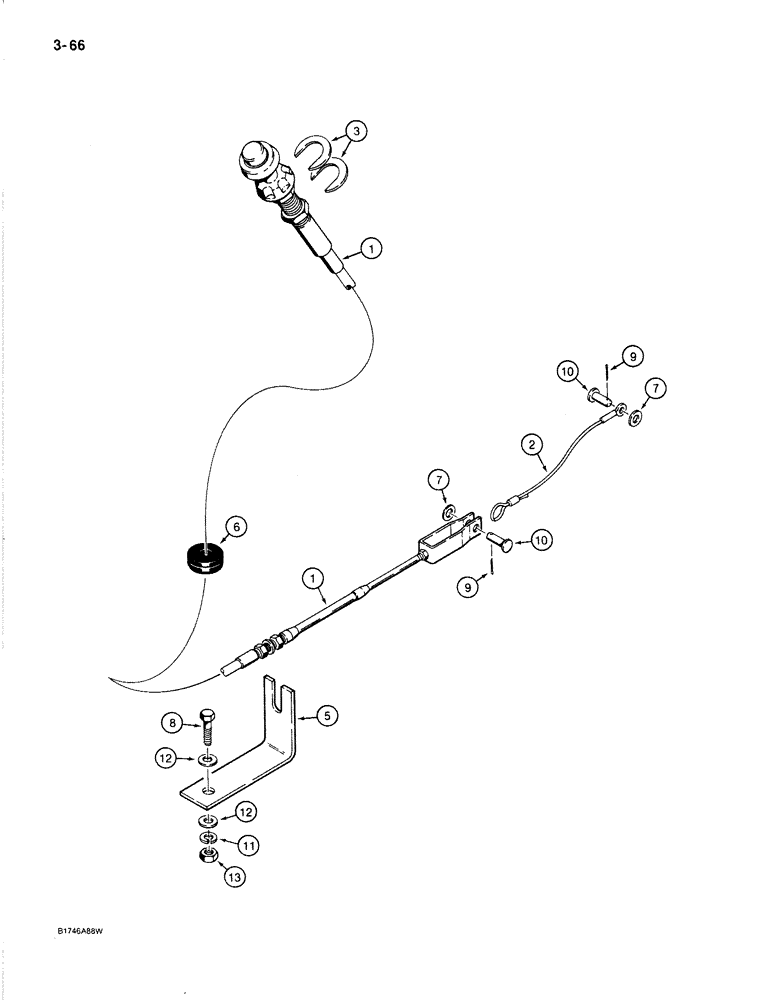

Запчасти Case 780C (3-66) - HAND THROTTLE CONTROL, WITH BUTTON RELEASE (03) - FUEL SYSTEM

D137517

THROTTLE

KIT - conversion, converts models with lever release in Figure 3-64 to hand throttle control with button release, includes instruction sheet and 321-2785 and 321-5288 decals shown in Figure 9-500, Includes: Ref. 1 - 12

1шт.

1

D136064

CABLE

hand throttle, includes hardware

1шт.

2

D136592

CABLE

wire, hand throttle

1шт.

3

D137378

WASHER

slotted, special

2шт.

4

D137380

BRACKET

clutch cutout, weld-on, in loader control lever console, not shown

1шт.

5

D139284

BRACKET

cable

1шт.

6

L77821

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

cable

1шт.

7

495-21031

WASHER,1/4"

flat, , zinc plated 1/4"

2шт.

8

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex head, 5/16" - 18 NC x 1-1/4", zinc plated

1шт.

9

132-328

COTTER PIN,1/16" x 1/2"

2шт.

10

141-52

CLEVIS PIN,1/4" x .770"

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

12

195-103

WASHER,5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

Not included in kit

1шт.
