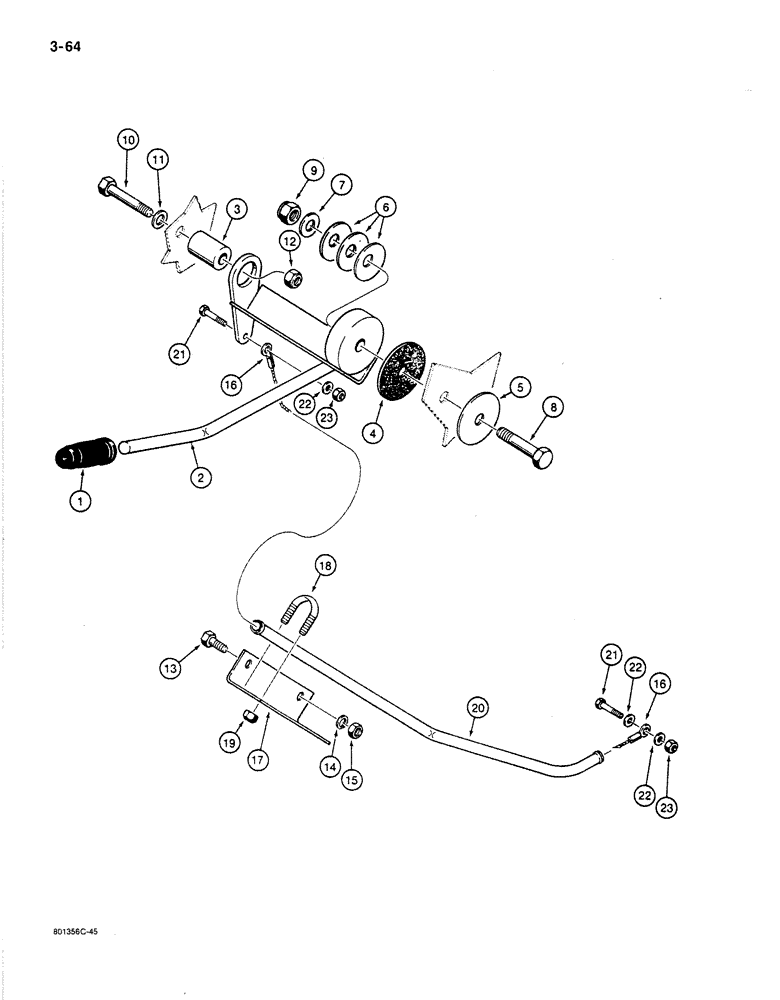

Запчасти Case 780C (3-64) - HAND THROTTLE CONTROL, WITH LEVER RELEASE (03) - FUEL SYSTEM

1

L52476

HANDLE

hand throttle lever

1шт.

2

L108300

LEVER

backhoe hand throttle

1шт.

3

L102794

SPACER

mounting

1шт.

4

R15071

DISC

friction

1шт.

5

195-2055

WASHER,17/32" x 2 1/4" x .180"

flat, 1/2", special, 2-1/4" OD

1шт.

6

R14771

WASHER

SPRING - Belleville, hand throttle lever

3шт.

7

95-8

WASHER,1/2"

Flat

1шт.

8

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1шт.

9

131-70

NUT,1/2"-13, GB

hex, 1/2" - 13 NC, plated

1шт.

10

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

11

95-6

WASHER,3/8"

1шт.

12

131-52

NUT,3/8"-16, GC

hex, self-locking, 3/8" - 16 NC, plated

1шт.

13

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

D126821

CABLE

wire

2шт.

17

L103611

BRACKET

throttle tube holder

1шт.

18

L78949

U-BOLT

U-BOLT - bracket

2шт.

19

131-4

LOCK NUT,5/16"-18, GB

4шт.

20

D128905

TUBE

cable, backhoe hand throttle

1шт.

21

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

22

195-102

WASHER,1/4"

flat, plated

3шт.

23

131-2

NUT,1/4"-20, GB

2шт.
