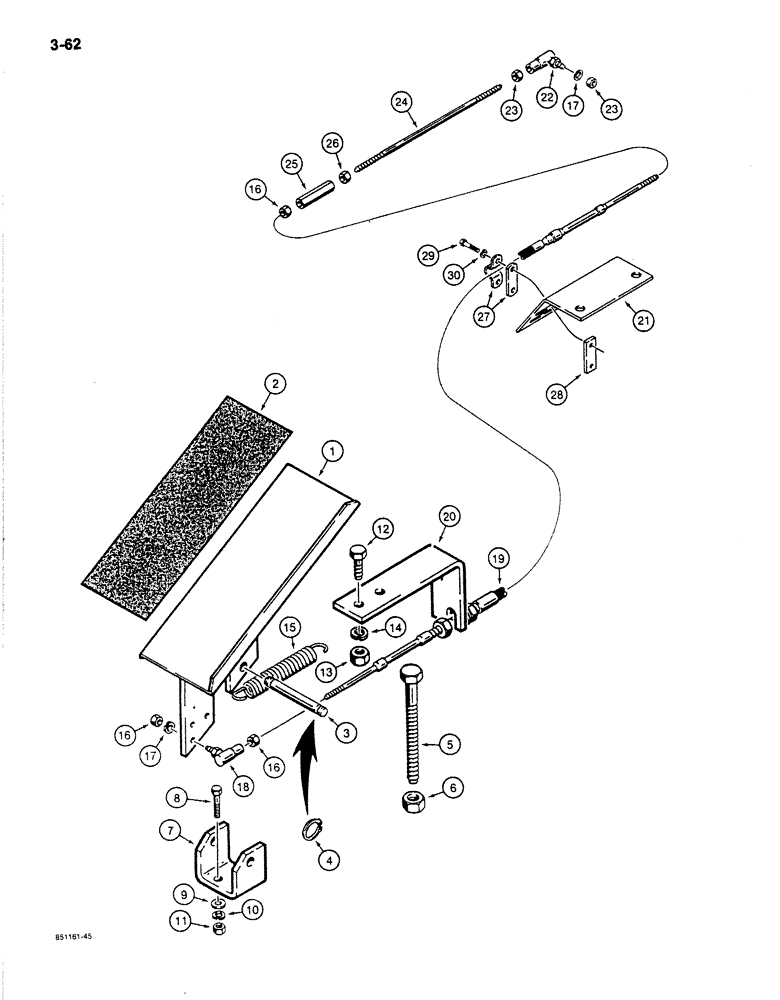

Запчасти Case 780C (3-62) - FOOT THROTTLE CONTROL (03) - FUEL SYSTEM

1

L101781

PEDAL

accelerator, foot

1шт.

2

D55216

PAD,2" x 9"

Accelerator pedal

1шт.

3

D66055

PIN,9.53mm OD x 79.25mm L

pedal pivot

1шт.

4

D95093

RING

snap, pin retaining

2шт.

5

113-469

BOLT,Hex, 1/2" - 13 x 5", Gr 5, Full Thd

1шт.

6

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

7

L48002

BRACKET

accelerator pedal pivot

1шт.

8

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

9

195-102

WASHER,1/4"

flat, plated

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

14

192-21

LOCK WASHER,3/8"

2шт.

15

L101777

SPRING

extension

1шт.

16

129-37

NUT,#10-32

3шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

18

L12437

BALL JOINT,#10 - 32 x 7/8"

cable

1шт.

19

L111265

CABLE

throttle control

1шт.

20

L101778

BRACKET

SPARE PART accelerator cable mounting

1шт.

21

L111552

BRACKET

throttle cable

1шт.

22

L12437

BALL JOINT,#10 - 32 x 7/8"

cable, attaches to fuel injection pump lever

1шт.

23

129-37

NUT,#10-32

2шт.

24

L108065

ROD

accelerator linkage

1шт.

25

L14227

CONNECTOR, ELEC

CONNECTOR TURNBUCKLE - cable

1шт.

26

129-315

NUT,#10-32, LH

LH thread

1шт.

27

L12441

CLAMP

two-piece, throttle control cable

1шт.

28

L106009

RETAINER

clamp

1шт.

29

113-1003

SCREW,Hex, #10 - 24 x 3/4", Gr 5

2шт.

30

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.
