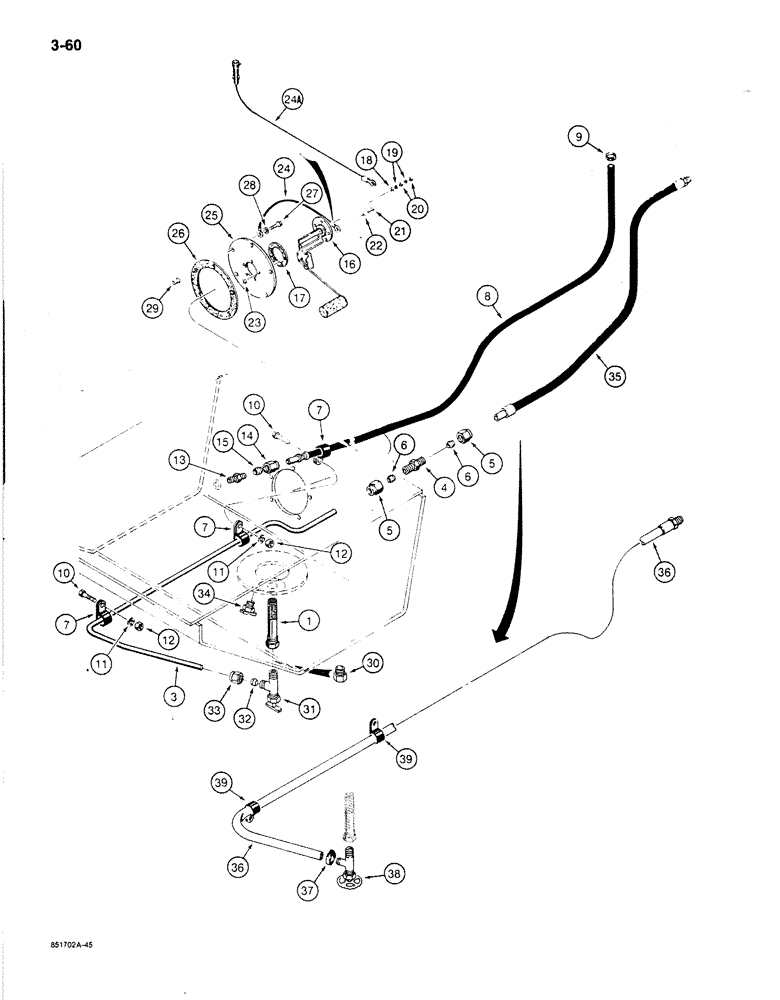

Запчасти Case 780C (3-60) - FUEL TANK AND FUEL LINES (03) - FUEL SYSTEM

1

L58022

STRAINER ASSY.

fuel tank

1шт.

3

L101839

FUEL TUBE,0.375" OD

fuel supply, used with Ref. 35 hose, if used

1шт.

222-5

FITTING,5/8"-24 Flex Tube

ASSEMBLY - compression, straight, 3/8" tube, used with Ref. 3 tube and Ref. 35 hose only, if used, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

5

222-114

NUT,5/8"-24

compression, fitting

2шт.

6

222-104

SLEEVE,3/8" Tube

fitting

2шт.

7

T42284

CLAMP

hose

1-3шт.

8

L111334

HOSE

55" (1397 mm) long, fuel return

1шт.

9

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Includes screw

1шт.

10

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

11

102-23

WASHER - lock, 1/2", plated

2шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

ASSEMBLY - compression, straight, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

14

87017024

TUBE NUT,1/2"-24

compression, fitting

1шт.

15

222-102

SLEEVE,1/4" Tube

1шт.

16

L110016

SENDER UNIT

fuel gauge, Includes: Ref. 17 - 20

1шт.

17

A11822

GASKET

sender

1шт.

18

95-3

WASHER,#12

flat, 3/16"

1шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

20

129-17

NUT,Hex, #10 - 24

2шт.

21

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

machine, pan head slotted, No. 10-24 NC x 3/4", plated

5шт.

22

L77590

WASHER

special

5шт.

23

86625057

NUT,#10-24, GB

5шт.

24

A31060

ELECTRICAL WIRE

WIRE sender ground, used on models with 24 volt electrical circuit

1шт.

24a

D138645

ELECTRICAL WIRE

WIRE sender ground, attaches to harness, used on models with 12 volt electrical circuit

1шт.

25

L77441

PLATE

fuel sender

1шт.

26

L79876

GASKET,4.57mm Thk

plate

1шт.

27

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

5шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

5шт.

29

L13176

NUT

special

5шт.

30

221-1086

REDUCER,3/8" NPT x 1/4" NPT

REDUCER - 3/8" x 1/4" NPT, used with D74027 valve, if used

1шт.

D74027

VALVE

ASSEMBLY - shutoff, fuel tank outlet, used with Ref. 3 tube only, if used, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - shutoff valve

1шт.

32

222-654

FERRULE,3/8" Tube, Comp

fitting

1шт.

33

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

compression, fitting

1шт.

34

217-81

VALVE

fuel tank drain, if used

1шт.

35

D131317

HOSE ASSY.

29-1/2" (750 mm) long, fuel supply, used with Ref. 3 tube, if used

1шт.

36

D135528

FUEL HOSE

79-5/16" (2015 mm) long, fuel supply, tank to pump, replaces Ref. 3 tube and Ref. 35 hose used on some models

1шт.

37

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

Ref. 36 hose

1шт.

38

A154051

COCK, DRAIN

VALVE - shutoff, fuel tank outlet, used with Ref. 36 hose

1шт.

39

T50103

CLAMP

P-type, used with Ref. 36 hose

2шт.
