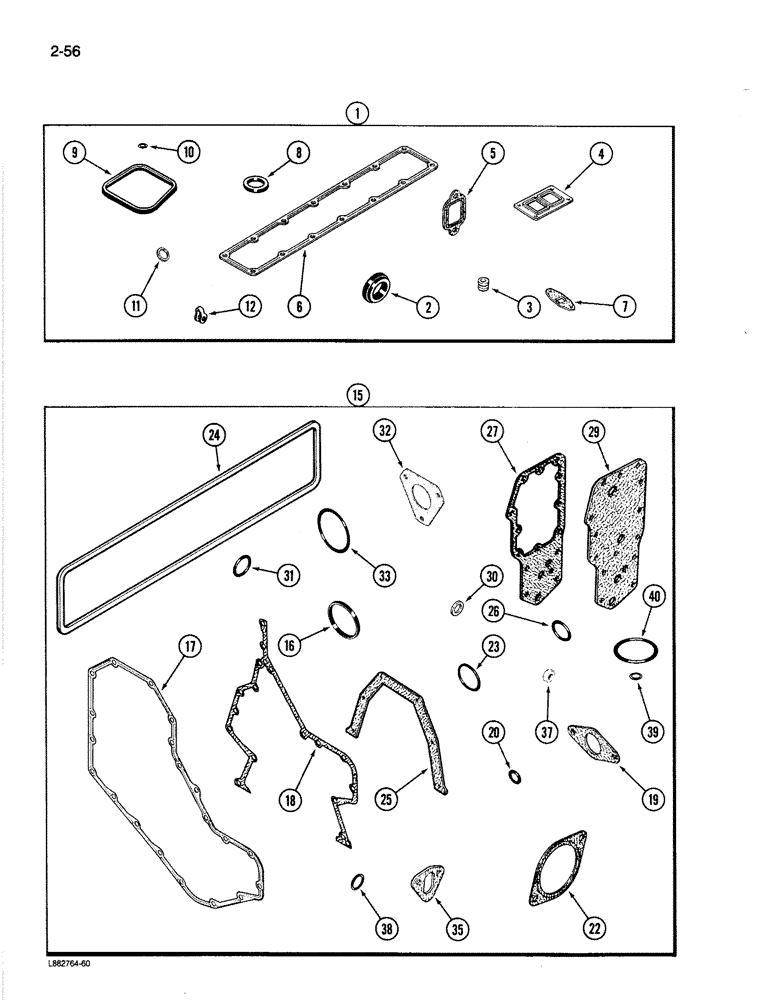

Запчасти Case 780C (2-56) - GASKET KITS, 6T-590 ENGINE, VALVE GRIND (02) - ENGINE

1

A77493

GASKET KIT

valve grind, Includes: Ref. 2 - 12

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Fig. 2-41.

1шт.

2

J903301

GASKET

housing

1шт.

3

J901097

SEAL

valve

12шт.

4

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

exhaust manifold

6шт.

6

J914029

GASKET

intake manifold (Replaces J907036)

1шт.

7

J914388

GASKET

drain tube (Replaces J901805)

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap

1шт.

9

J902666

GASKET

rocker cover

6шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt (Replaces J901837)

6шт.

11

J900808

SEAL

injector

6шт.

12

J903380

SEAL

connector

6шт.

15

A77641

GASKET KIT

engine block , cylinder, Includes: Ref. 16 - 40

1шт.

For complete engine overhaul, order 1 each of valve grind kit, cylinder block kit, oil pan kit Fig. 2-38, front and rear crankshaft seal kit Fig. 2-50 and required cylinder head gasket Fig. 2-40.

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

cover, cylinder block

1шт.

17

J914385

GASKET,1.02mm Thk

cover to housing (Replaces J905143), cylinder block

1шт.

18

J914384

GASKET

housing to block (Replaces J907836), cylinder

1шт.

19

J905595

GASKET

timing pin housing, cylinder block

1шт.

20

J903927

O-RING,15.6 mm ID

sealing, cylinder block

1шт.

22

A77441

GASKET

cover plate, cylinder block

1шт.

23

22290R1

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

sealing (Replaces A30395), cylinder block

1шт.

24

J904776

GASKET

tappet cover, cylinder block

1шт.

25

J914386

GASKET

Seal Retainer (Replaces J901019), cylinder block

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

sealing, cylinder block

1шт.

27

J914387

GASKET

oil cooler (Replaces J904427), cylinder block

1шт.

29

J912532

GASKET

filter head (Replaces J905589), cylinder block

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

seal, plug, cylinder block

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

engine oil filter (Replaces J906704), cylinder block

1шт.

32

J914389

GASKET

fuel pump (Replaces J905685), cylinder block

1шт.

33

A157927

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

flywheel housing, cylinder block

1шт.

35

J914304

GASKET

fuel lift pump (Replaces J904044), cylinder block

1шт.

37

J900267

SEAL

ASSEMBLY - cover bolt, cylinder block

6шт.

38

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

plug (Replaces J904469), cylinder block

1шт.

39

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING fuel filter stud, 14 mm ID (Replaces J903846), cylinder block

1шт.

40

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING fuel filter head, 70 mm ID (Replaces J903546), cylinder block

1шт.
