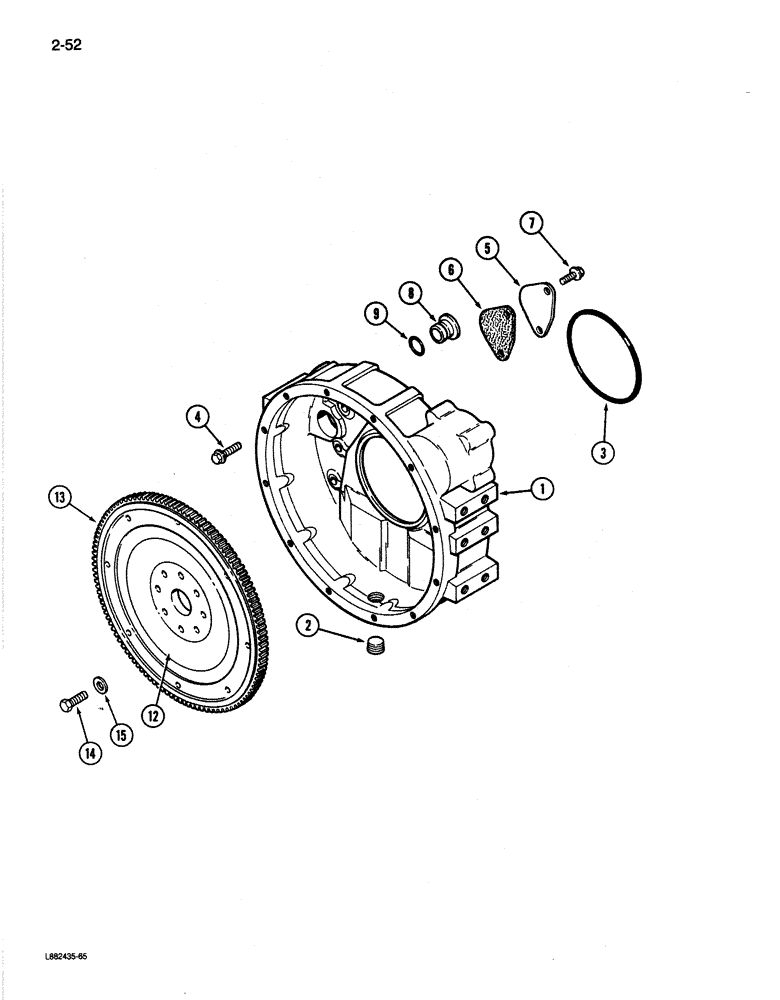

Запчасти Case 780C (2-52) - FLYWHEEL AND HOUSING, 6T-590 ENGINE (02) - ENGINE

1

J903282

HOUSING

flywheel

1шт.

2

221-845

PLUG,Hex Soc, 3/4"-14

housing drain

1шт.

3

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel housing (Replaces A157927)

1шт.

4

J910540

FLANGE BOLT,Hex, M12 x 40mm, Cl 10.9

housing retaining (Replaces J901408)

8шт.

5

J908095

PLATE

cover

1шт.

6

J908096

GASKET

cover plate

1шт.

7

J902735

BOLT,M8 - 1.25 x 21 mm

hex, plate retaining

2шт.

8

J910248

PLUG

housing (Replaces J904470)

1шт.

9

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

sealing (Replaces J904469)

1шт.

12

J908832

FLYWHEEL WITH GEAR

ASSEMBLY - engine (Replaces J905430), Includes: Ref. 13

1шт.

13

J905427

GEAR

ring, flywheel

1шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

15

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, flywheel bolt

8шт.
