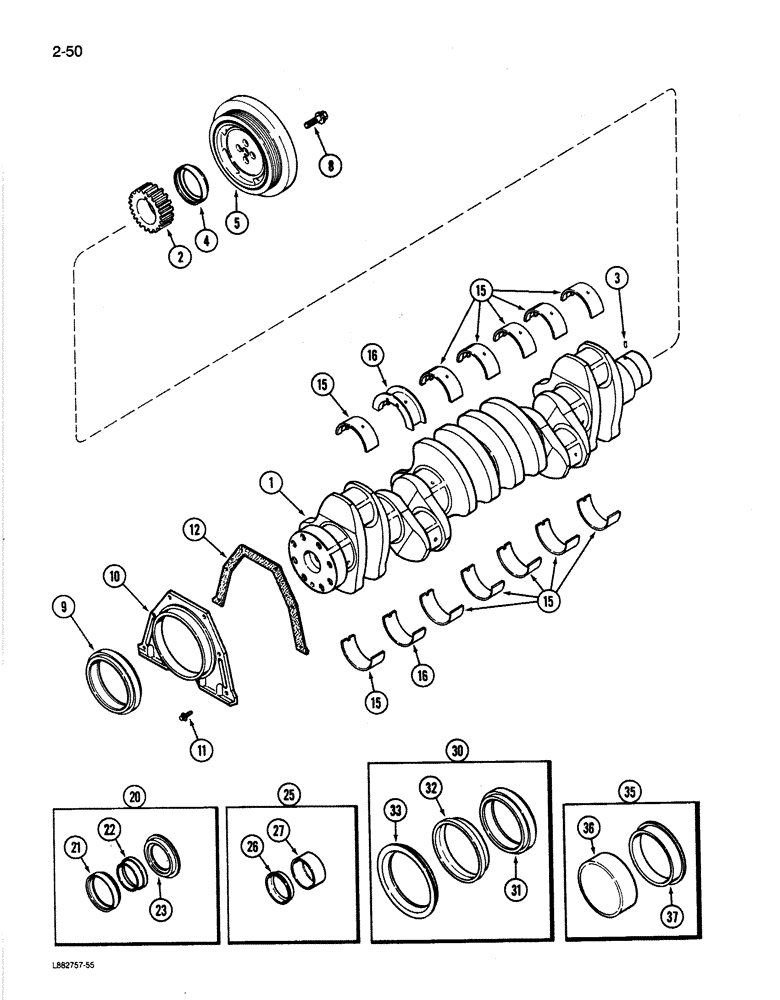

Запчасти Case 780C (2-50) - CRANKSHAFT, 6T-590 ENGINE (02) - ENGINE

JR908032

REMAN-CRANKSHAFT

ASSEMBLY - engine, (North America Only), Includes: Ref. 2 - 3

1шт.

JC908032

CORE-CRANKSHAFT

RETURN NUMBER - crankshaft assembly (Use this part number to return crankshaft for credit)

1шт.

1

J908032

CRANKSHAFT

ASSEMBLY - engine, new, Includes: Ref. 2 - 3

1шт.

2

J901258

GEAR

crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front (Order Ref 20)

1шт.

5

J911422

DAMPER

PULLEY - crankshaft dampener (Replaces J907190)

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange head, M12 x 36 mm

4шт.

9

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, (Order Ref 30)

1шт.

10

J913447

SEAL RETAINER

rear (Replaces J906526)

1шт.

11

J913638

FLANGE BOLT,Hex, M6 x 15mm, Cl 8.8, Full Thd

6шт.

12

J914386

GASKET

seal retainer (Replaces J901019)

1шт.

15

A77405

CRANKSHAFT BEARING

KIT - main (set) upper and lower, standard

6шт.

15

A77472

BEARING SET

KIT - main (set) upper and lower, 0.25 mm oversize

6шт.

15

A77474

BEARING SET

KIT - main, (set) upper and lower, 0.5 mm oversize

6шт.

15

A77476

BEARING SET

KIT - main (set) upper and lower, 0.75 mm oversize

6шт.

15

A77478

BEARING SET

KIT - main (set) upper and lower, 1.0 mm oversize

6шт.

16

A77406

CRANKSHAFT BEARING

KIT - main thrust, upper and lower, standard

1шт.

16

A77473

THRUST BEARING

KIT - main thrust, upper and lower, 0.25 mm oversize

1шт.

16

A77475

THRUST BEARING

KIT - main thrust, upper and lower, 0.5 mm oversize

1шт.

16

A77477

THRUST BEARING

KIT - main, upper and lower, 0.75 mm oversize

1шт.

16

A77479

THRUST BEARING

KIT - main, upper and lower, 1.0 mm oversize

1шт.

20

J904353

GASKET KIT

oil, crankshaft front, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J906080

PACKAGE, REPAIR

WEAR SLEEVE - crankshaft front, Includes: Ref. 26 - 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

30

J909411

SEAL

KIT - oil, crankshaft, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

35

J906081

SLEEVE

WEAR KIT - crankshaft rear, Includes: Ref. 36 - 37

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
