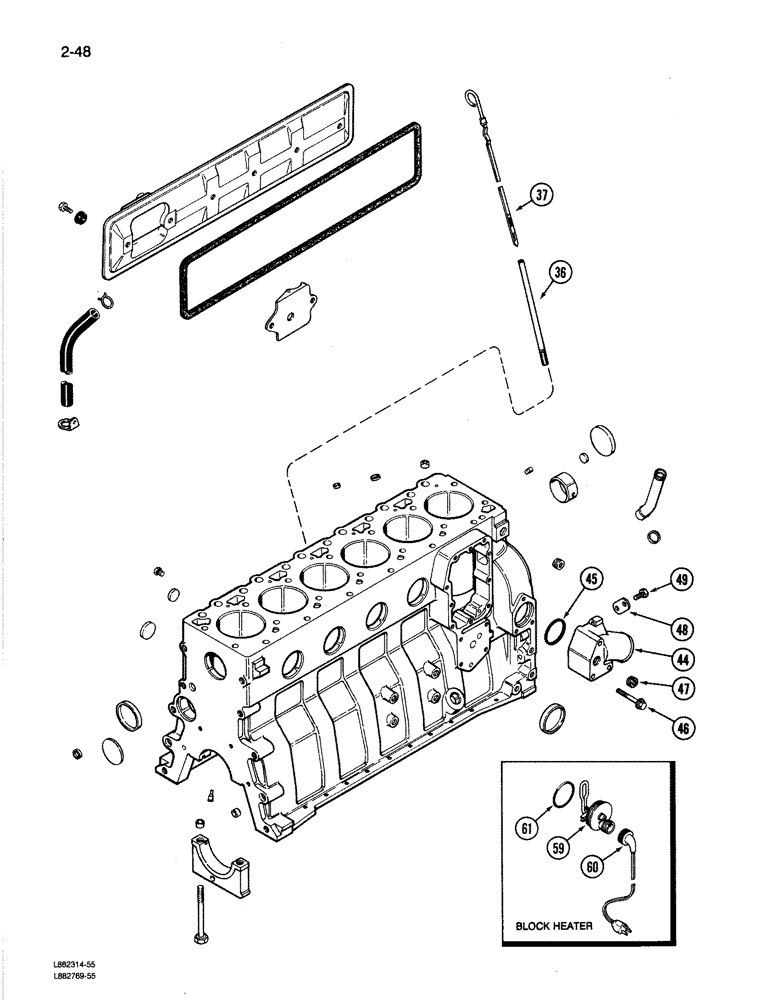

Запчасти Case 780C (2-48) - CYLINDER BLOCK, 6T-590 ENGINE (CONT.) (02) - ENGINE

36

J905779

TUBE,9.52 mm OD x 228 mm L

engine oil dipstick

1шт.

37

J905785

DIPSTICK

engine oil

1шт.

44

J903103

MANIFOLD

water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

46

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

hex flange head, M10 x 1.50 x 75 mm

3шт.

47

A77429

PLUG

hex socket pipe, 1/2-14 PT

1шт.

48

J903089

SUPPORT

alternator mounting

1шт.

49

813-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

A77634

KIT

HEATER engine block, Includes: Ref. 59 - 61

1шт.

59

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77634), block

1шт.

60

J905113

CABLE

engine block heater

1шт.

61

J910517

O-RING

heater sealing, block

1шт.
