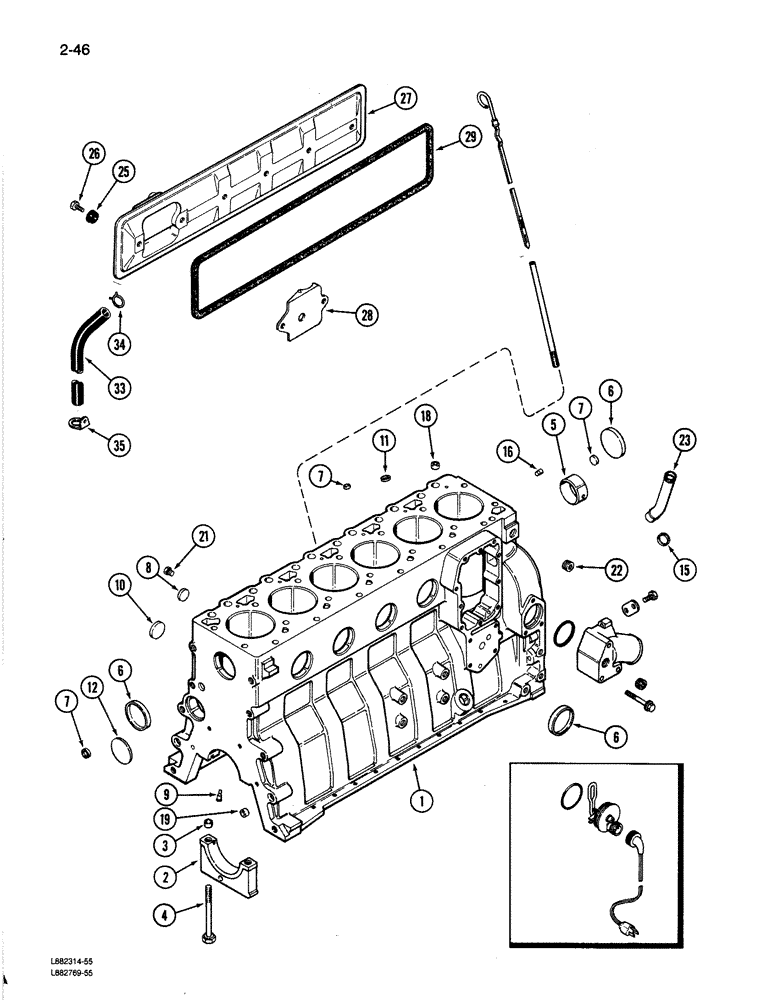

Запчасти Case 780C (2-46) - CYLINDER BLOCK, 6T-590 ENGINE (02) - ENGINE

A174107

ENGINE ASSEMBLY

ENGINE ASSY complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

JR910510

ENGINE, EXCHANGE

ENGINE (EXCHANGE) BLOCK ASSEMBLY - short, remanufactured (For North America only), Includes: Ref. 2 - 8

1шт.

JC910510

CORE-ENGINE

RETURN NUMBER - engine short block (Use this part number to return block core for credit)

1шт.

1989096C2R

ENGINE, EXCHANGE

ENGINE (EXCHANGE) Remanufactured, For N.A. Only

1шт.

J910510

SKELETON ENGINE

BLOCK ASSEMBLY - short, (New) (Includes stripped block pistons, connecting rods and bearings, crankshaft and bearings) (Order block and J905813 kit), Includes: Ref. 2 - 8

1шт.

J933183

SKELETON ENGINE

Engine Short Block - Tier 0

1шт.

JR933183

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

JC933183

CORE-SHORT ENGINE

Return Number, For N.A. Only

1шт.

1

J905810

CRANKCASE

BLOCK ASSEMBLY - stripped engine (Order block and J905813 kit), Includes: Ref. 2 - 8

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front, See Figure 2-44

1шт.

6

J900965

PLUG

expansion, 59 mm OD

6шт.

7

J900956

PLUG

expansion, 18 mm OD

3шт.

8

23624R1

PLUG

expansion, 26 mm

4шт.

J905813

PACKAGE, REPAIR

block hardware, Includes: Ref. 9 - 22

1шт.

9

J901020

NOZZLE CAP

piston cooling

6шт.

10

J900958

PLUG

expansion, 32 mm OD

1шт.

11

J900955

PLUG

expansion, 10 mm OD

2шт.

12

J900687

PLUG

expansion, (Welch) 60 mm OD

1шт.

15

A77439

PLUG

expansion, 0.886 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

dowel, locating, 16 mm

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

hex socket pipe, 1/8-27 PT

2шт.

22

A77429

PLUG

hex socket pipe, 1/2-14 PT

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

turbocharger oil drain

1шт.

25

J900267

SEAL

ASSEMBLY - cover bolt

4шт.

26

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

27

J911822

COVER

tappet

1шт.

28

J907586

BAFFLE

tappet cover

1шт.

29

J904776

GASKET

tappet cover

1шт.

33

J906593

HOSE

Breather

1шт.

34

J904230

CLAMP,25.4mm

spring hose

1шт.

35

J909670

CLIP

retaining

1шт.
