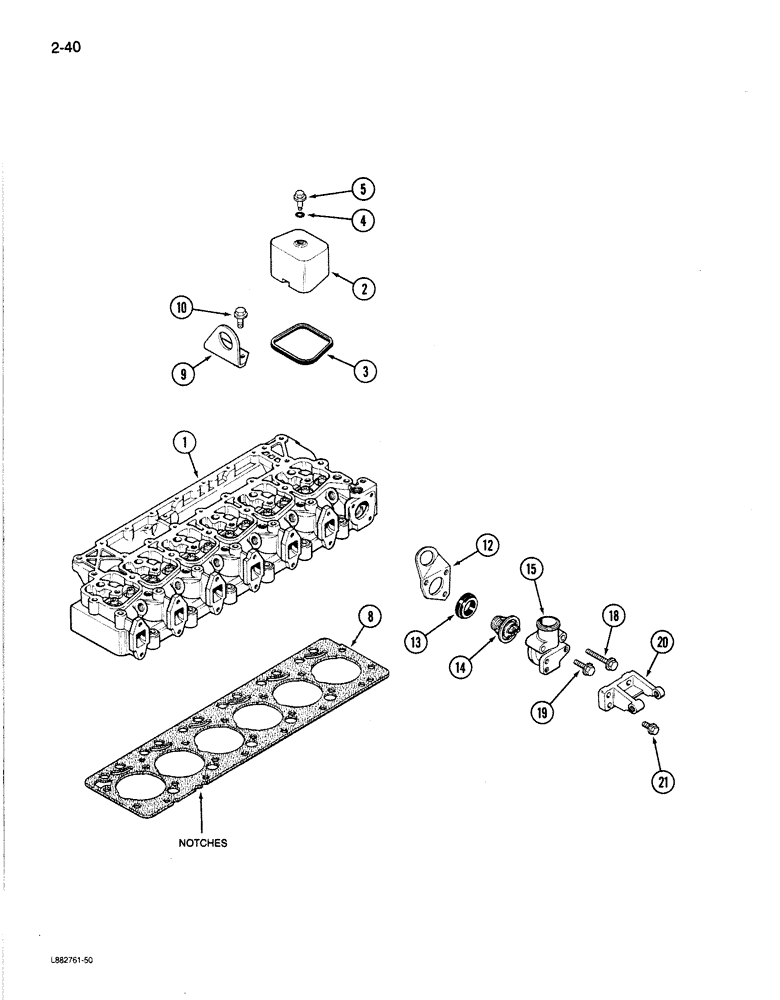

Запчасти Case 780C (2-40) - CYLINDER HEAD COVER, 6T-590 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, See Figure 2-42

1шт.

2

J902604

COVER

rocker

6шт.

3

J902666

GASKET

rocker cover

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt (Replaces J901837)

5шт.

5

J907049

BOLT,Hex

special, M8 x 1.25 x 21 mm

6шт.

8

J907057

CYLINDER HEAD GASKET

cylinder head (Standard)

1шт.

8

J907058

GASKET

cylinder head (0.13 mm thicker)

1шт.

8

J907059

GASKET

cylinder head (0.50 mm thicker)

1шт.

9

J908118

BRACKET

lifting, rear

1шт.

10

813-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

hex, M12 x 1.75 x 25 mm

2шт.

12

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

13

J903301

GASKET

housing, thermostat

1шт.

14

J912587

THERMOSTAT

water, 95 degree C (Replaces J910706) housing

1шт.

15

J903756

HOUSING

thermostat

1шт.

18

J903096

FLANGE BOLT,Hex, M8 x 70mm, Cl 8.8

hex flange head, M8 x 1.25 x 70 mm

2шт.

19

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

hex flange head, M8 x 1.25 x 35 mm

1шт.

20

J910713

SUPPORT

alternator mounting, thermostat and housing

1шт.

21

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

flanged head, M8 x 25 mm

3шт.
