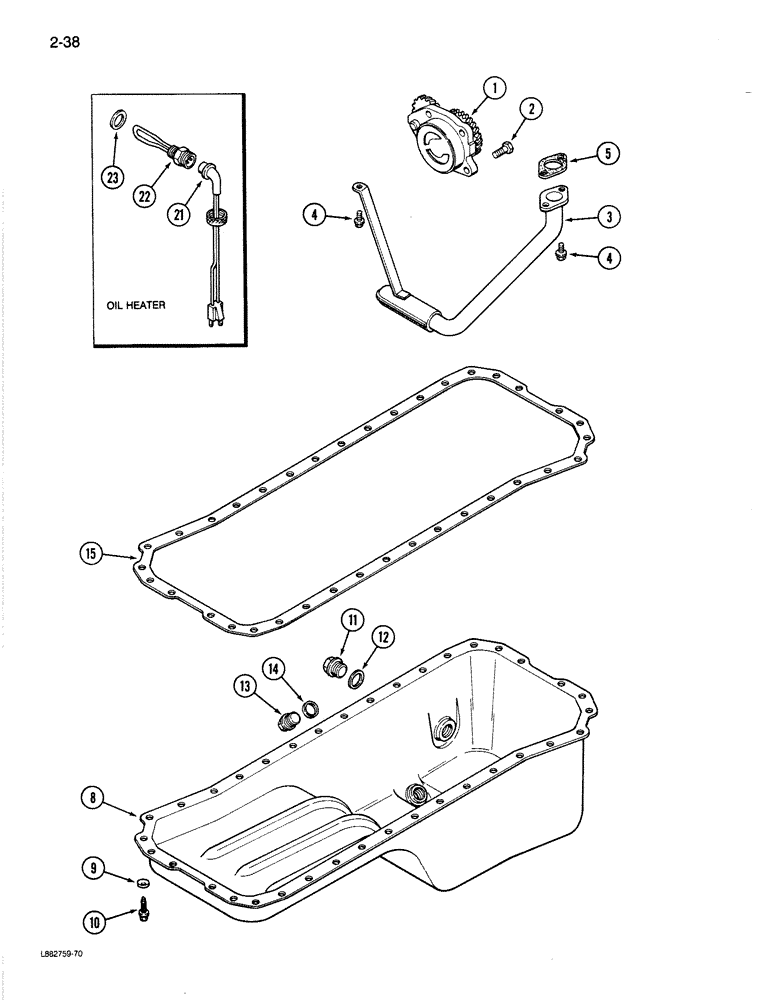

Запчасти Case 780C (2-38) - OIL PUMP AND OIL PAN, 6T-590 ENGINE (02) - ENGINE

JR906414

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP ASSEMBLY - oil, (North America Only)

1шт.

JC906414

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

1

J906414

PUMP, ENGINE OIL

ASSEMBLY - (New)

1шт.

JR941742

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

3

J909373

TUBE

SCREEN - oil suction, 10" tube

1шт.

4

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

3шт.

5

J914383

GASKET

mounting, tube (Replaces J905468)

1шт.

Part of Oil Pan Gasket Kit, P/N A77492

1шт.

8

J901288

PAN, ENGINE OIL

PAN, OIL

1шт.

9

J907537

SPRING WASHER

spring

36шт.

10

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

M18 x 16

36шт.

11

J904386

PLUG

pipe, heater hole, M18

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

seal, plug

1шт.

13

J900215

PLUG

drain, oil (Alternate with J911638 plug)

1шт.

13

J911638

PLUG,M18 x 1.5

drain, oil magnetic (Alternate with J900215 plug)

1шт.

14

J900216

PACKING RING

seal, drain plug

1шт.

Part of Oil Pan Gasket Kit, P/N A77492

1шт.

15

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A77491)

1шт.

Part of Oil Pan Gasket Kit, P/N A77492

1шт.

A77492

GASKET KIT

oil pan, Includes: ref. no. 3, 14, 15

1шт.

A77490

KIT

heater, engine oil, Includes: Ref. 21 - 22

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77490), eng oil

1шт.

22

J905113

CABLE

engine block heater, oil

1шт.

23

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing

1шт.
