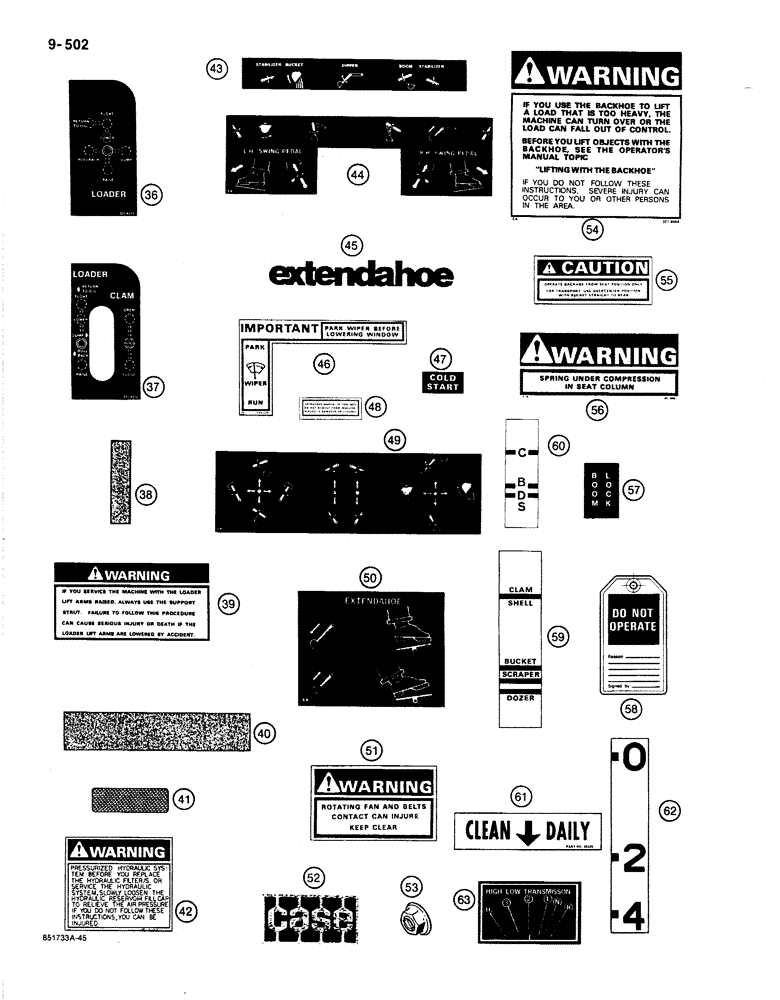

Запчасти Case 780C (9-502) - DECALS (09) - CHASSIS/ATTACHMENTS

D128400

KIT

decal, 780C, continued, also includes model number decal for the 680K that is not used on this model, Includes: Ref. 36 - 55 and Ref. 1 - 35 on Figure 9-500

1шт.

36

321-6211

DECAL

loader control pattern, two spool

1шт.

37

321-6212

DECAL

loader control pattern, three spool

1шт.

38

D55216

PAD,2" x 9"

Steps, canopy models

1шт.

39

321-6671

DECAL

Warning, right-hand loader lift arm support strut usage

1шт.

40

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Operators compartment, side, canopy models

2шт.

41

D87870

DECAL

reflector, red, rear

2шт.

42

321-666

DECAL

Warning, pressurized hydraulic system

2шт.

43

D123941

DECAL

extendahoe control pattern, upper

1шт.

44

D123940

DECAL

extendahoe control pattern, lower

1шт.

45

D123945

DECAL

extendahoe

2шт.

46

F45339

DECAL

Important, park wiper before lowering window

1шт.

Not included in the decal kit and must be ordered separately.

1шт.

47

L111358

DECAL

Cold Start

1шт.

48

321-6452

DECAL

operator manual location, tool box

1шт.

49

D123978

DECAL

backhoe control pattern, two lever

1шт.

50

D123948

DECAL

Extendahoe, pedal control pattern

1шт.

51

321-3596

DECAL

Warning, rotating fan and belts

2шт.

52

321-4739

EMBLEM

on grille

1шт.

53

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Push, attaches emblem to grille

2шт.

54

321-6046

WARNING DECAL

Backhoe load lifting

1шт.

55

321-3056

DECAL

Caution, transport

1шт.

56

321-6774

WARNING DECAL

Spring under compression in seat column

1шт.

Not included in the decal kit and must be ordered separately.

1шт.

57

L111356

DECAL

Boom Lock

1шт.

Not included in the decal kit and must be ordered separately.

1шт.

58

321-4614

TAG

TAG - Do not operate

1шт.

Not included in the decal kit and must be ordered separately.

1шт.

59

321-2654

DECAL

clam bucket indicator, use on models with L108616 bucket only

1шт.

Not included in the decal kit and must be ordered separately.

1шт.

60

D139863

DECAL

clam bucket indicator, use on models with D139626 bucket only

1шт.

61

S45226

DECAL

Clean Daily, clam bucket

1шт.

Not included in the decal kit and must be ordered separately.

1шт.

62

S81109

DECAL

clam indicator

1шт.

Not included in the decal kit and must be ordered separately.

1шт.

63

321-5831

DECAL

12 volt, neg ground electrical system

4шт.
