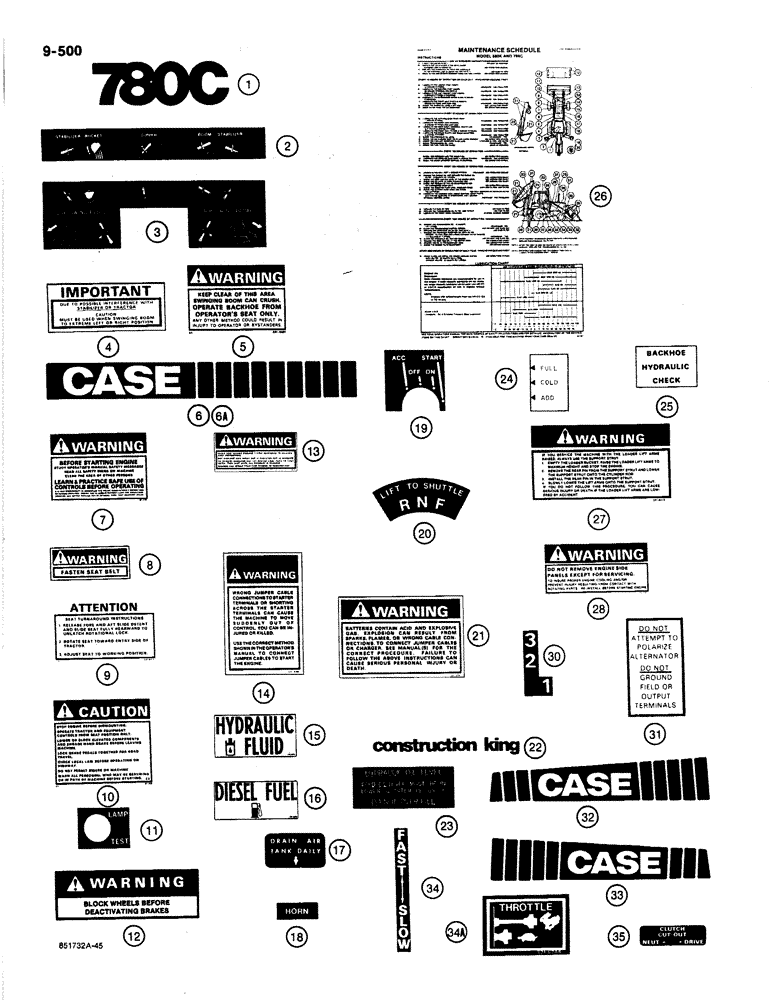

Запчасти Case 780C (9-500) - DECALS (09) - CHASSIS/ATTACHMENTS

DE128400

KIT - decal, 780C, also includes model number decal for the 680K that is not used on this model, Includes: Ref. 1 - 35 and 36 - 55 on Figure 9-502

1шт.

1

D126876

DECAL

780C

4шт.

2

D123977

DECAL

standard backhoe control pattern, upper

1шт.

3

D123976

DECAL

standard backhoe control pattern, lower

1шт.

4

321-3058

DECAL

Important, swinging boom

1шт.

5

321-4481

DECAL

Warning, swinging boom

2шт.

6

D123959

DECAL

Case, with right-hand treads, rear closure, cab models

1шт.

6a

D123951

DECAL

Case, with right-hand treads, rear closure, ROPS canopy models

1шт.

7

321-3705

DECAL

Warning, before starting engine

1шт.

8

321-3060

DECAL

Warning, fasten seat belt

1шт.

9

321-6215

DECAL

Attention, seat turnaround instructions

1шт.

10

321-3022

DECAL

Caution, stop engine before dismounting

1шт.

11

D123942

DECAL

Lamp Test, if used, not required on models with 12 volt electrical circuit

1шт.

12

321-6328

DECAL

Warning, block wheels before deactivating brake

2шт.

13

321-6672

DECAL

Warning, hot coolant

1шт.

14

321-6718

DECAL

Warning, jump start instructions

1шт.

15

321-6376

DECAL

Hydraulic Fluid

1шт.

16

321-6374

DECAL

Diesel Fuel

1шт.

17

321-1077

DECAL

Drain Air Tank Daily

1шт.

18

321-3294

DECAL

Horn

1шт.

19

D123946

DECAL

ignition switch pattern

1шт.

20

L111363

DECAL

Lift to Shuttle, lever position

1шт.

21

321-6714

DECAL

Warning, batteries contain acid and explosive gas

1шт.

22

L112009

DECAL

constuction king

2шт.

23

L113157

DECAL

Hydraulic Oil Level, cold oil

2шт.

24

L112139

DECAL

radiator recovery bottle liquid level

1шт.

25

321-2798

DECAL

Backhoe Hydraulic Check

1шт.

26

D127910

DECAL

Maintenance Schedule

1шт.

27

321-6413

DECAL

Warning, left-hand loader lift arm support strut usage

1шт.

28

321-5701

DECAL

Warning, rotating parts

2шт.

29

RESERVED

1шт.

30

L111361

DECAL

range control

1шт.

31

321-1061

DECAL

alternator instructions

1шт.

32

L111348

DECAL

case, with tapered treads, left-hand side panel

1шт.

33

L111353

DECAL

case, with tapered treads, right-hand side panel

1шт.

34

L111355

DECAL

Slow-Fast, throttle, if used

1шт.

34a

321-5288

DECAL

throttle, if used

1шт.

35

321-2785

DECAL

Clutch Cutout

1шт.
