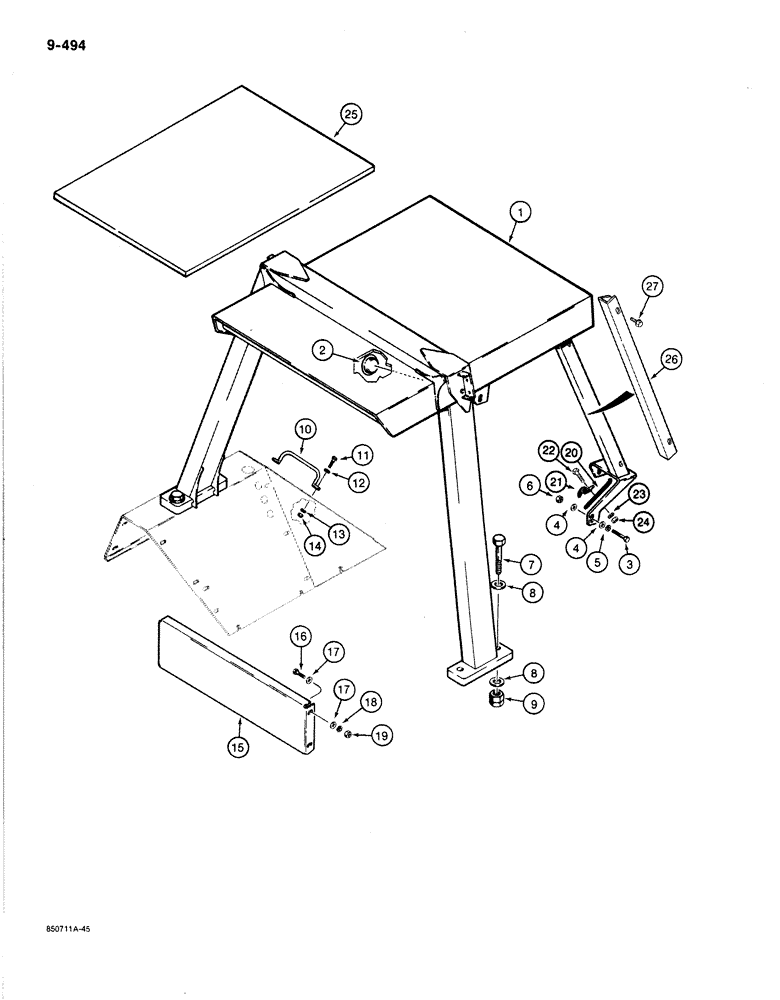

Запчасти Case 780C (9-494) - ROPS CANOPY AND REAR CLOSURE PANEL (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

ROPS CANOPY - machinery item, order from the Machinery Price List

1шт.

2

205-72

HOLE PLUG BUTTON,3"

button, (76 mm) diameter, steel 3"

2шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

4

95-6

WASHER,3/8"

8шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

7

26-2076

BOLT,Hex, 1-1/4" - 7 x 4-3/4", Gr 8

hex head, 1-1/4" - 7 NC x 4-3/4", grade 8

4шт.

8

196-62

WASHER,1 5/16" x 1 63/64" x .180", HDN

flat, 1-1/4", hardened, plated

8шт.

9

131-1223

LOCK NUT,1 1/4"-7, GC

4шт.

10

L73545

HANDLE

grab, canopy, rear left-hand

1шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12

195-104

WASHER,3/8"

flat, , plated 3/8"

2шт.

13

192-21

LOCK WASHER,3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

15

L103520

PANEL ASSY.

SPARE PART rear closure, used with ROPS canopy only

1шт.

16

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

17

195-104

WASHER,3/8"

flat, , plated 3/8"

8шт.

18

192-21

LOCK WASHER,3/8"

4шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

20

L105943

HOSE ASSY.

harness cover, see Figure 4-112 for ROPS canopy harness, use on models with 24 volt electrical circuit

1шт.

21

49855

CLAMP

hose, if used

2шт.

22

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used

2шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

If used

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

If used

2шт.

25

D124147

PAD

noise reduction, canopy roof

2шт.

26

D138576

COVER

post, harness, see Figure 4-114 for ROPS canopy harness, use on modles with 12 volt electrical circuit

1шт.

27

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

hex washer head, self-tapping, 1/4" - 20 NC x 1/2"

4шт.

345-44

ADHESIVE

for attaching pads to metal surfaces, spray can, 23 fl ounces (680 ml), not shown

1шт.
