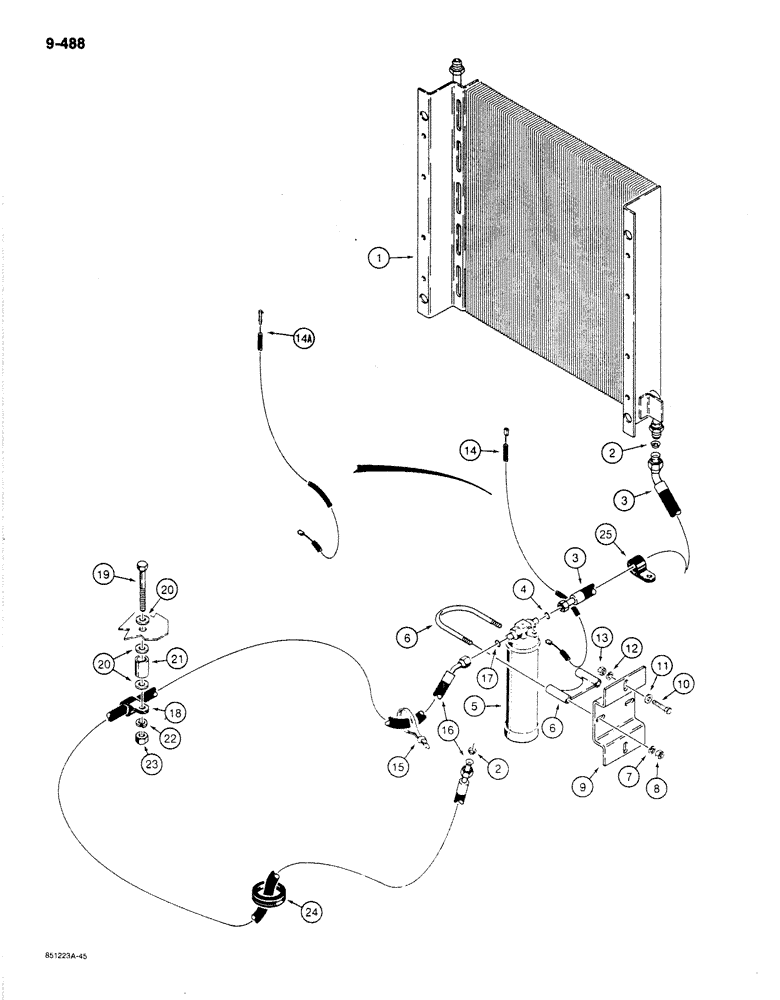

Запчасти Case 780C (9-488) - AIR CONDITIONING SUPPLY LINES, CONDENSER TO RECEIVER-DRIER & CAB (09) - CHASSIS/ATTACHMENTS

1

A171978

CONDENSER

refrigerant cooler, attaches to radiator support with radiator mounting hardware

1шт.

2

222-993

GASKET,3/8 Tube, Fl, Copper

Supply hose

2шт.

3

L112589

HOSE ASSY.

condenser to receiver-drier, Includes: Ref. 4

1шт.

4

A61198

O-RING,0.07" Thk x 0.301" ID, -11

hose

1шт.

5

A76312

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning

1шт.

6

L72884

CLAMP

ASSEMBLY - reciever drier, Includes: Ref. 7 and 8

1шт.

7

192-43

WASHER,3/8"

2шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

9

L111587

BRACKET

receiver-drier

1шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

11

195-104

WASHER,3/8"

flat, , plated 3/8"

2шт.

12

192-43

WASHER,3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

14

L111634

HARNESS

air conditioning, receiver-drier to compressor, used on models with 24 volt electrical circuit

1шт.

14a

D137821

ELECTRICAL WIRE

SPARE PART HARNESS - air conditioning, receiver-drier to compressor, used on models with 12 volt electrical circuit

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

16

D131192

HOSE ASSY.

, Serial Range: receiver-drier-cab

1шт.

17

A61198

O-RING,0.07" Thk x 0.301" ID, -11

hose

1шт.

18

49855

CLAMP

hose, under floorplate, double-clamp with return hose

1шт.

19

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

20

195-103

WASHER,5/16"

3шт.

21

D36524

BUSHING

clamp

1шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

1шт.

24

D132291

GROMMET

SPARE PART hoses, in floor plate

1шт.

25

T50103

CLAMP

hose from condenser to receiver-drier, uses radiator support mounting hardware

1шт.
